Z 1202B (80183) - Snapper Zero-Turn Mower, 12hp Deck Lift Parts, 12 H.P. Model Parts Diagram

Zero-Turn Mower, 12hp

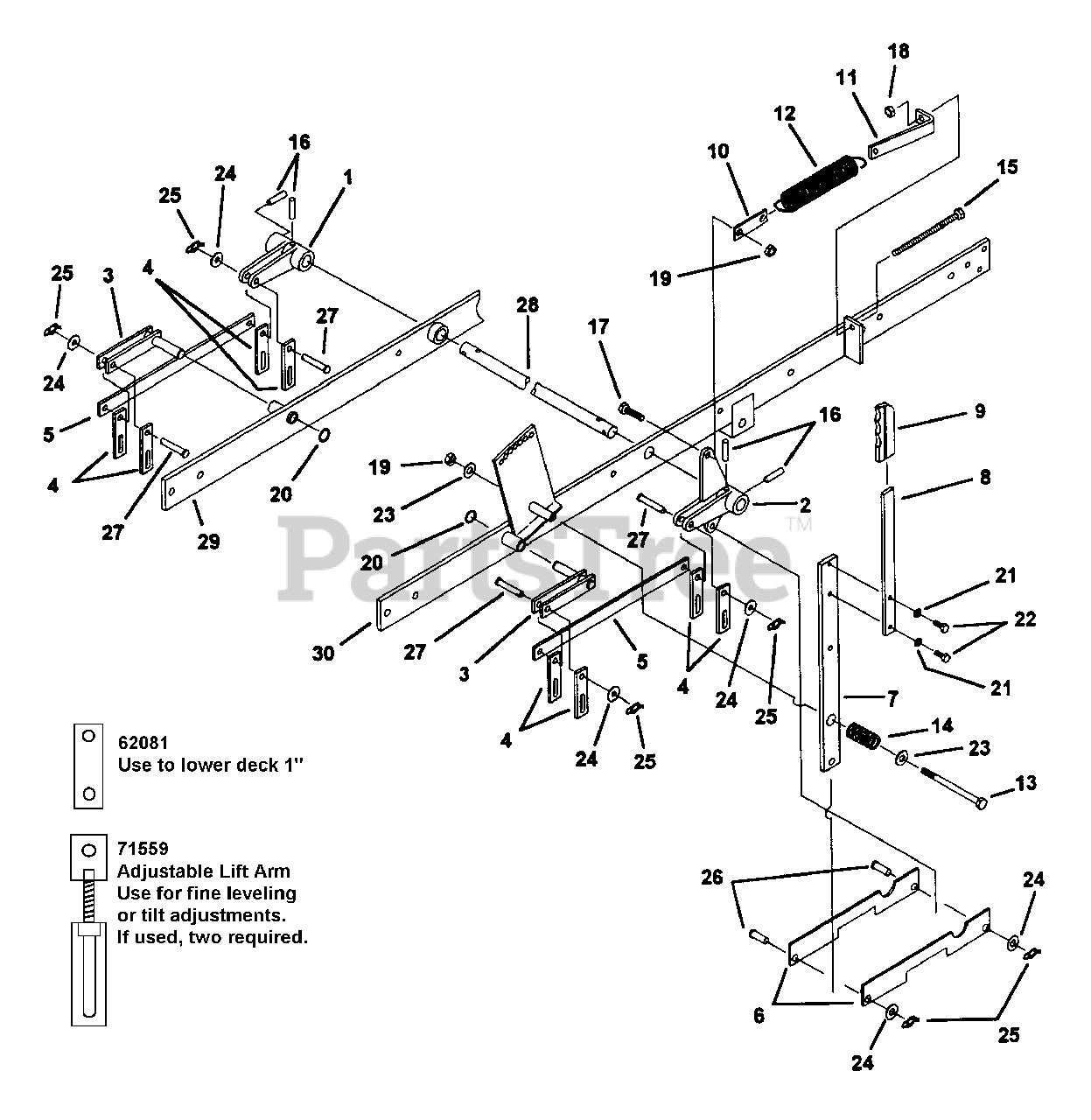

Deck Lift Parts, 12 H.P. Model Parts Diagram

  • Title

1

Snapper 7079659

LIFT SLEEVE WELDMENT, R.H.

$

$

Currently unavailable

2

Snapper 7079658

LIFT SLEEVE WELDMENT, L.H
(Superseded to 7079658YP)

$99.99

$

Usually ships in 2-12 days

0

3

Snapper 7079894

DECK HANGER WELDMENT

$

$

Not available

4

Snapper 7079131

DECK HANGER BAR
(Superseded to 7079131YP)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 7079893

BAR, CONNECTING

$

$

Currently unavailable

6

Snapper 7079930

HANDLE LINK 41" DECK

$

$

Currently unavailable

7

Snapper 7079929

DECK LIFT ARM WELDMENT 41" DECK

$

$

Currently unavailable

8

Snapper 7079740

TOP, DECK HANDLE

$

$

Not available

9

Snapper 7079860

GRIP, HANDLE
(Superseded to 7079860YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7079981

SPRING EXTENSION
(Superseded to 7079981YP)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 7079803

SPRING TIGHTENER
(Superseded to 7079803YP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper 7079368

SPRING
(Superseded to 7079368YP)

$49.99

$

Usually ships in 2-12 days

0

13

Snapper 7090590

BOLT, 3/8-16 X 3" GR. 5
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7079799

SPRING, COMPRESSION .975 O.D.
(Superseded to 7079799YP)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 7027169

BOLT, 3/8-16 X 5" FULL THREAD
(Superseded to 7027169YP)

Note: Was 79833 or 91132

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 7079827

ROLL PIN, 5/16 X 1-1/4" HBK

$

$

Currently unavailable

17

Snapper 7091328

BOLT, 3/8-16 X 1-1/4" GR. 5
(Superseded to 703871)

Note: Was 90587

$4.99

$

In Stock, only 1 left!

0

18

Snapper 90190

NUT, 3/8-16 UNC-213

$

$

Currently unavailable

19

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

Note: Was 79844

$3.49

$

In Stock, only 2 left!

0

21

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

22

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

23

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

24

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7091593

COTTER RUE RING 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 19

0

26

Snapper 7029687

CLEVIS PIN, 3/8 X 1"
(Superseded to 7029687YP)

Note: Was 79834

$7.99

$

In Stock, only 1 left!

0

27

Snapper 7029841

CLEVIS PIN, 5/16 X 1-3/4"
(Superseded to 704029)

Note: Was 79298

$4.49

$

In Stock, Qty 6

0

28

Snapper 7079695

LIFT BAR
(Superseded to 7079695YP)

$46.99

$

Usually ships in 2-12 days

0

29

Snapper 7079647

FRAME SIDE WELDMENT, R.H.

$

$

Currently unavailable

30

Snapper 7079646

FRAME SIDE WELDMENT, L.H.

$

$

Currently unavailable

62081

Snapper 7062081

BAR, DECK HANGER

$

$

Not available

71559

Snapper 7071559

ARM, LIFT, ADJUSTABLE

$

$

Currently unavailable
