Z 142 (967924601-00) - Husqvarna 42" Zero-Turn Mower (2018-09) HYDRAULIC PUMP - MOTOR Parts Diagram

42" Zero-Turn Mower

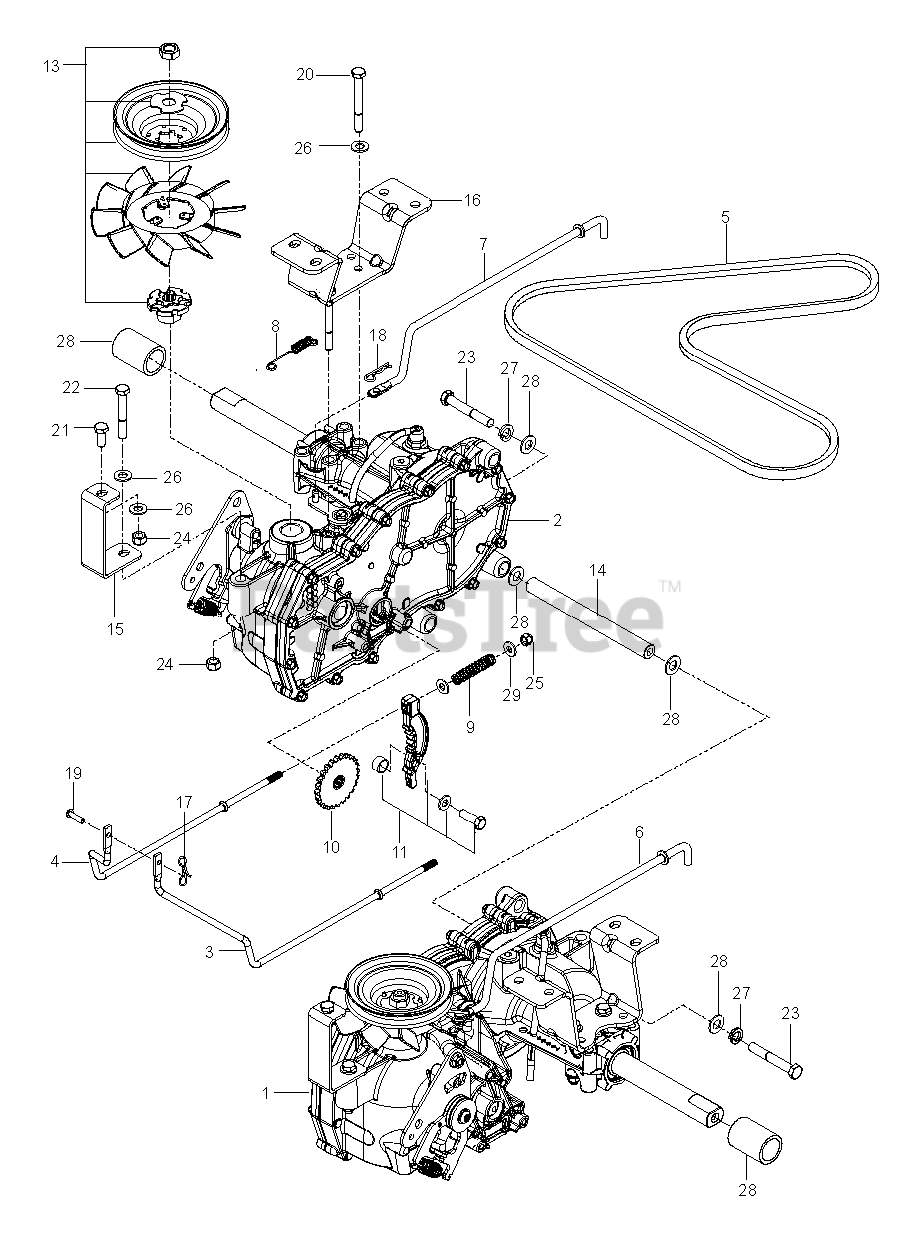

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

1

Husqvarna 596247401

TRANSMISSION EZT; DD; LONG; LE

$1823.99

$

Usually ships in 3-10 days

0

2

Husqvarna 596247402

TRANSMISSION EZT; DD; LONG; RI

$1823.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574030501

LINKAGE.BRAKE.LT
(Superseded to 596930401)

$9.49

$

In Stock, Qty 6

0

4

Husqvarna 574030502

LINKAGE, BRAKE RT

$

$

Not available

5

Husqvarna 539110411

BELT, HYDRO PUMP

$28.99

$

In Stock, Qty 17

0

6

Husqvarna 585474401

ROD.BYPASS.RZ.LH
(Superseded to 585474402)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585474501

ROD.BYPASS.RHT
(Superseded to 585474502)

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586665101

SPRING.ROD.BYPASS.EZT

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 539110342

SPRING

$

$

Not available

10

Husqvarna 539120080

HG_DISC COG BRAKE 51635

$37.99

$

In Stock, only 2 left!

0

11

Husqvarna 539120079

HG_KIT BRAKE ARM (EZT)

$39.99

$

In Stock, Qty 6

0

13

Husqvarna 501403602

KIT FAN/PULLEY 72137

$125.99

$

In Stock, only 2 left!

0

14

Husqvarna 510184104

SPACER TUBE EZT

$

$

Not available

15

Husqvarna 580806502

SUPPORT.FRONT.TRANS.PNTX431

$6.99

$

In Stock, Qty 7

0

16

Husqvarna 580806602

BRACKET.EZT.MOUNT.REAR.PNTX431

$20.99

$

In Stock, only 4 left!

0

17

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 587115301

PIN.CLEVIS.3/16X.475

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4
(Superseded to 596434801)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539990637

HCS 3/8C X 2 1/2

$4.99

$

In Stock, Qty 10

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

25

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0

27

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, only 2 left!

0
