Z 142 (967924801-00) - Husqvarna 42" Zero-Turn Mower (2018-10) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

42" Zero-Turn Mower

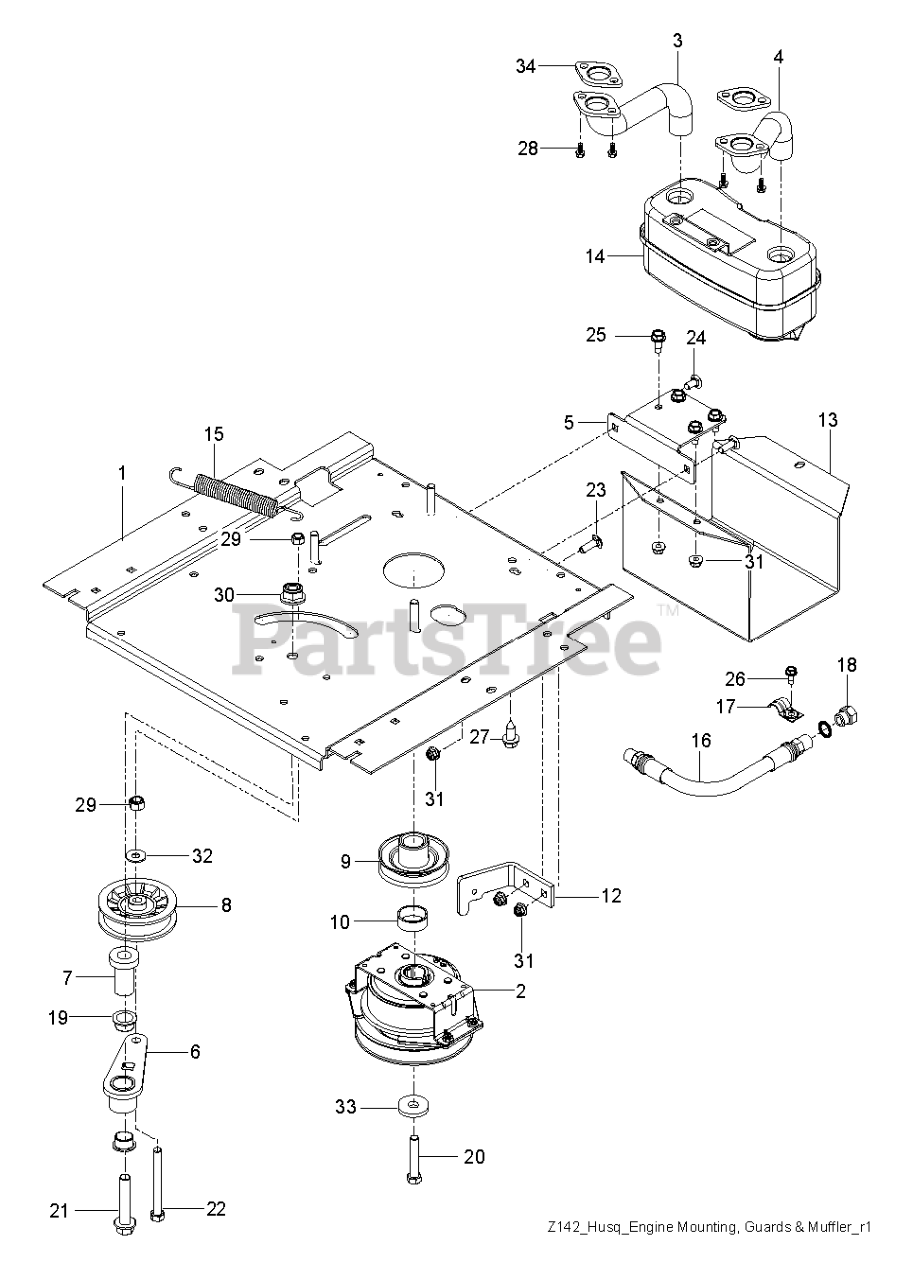

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

1

Husqvarna 593898602

PLATE ENGINE; RZ, 23IN BLACK
(Superseded to 598736102)

$107.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585521101

CLUTCH.105.FT-LBS

$454.99

$

In Stock, only 1 left!

0

3

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

$22.99

$

In Stock, only 3 left!

0

4

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

$27.99

$

In Stock, Qty 7

0

5

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 7

0

7

Husqvarna 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 587537401

PULLEY.ENGINE

$33.99

$

In Stock, Qty 14

0

10

Husqvarna 539112252

T & B SPACER
(Superseded to 596401101)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510246002

STOP, CLUTCH, BLACK

$8.49

$

In Stock, only 2 left!

0

13

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$23.99

$

In Stock, only 2 left!

0

14

Husqvarna 539131604

MUFFLER ASM TWIN

$53.99

$

In Stock, Qty 20+

0

15

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$39.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 585807101

PLUG OIL DRAIN

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.49

$

In Stock, Qty 6

0

21

Husqvarna 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5
(Superseded to 582539502)

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD
(Superseded to 596433901)

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 16

0

25

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD
(Superseded to 596637301)

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 9

0

28

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 13

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 20+

0

34

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.99

$

Usually ships in 3-10 days

0
