Z 142 - Husqvarna 42" Zero-Turn Mower (Original) MOWER LIFT / DECK LIFT Parts Diagram

42" Zero-Turn Mower

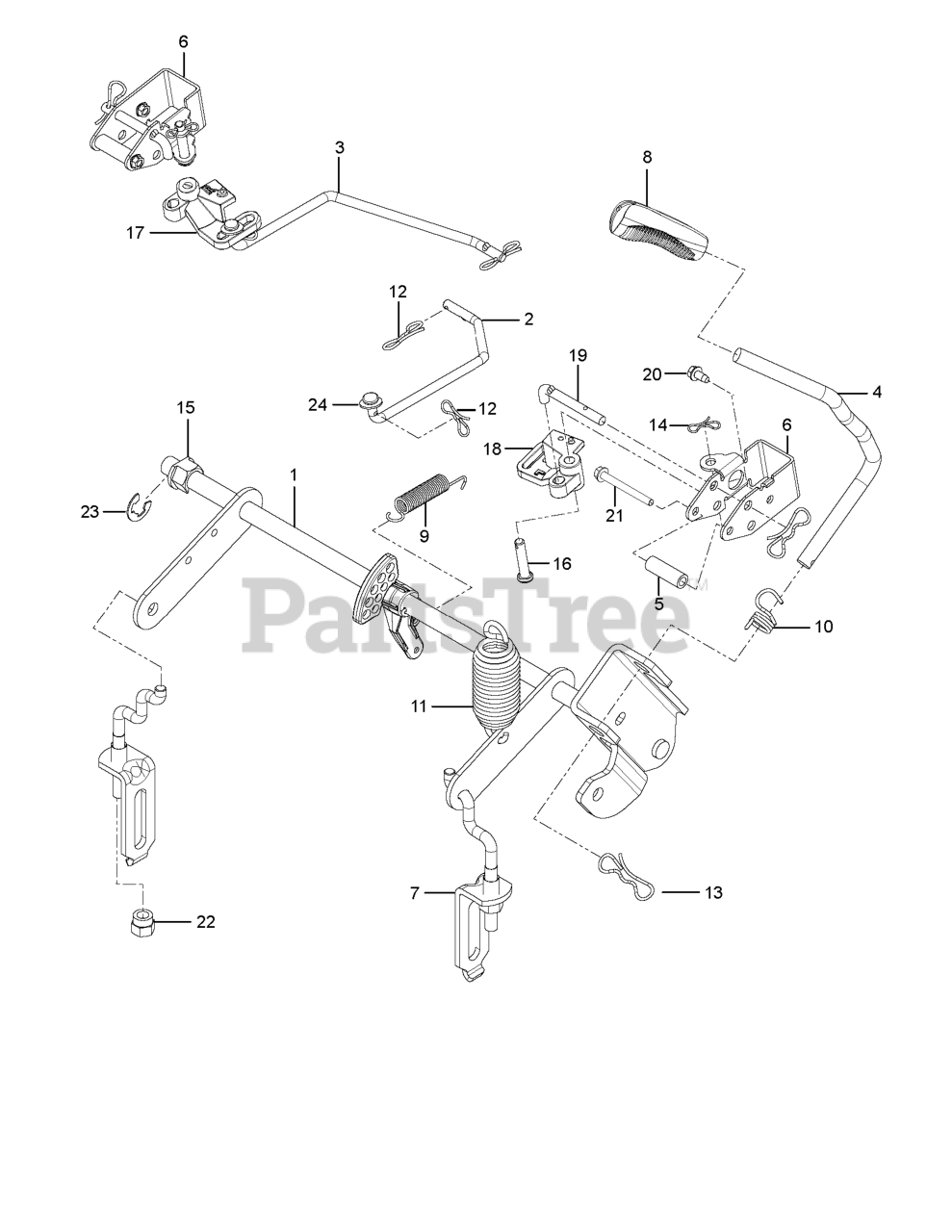

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

4

Husqvarna 586428701

HANDLE LIFT ZTR
(Superseded to 586428702)

Note: For 96792480100

$23.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 586457501

BELLCRANK.RH

$7.49

$

In Stock, Qty 18

0

13

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$17.99

$

In Stock, Qty 20+

0

21

Husqvarna 586561301

SCREW THD;ROLL;1/4-20 X 2.25

$2.49

$

In Stock, only 4 left!

0

20

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539118762

SPRING
(Superseded to 596482001)

$8.49

$

In Stock, Qty 9

0

1

Husqvarna 586429702

SHAFT ASSY DECK LIFT WELDMENT

$71.99

$

In Stock, Qty 11

0

5

Husqvarna 580486101

SPACER.334.ID.5.OD.1.5.L
(Superseded to 580486102)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$3.49

$

In Stock, only 3 left!

0

6

Husqvarna 585682102

BRACKET.BELLCRANK.PBRAKE X431

$7.99

$

In Stock, only 2 left!

0

9

Husqvarna 586867601

RETURN.BRAKE.PARK.AUTO
(Superseded to 547190203)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 585701401

PIN.5.16X1.5

$3.49

$

In Stock, only 4 left!

0

22

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 585682001

ROD.PUSH.BRAKE

$3.99

$

In Stock, Qty 14

0

15

Husqvarna 510184901

PLASTIC NUT

$5.99

$

In Stock, only 4 left!

0

24

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 587622901

LIFT.LEVER.ASM.RZ.SERVICE

Note: For 96792460100

$17.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$4.99

$

In Stock, Qty 8

0

23

Husqvarna 812000002

RETAINING RING LT

$3.99

$

In Stock, only 4 left!

0

3

Husqvarna 586457201

LINK.BRAKE.PARK.UPPER.RH

$14.99

$

In Stock, only 2 left!

0

18

Husqvarna 586457401

BELLCRANK.LH

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.99

$

In Stock, only 3 left!

0

2

Husqvarna 586457101

LINK.BRAKE.PARK.UPPER.LH

$11.99

$

In Stock, only 4 left!

0
