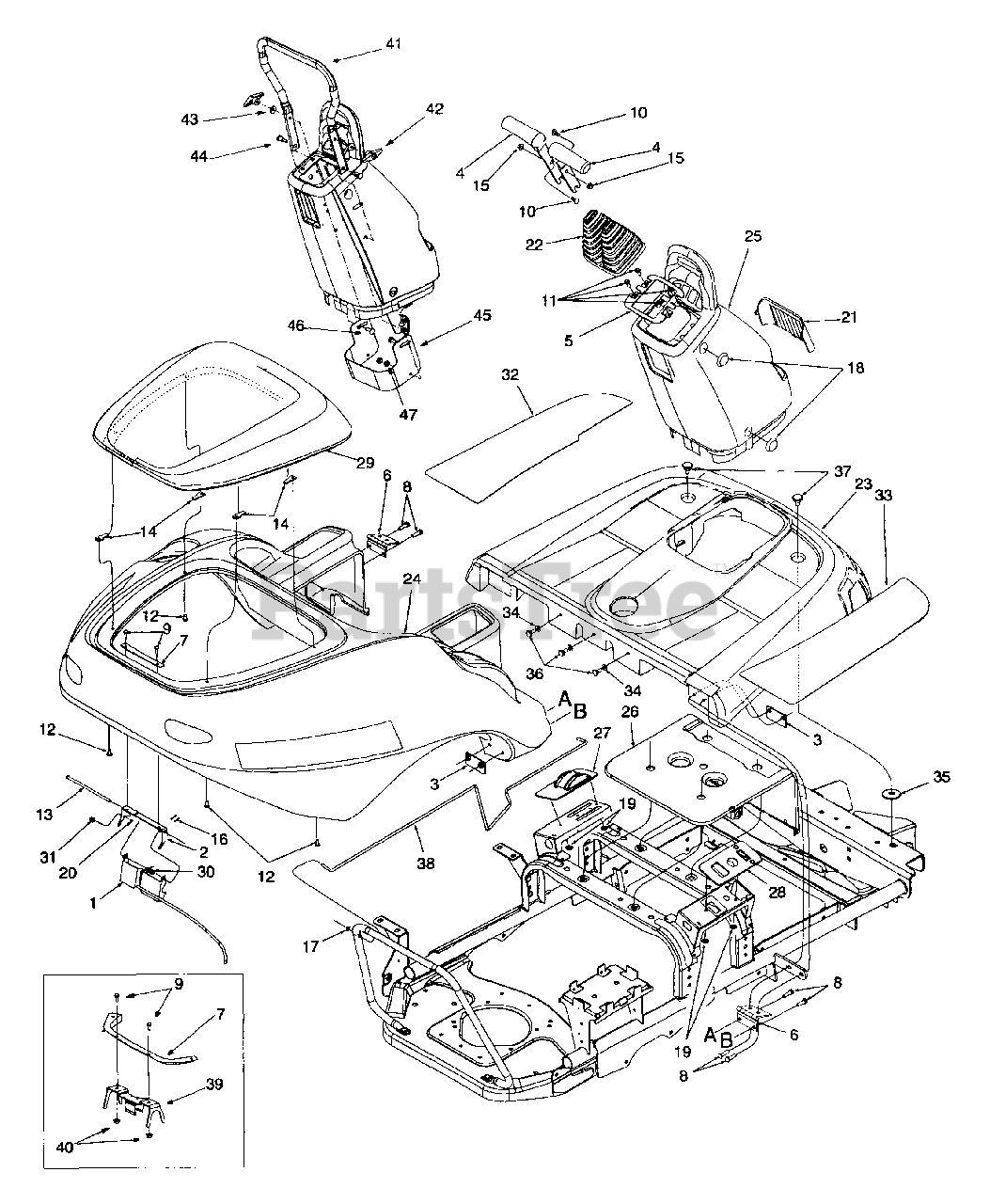

Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Body Cover Panels Parts Diagram

42" Zero-Turn Mower

Body Cover Panels Parts Diagram

  • Title

1

White Outdoor 603-0347

Handle Ass'y, Latch

$

$

Not available

2

White Outdoor 603-0467

Bracket, Latch

Variations

White Outdoor 603-0467-0637

BRACKET-LATCH - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0578

Plate Ass'y, Body Mounting

$

$

Not available

4

White Outdoor 631-3005

Handle, Control

$

$

Not available

5

White Outdoor 703-2648

Bracket, Bellow Retainer

Variations

White Outdoor 703-2648-0637

BRACKET-RETAINER, BELLOWS - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 703-2928

Hinge, Body

$

$

Not available

7

White Outdoor 703-3078

Plate, Latch Mounting
(Superseded to 703-3078A)

$

$

Not available

8

White Outdoor 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

9

White Outdoor 710-0425

Screw, Pan Hd, #10-24 x .625

$4.49

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0642

Screw, Hex Wash. Hd. Tap 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0946

Screw, Truss Machine 1/4-20 x .625 GR2

$3.49

$

Usually ships in 3-6 days

0

13

White Outdoor 711-1092

Rod, Latch Mounting

$

$

Not available

14

White Outdoor 712-0185

Nut, U-Type Speed, 1/4-20

$

$

Not available

15

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

16

White Outdoor 714-0127

Pin, Cotter, 1/16 x .75

$

$

Not available

17

White Outdoor 726-0106

Push Cap, 1/4

$3.99

$

Usually ships in 3-6 days

0

18

White Outdoor 726-0289

Plug, Button

$

$

Not available

19

White Outdoor 726-3047

Push Nut
(Superseded to 926-3047)

$3.99

$

In Stock, only 4 left!

0

20

White Outdoor 728-0117

Rivet, Pop, .125 Dia

$3.49

$

Usually ships in 3-6 days

0

21

White Outdoor 731-3128A

Lens, Headlight

$

$

Not available

22

White Outdoor 731-0050

Bellow, Control

$

$

Not available

23

White Outdoor 731-0051

Body, Front Floor

Note: Includes Ref. No. 32 & 33

$

$

Not available

24

White Outdoor 731-0052

Body, Rear Engine Compartment

$

$

Not available

25

White Outdoor 731-0053

Console

$

$

Not available

26

White Outdoor 731-0055

Cover, Seat Base

$

$

Not available

27

White Outdoor 731-0056

Cover, LH Control Panel
(Superseded to 731-3195B)

$

$

Not available

28

White Outdoor 731-0057

Cover, RH Control Panel

$

$

Not available

29

White Outdoor 731-0054

Cover, Engine

$

$

Not available

30

White Outdoor 732-0848

Spring, Torsion

$

$

Not available

31

White Outdoor 732-0830

Clip, Spring
(Superseded to 932-0830)

$

$

Not available

32

White Outdoor 735-0259

Pad, Floor LH

$

$

Not available

33

White Outdoor 735-0260

Pad, Floor RH

$

$

Not available

34

White Outdoor 736-0275

Washer, Flat

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 736-3039

Washer, Flat, .406 x 1.5 x .110

$4.99

$

In Stock, Qty 18

0

36

White Outdoor 738-0140

Bolt, Shoulder

$5.49

$

In Stock, Qty 17

0

37

White Outdoor 738-3163A

Bolt, Shoulder, .75 x .245:3/8-16

$

$

Not available

38

White Outdoor 747-3303

Rod, Prop Support

$

$

Not available

39

White Outdoor 603-0643

Clip Spring Bracket Assembly

$

$

Not available

40

White Outdoor 712-3027

Hex Nut Lock Flange 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 749-3081

Cruise Control Tube

Variations

White Outdoor 749-3081-0637

No Longer Available TUBE-CRUISE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 720-0241

Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0242

Bell Wash .340 ID

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 738-0754

Shoulder Screw .437 Dia .54

$3.99

$

In Stock, only 2 left!

0

45

White Outdoor 703-3288

Control Tube Mount Bracket

Variations

White Outdoor 703-3288-0637

BRACKET-CONTROL TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 710-0276

Carriage Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0
