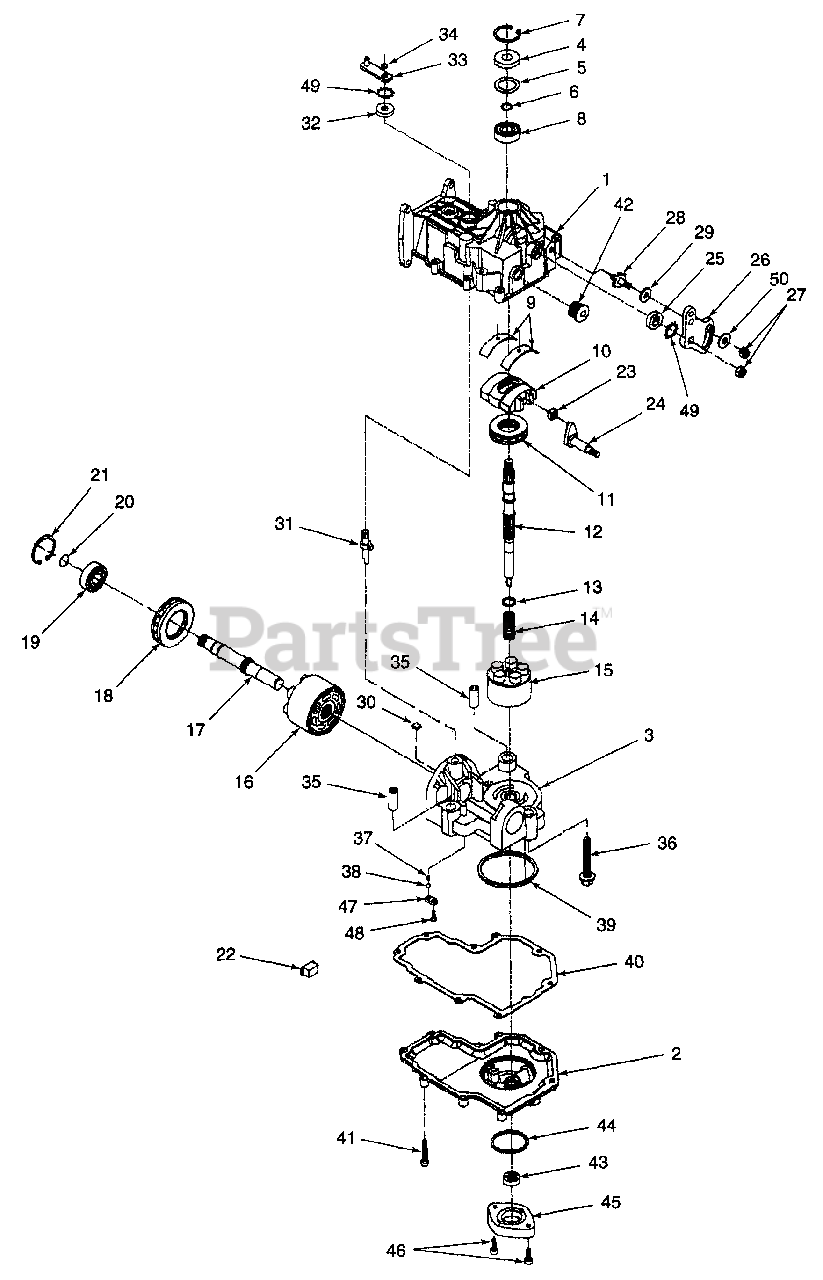

Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Hydrostatic Transmission Parts Diagram

42" Zero-Turn Mower

Hydrostatic Transmission Parts Diagram

  • Title

White Outdoor 717-3402

Transmission Ass'y, Hydro
(Superseded to 917-3455)

$

$

Not available

1

White Outdoor HG-70304

Housing Ass'y, Upper

$

$

Not available

2

White Outdoor HG-50301

Housing, Lower

$

$

Not available

3

White Outdoor HG-70299

Center Section Assembly
(Superseded to HG-70708)

$

$

Not available

4

White Outdoor HG-9008000-0128

Seal, Lip

$20.99

$

In Stock, only 2 left!

0

5

White Outdoor HG-2003018

Spacer

$10.99

$

Usually ships in 3-6 days

0

6

White Outdoor HG-2003016

Ring, Wire Retaining

$8.49

$

Usually ships in 3-6 days

0

7

White Outdoor HG-2003052

Ring, Retaining

$8.49

$

Usually ships in 3-6 days

0

8

White Outdoor HG-2003043

Bearing, Sall
(Superseded to HG-2003043P)

$78.99

$

Usually ships in 3-6 days

0

9

White Outdoor HG-2003023

Bearing, Cradle
(Superseded to HG-52619)

$13.99

$

Usually ships in 3-6 days

0

10

White Outdoor HG-2003087

Swashplate, Variable

$233.99

$

Usually ships in 3-6 days

0

11

White Outdoor HG-50551

Bearing, Thrust
(Superseded to HG-50551P)

$31.99

$

Usually ships in 3-6 days

0

12

White Outdoor HG-50303

Shaft, Input

$

$

Not available

13

White Outdoor HG-2003017

Washer, Block Thrust

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor HG-2003014

Spring, Block

$4.99

$

Usually ships in 3-6 days

0

15

White Outdoor HG-70079

Block Assembly, Cylinder
(Superseded to HG-70331)

$199.99

$

Usually ships in 3-6 days

0

16

White Outdoor HG-70082

Block Assembly, Cylinder
(Superseded to HG-72159)

$112.99

$

Usually ships in 3-6 days

0

17

White Outdoor HG-50304

Shaft, Output (Motor)

$

$

Not available

18

White Outdoor HG-50552

Bearing, Thrust
(Superseded to HG-53341)

$39.99

$

Usually ships in 3-6 days

0

19

White Outdoor 741-0361

Bearing, Ball
(Superseded to 941-0361)

$52.99

$

In Stock, only 2 left!

0

20

White Outdoor HG-2000022

Ring, Wire Retaining

$4.99

$

Usually ships in 3-6 days

0

21

White Outdoor HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor HG-50649

Retainer, Motor Bearing

$

$

Not available

23

White Outdoor HG-2000015

Guide, Slot

$22.99

$

Usually ships in 3-6 days

0

24

White Outdoor HG-50807

Arm, Trunnion

$

$

Not available

25

White Outdoor HG-9008000-0126

Seal, Lip

$16.99

$

Usually ships in 3-6 days

0

26

White Outdoor HG-50733

Arm, Control

$

$

Not available

27

White Outdoor 712-0237

Nut, Hex Lock, 6-24

$5.49

$

Usually ships in 3-6 days

0

28

White Outdoor HG-50426

Stud, Short, 5/16-24

$15.99

$

Usually ships in 3-6 days

0

29

White Outdoor HG-50281

Puck, Friction

$

$

Not available

30

White Outdoor HG-2003554

Plate, Bypass
(Superseded to HG-70680)

$

$

Not available

31

White Outdoor HG-2003555

Actuator, Bypass

$

$

Not available

32

White Outdoor HG-45074

Seal, Lip

$

$

Not available

33

White Outdoor HG-50270

Arm, Bypass

$

$

Not available

34

White Outdoor HG-44870

Ring, Retaining

$

$

Not available

35

White Outdoor HG-50002

Pin

$7.99

$

Usually ships in 3-6 days

0

36

White Outdoor HG-50016

Screw

$5.49

$

Usually ships in 3-6 days

0

37

White Outdoor HG-2000029

Spring, Charge Relief

$

$

Not available

38

White Outdoor HG-9001214-2500

Ball

$

$

Not available

39

White Outdoor HG-50578

O-Ring

$

$

Not available

40

White Outdoor HG-50331

Gasket

$13.99

$

In Stock, only 1 left!

0

41

White Outdoor HG-44876

Screw, Self Tapping

$4.49

$

In Stock, only 2 left!

0

42

White Outdoor HG-9005110-8700

Plug, Drain

$41.99

$

Usually ships in 3-6 days

0

43

White Outdoor HG-50273

Gerotor Assembly

$38.99

$

Usually ships in 3-6 days

0

44

White Outdoor HG-9004101-1340

O-Ring

$4.99

$

Usually ships in 3-6 days

0

45

White Outdoor HG-50260

Cover, Gerotor

$

$

Not available

46

White Outdoor HG-50095

Screw

$

$

Not available

47

White Outdoor HG-50651

Plate, Relief

$

$

Not available

48

White Outdoor HG-50653

Screw

$2.99

$

Usually ships in 3-6 days

0

49

White Outdoor HG-50650

Ring, Retaining

$

$

Not available

50

White Outdoor 736-0371

Washer

$4.99

$

In Stock, only 1 left!

0
