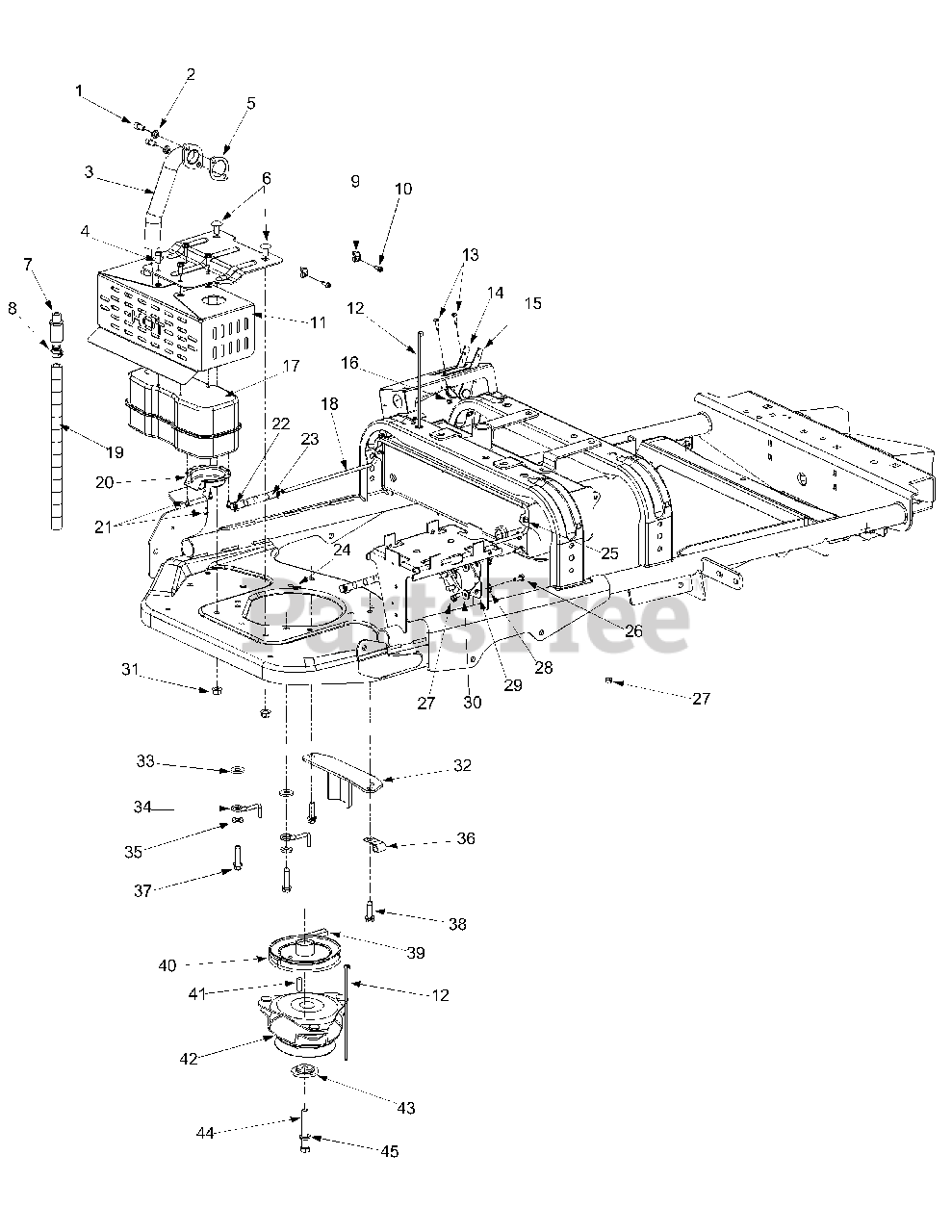

Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower Muffler, Controls & PTO Clutch Parts Diagram

42" Zero-Turn Mower

Muffler, Controls & PTO Clutch Parts Diagram

  • Title

1

White Outdoor 710-1314

Cap Screw 5/16-18
(Superseded to 710-1314A)

$4.99

$

In Stock, Qty 20+

0

2

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

$80.99

$

In Stock, only 2 left!

0

4

White Outdoor 710-0642

Hex Washer Screw 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 751-3140

Oil Drain
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 20+

0

8

White Outdoor 751-3142

Oil Drain Cap

$4.99

$

In Stock, Qty 10

0

9

White Outdoor 751B213146

Throttle Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, Qty 12

0

10

White Outdoor 710-1237

Hex Washer Screw #10-32 x .625

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 703-3004

Muffler Bracket
(Superseded to 703-3004-0637)

Variations

White Outdoor 703-3004-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3009

Screw #10-24 x .75

$7.99

$

Usually ships in 3-6 days

0

14

White Outdoor 746-3074

Throttle Cable Control 32"

$

$

Not available

15

White Outdoor 746-3073

Choke Cable Control 32.25"

$

$

Not available

16

White Outdoor 712-0161

Hex Lock Nut #10 - 24

$4.99

$

In Stock, Qty 17

0

17

White Outdoor 751-0617

Muffler
(Superseded to 951-0617C)

$158.99

$

In Stock, Qty 10

0

18

White Outdoor 749-3048

Fuel Line

$

$

Not available

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 18

0

20

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, Qty 12

0

21

White Outdoor 710-0148

Hex Washer Screw #8-32 x .375

$4.49

$

In Stock, Qty 10

0

22

White Outdoor 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

23

751-0535

Fuel Line Hose

$

$

Not available

24

White Outdoor 736-0607

Lock Washer 5/16

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 725-1711

Retainer Clip

$

$

Not available

26

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x .620

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-0291

Hex Lock Nut 1/4-20

$4.99

$

In Stock, only 4 left!

0

28

White Outdoor 736-3006

Lock Washer 1/4 ID x 3/4 OD

$6.49

$

Usually ships in 3-6 days

0

29

White Outdoor 725-3001

Solenoid
(Superseded to 925-3001)

$62.99

$

In Stock, Qty 19

0

30

White Outdoor 736-0270

Bell Washer .265 ID x .75 OD

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

32

White Outdoor 603-0317

Clutch Retainer Ass’y

Variations

White Outdoor 603-0317-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 747-3362

Rear Belt Retainer Rod

$

$

Not available

35

White Outdoor 736-3010

Flat Washer .407 ID x .812 OD

$4.99

$

In Stock, Qty 14

0

36

White Outdoor 726-3008

Heat Shield Cable Clip

$5.49

$

Usually ships in 3-6 days

0

37

White Outdoor 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.99

$

In Stock, Qty 16

0

38

White Outdoor 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, Qty 11

0

39

White Outdoor 754-3076

V-Belt
(Superseded to 954-3076)

$71.99

$

Usually ships in 3-6 days

0

40

White Outdoor 756-3060

Pulley
(Superseded to 756-3060A)

$103.99

$

Usually ships in 3-6 days

0

41

White Outdoor 714-0128

Key

$4.99

$

In Stock, Qty 6

0

42

White Outdoor 717-3467

Electric Clutch

$830.99

$

In Stock, only 1 left!

0

43

White Outdoor 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0510

Hex Cap Screw 7/16-20 x 3.0

$11.99

$

In Stock, Qty 6

0

45

White Outdoor 736-0171

Lock Washer 7/16

$4.99

$

In Stock, Qty 17

0
