Z-180 L (53AC265K190) - White Outdoor 54" Zero-Turn Mower 54" Deck Assembly Parts Diagram

54" Zero-Turn Mower

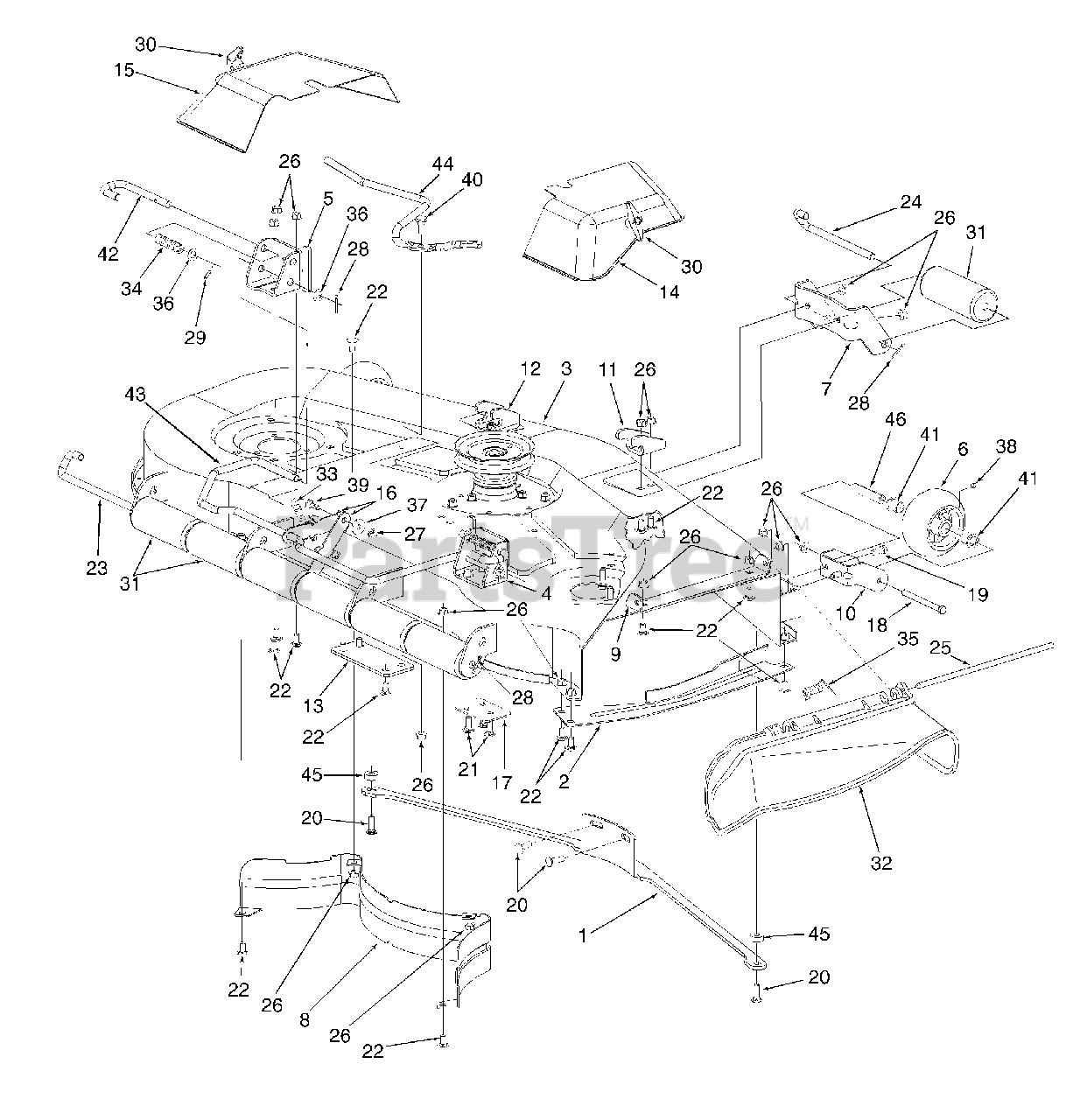

54" Deck Assembly Parts Diagram

  • Title

1

White Outdoor 603-0144

Bar, 54" Front

Variations

White Outdoor 603-0144-0637

BAR-54" FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0144-0498

BAR-54" FRONT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0144-0648

BAR-54" FRONT - TECH GRAY (0648)

$

$

Not available

$

$

2

White Outdoor 603-0149-0648

Guard, Finger
(Superseded to 703-3511B-0637)

$74.99

$

In Stock, Qty 20+

0

3

White Outdoor 603-0325-0648

Housing Ass'y, 54" Mower Deck

$

$

Not available

White Outdoor 777-1426

Label, Danger, Top Rt. of Deck
(Superseded to 977-1426)

$

$

Not available

White Outdoor 777-9192B

Label, Deck Safety, Top Lt. of Deck
(Superseded to 777S30018)

$9.49

$

In Stock, Qty 9

0

4

White Outdoor 603-0350-0648

Bracket, Rear Hanger RH

$

$

Not available

5

White Outdoor 603-0351-0648

Bracket, Rear Hanger LH

$

$

Not available

6

White Outdoor 634-3159

Wheel Ass'y, 5" Deck

Note: [Includes Ref. Nos. 38 & 41 (Qty. 2)]

$36.99

$

In Stock, Qty 20+

0

7

White Outdoor 703-2091A-0648

Bracket, Front Roller
(Superseded to 703-2091A-0637)

$76.99

$

Usually ships in 3-6 days

0

8

White Outdoor 703-2093

Baffle, Rear Inner
(Superseded to 703-2093C)

Variations

White Outdoor 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$102.99

$

In Stock, Qty 15

0

White Outdoor 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$102.99

$

In Stock, Qty 15

0

$95.99

$

Usually ships in 3-6 days

0

9

White Outdoor 703-2392

Bracket, Chute Mtg.
(Superseded to 631-04070C)

Variations

White Outdoor 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$130.99

$

In Stock, Qty 12

0

White Outdoor 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$130.99

$

In Stock, Qty 12

0

White Outdoor 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$130.99

$

In Stock, Qty 12

0

$130.99

$

In Stock, Qty 12

0

10

White Outdoor 703-2410-0648

Bracket, Deck Wheel
(Superseded to 703-2410-0637)

$

$

Not available

11

White Outdoor 703-2430-0648

Bracket, Front Deck - RH
(Superseded to 703-2430-0637)

$

$

Not available

12

White Outdoor 703-2767-0648

Bracket, Front Deck - LH

$

$

Not available

13

White Outdoor 703-2791

Plate, Idler Support

Variations

White Outdoor 703-2791-0637

No Longer Available PLATE SUPT. IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

14

White Outdoor 703-2816-0648

Cover, Belt - RH

$

$

Not available

15

White Outdoor 703-2817-0648

Cover, Belt - LH
(Superseded to 703-2817-0637)

$

$

Not available

White Outdoor 777-5607

Label, Belt Install. - Under Cover

$

$

Not available

16

White Outdoor 703-2929-0648

Link, Deck Support

$

$

Not available

17

White Outdoor 703-2988

Plate, Support

Variations

White Outdoor 703-2988-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 710-0944

Screw, Hex Cap, 3/8-16 x 4.25 GR5

$11.99

$

In Stock, Qty 11

0

19

White Outdoor 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 5

0

20

White Outdoor 710-3034

Bolt, Carriage, 3/8-16 x 1.25 GR5

$4.49

$

In Stock, only 3 left!

0

21

White Outdoor 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 711-1103

Pin, Roller

$

$

Not available

24

White Outdoor 711-3314

Pin, Roller, 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

25

White Outdoor 711-3318

Hinge Pin

$

$

Not available

26

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 714-0115

Pin, Cotter 1/8 x 1.0

$4.49

$

In Stock, only 2 left!

0

29

White Outdoor 715-3003

Pin, Spirol Spring, 3/16 x 3/4

$7.49

$

In Stock, Qty 6

0

30

White Outdoor 720-0241

Knob, Wingnut, 5/16-18
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

31

White Outdoor 731-3005

Roller, Front & Rear

$30.99

$

In Stock, Qty 20+

0

32

White Outdoor 731-3131

Deflector, Plastic Chute
(Superseded to 931-3131A)

$114.99

$

In Stock, only 4 left!

0

White Outdoor 777-1584

Label, Danger Cut Finger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 732-0395

Spring, Extension
(Superseded to 932-0395)

$

$

Not available

34

White Outdoor 732-0802

Spring, Compression

$4.99

$

In Stock, only 3 left!

0

35

White Outdoor 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 2 left!

0

36

White Outdoor 736-0160

Washer, Flat, .536 x .93 x .05

$4.49

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0231

Washer, Flat, .344 x 1.125 x .12

$4.99

$

In Stock, Qty 19

0

38

White Outdoor 737-0280

Grease Fitting

$8.49

$

In Stock, only 4 left!

0

39

White Outdoor 738-0296

Bolt, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 738-0380

Bolt, Shoulder, .50 x .267:3/8-16

$8.49

$

In Stock, Qty 20+

0

41

White Outdoor 741-0487A

Bearing, Flange
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0

42

White Outdoor 747-3013

Pin, Mower Support

$22.99

$

In Stock, only 2 left!

0

43

White Outdoor 747-3297A

Rod, Deck Support

$

$

Not available

44

White Outdoor 747-3306

Rod, Idler Spring Mtg

$

$

Not available

45

White Outdoor 750-3119

Spacer, .406 x 1.0 x .38

$12.99

$

In Stock, Qty 5

0

46

White Outdoor 750-3193

Spacer, Wheel

$19.99

$

In Stock, Qty 20+

0
