Z-180 L (53AC265K190) - White Outdoor 54" Zero-Turn Mower

54" Zero-Turn Mower

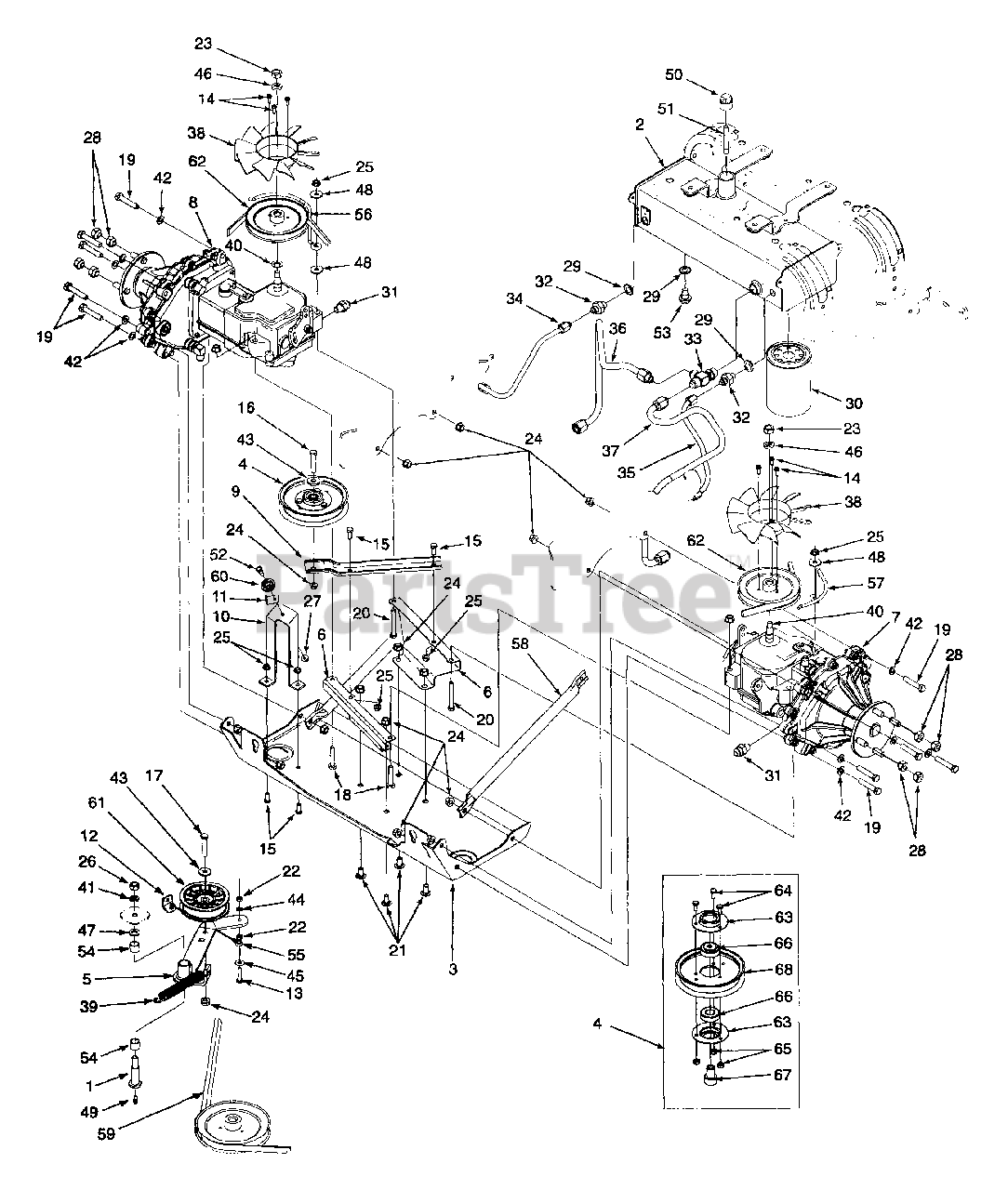

Z-180 L (53AC265K190) - White Outdoor 54" Zero-Turn Mower > Parts Diagrams (22) > Hydraulic Drive, Lines And Filter Mfg. Date 7-1-97 Thru 4-19-98

  • Title
738-3108

1

Shoulder Bolt, Special

Part# 738-3108 (Superseded to 738-05004)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.66

603-0344

2

Tank Ass'y, Hydraulic

Part# 603-0344

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TANK ASSY:HYDRAULIC

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

737-3055

Oil, Drive System

Part# 737-3055 (Superseded to 737-3120)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.05

603-0358B

3

Plate Ass'y, Skid

Part# 603-0358B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE ASSY-SKID

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

603-0362

4

Pulley Ass'y, Idler 5.0 in.

Part# 603-0362 (Superseded to 903-0362)

OEM Warranty Repair Part for White Outdoor

Not available

603-0377A

5

Arm Ass'y, Idler

Part# 603-0377A

Note: Includes Ref. No. 54 (2)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ARM ASSY-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

603-0450

6

Support Ass'y, Pump

Part# 603-0450

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ASSY: SUPPORT PUMP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

7

Transmission Ass'y RH

Part#

Note: See Component Lists

Not available

8

Transmission Ass'y LH

Part#

Note: See Component Lists

Not available

703-2888

9

Bracket, Idler

Part# 703-2888

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

703-3168

10

Bracket, Pulley Mounting

Part# 703-3168

OEM Warranty Repair Part for White Outdoor

Not available

703-3169

11

Bracket, Cable Retainer

Part# 703-3169

OEM Warranty Repair Part for White Outdoor

Not available

703-3174

12

Bracket, Cable Mtg.

Part# 703-3174

OEM Warranty Repair Part for White Outdoor

Not available

710-0428

13

Screw, Hex Cap 1/4-28 x 1.25 GR5

Part# 710-0428

OEM Warranty Repair Part for White Outdoor

Not available

710-1189

14

Screw, Hex Wash. Hd. Tapp #12-24 x .62

Part# 710-1189

OEM Warranty Repair Part for White Outdoor

Not available

710-3006

15

Screw, Hex Cap 5/16-18 x .75 GR5

Part# 710-3006

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

710-3011

16

Screw, Hex Cap 3/8-16 x 2-1/4 GR5

Part# 710-3011

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.14

710-0347

17

Screw, Hex Cap 3/8-16 x 1-3/4 GR5

Part# 710-0347

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.52

710-3103

18

Screw, Hex Cap 5/16-18 x 2.0 GR5

Part# 710-3103

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-3144

19

Screw, Hex Cap 3/8-16 x 2.0 GR5

Part# 710-3144

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-3156

20

Screw, Hex Cap 5/16-18 x 2.50 GR5

Part# 710-3156

OEM Warranty Repair Part for White Outdoor

Not available

710-3178

21

Bolt, Carriage, 3/8-16 x .75

Part# 710-3178

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

712-0138

22

Nut, Hex, 1/4-28

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Not available

712-0333

23

Nut, Hex, 1/2-20

Part# 712-0333 (Superseded to 912-0333)

OEM Warranty Repair Part for White Outdoor

Not available

712-0431

24

Nut, Hex Flange Lock, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

712-3004A

25

Nut, Hex Flange Lock, 5/16-18 GR5

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3019

26

Nut, Hex, 7/16-14

Part# 712-3019 (Superseded to 912-3019)

OEM Warranty Repair Part for White Outdoor

Not available

712-0117

27

Nut, Hex Lock, 1/4-28

Part# 712-0117 (Superseded to 912-0117)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.02

712-3050

28

Nut, Lug, 7/16-14

Part# 712-3050

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

721-0223

29

Seal, Drain Plug

Part# 721-0223 (Superseded to 921-0223)

OEM Warranty Repair Part for White Outdoor

Not available

723-3071

30

Filter Element, Oil

Part# 723-3071

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $52.97

727-3100

31

Fitting, Connector, 1/2 x 3/8

Part# 727-3100 (Superseded to 01002606)

OEM Warranty Repair Part for White Outdoor

Not available

727-3116

32

Fitting, Connector

Part# 727-3116

OEM Warranty Repair Part for White Outdoor

Not available

727-3118

33

Fitting, Tee, 1/2 x 1/2 x 3/4

Part# 727-3118

OEM Warranty Repair Part for White Outdoor

Not available

727-3120

34

Tube, Inlet LH

Part# 727-3120

OEM Warranty Repair Part for White Outdoor

Not available

727-3121

35

Tube, Inlet RH

Part# 727-3121

OEM Warranty Repair Part for White Outdoor

Not available

727-3122

36

Tube, Outlet LH

Part# 727-3122

OEM Warranty Repair Part for White Outdoor

Not available

727-3123

37

Tube, Outlet RH

Part# 727-3123

OEM Warranty Repair Part for White Outdoor

Not available

731-1449A

38

Fan, 10 Blade

Part# 731-1449A (Superseded to 931-1449A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.44

732-0478

39

Spring, Extension

Part# 732-0478 (Superseded to 932-0478)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.18

732-0729

40

Wire Ring

Part# 732-0729

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

736-0171

41

Washer, Lock, 7/16

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.10

736-0185

42

Washer, Flat, .406 x .75 x .06

Part# 736-0185 (Superseded to 936-0185)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0256

43

Washer, Flat, .385 x 1.0 x .135

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

736-0329

44

Washer, Lock, 1/4 ID

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-0342

45

Washer, Flat, .283 x .75 x .030

Part# 736-0342

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

736-0921

46

Washer, Lock, 1/2

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

736-3015

47

Washer, Flat, .469 x .875 x .105

Part# 736-3015 (Superseded to 936-3015)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

736-3089

48

Washer, Flat, 5/16 x .934 x .100

Part# 736-3089

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

737-0280

49

Fitting, Grease

Part# 737-0280 (Superseded to 937-0280)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.48

737-3069

50

Plug, Pipe, W/Vent 3/4 NPTF

Part# 737-3069

OEM Warranty Repair Part for White Outdoor

Not available

737-3070

51

Tube, Dipstick

Part# 737-3070

OEM Warranty Repair Part for White Outdoor

Not available

738-0924

52

Bolt, Shoulder, 1/4-28: .375

Part# 738-0924 (Superseded to 738-0924A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

738-0940

53

Plug, Oil Drain

Part# 738-0940

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.65

741-3063

54

Bearing, Sleeve, .628 x .75 x .625

Part# 741-3063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.55

746-3080

55

Cable, Declutching

Part# 746-3080

OEM Warranty Repair Part for White Outdoor

Not available

747-3360

56

Rod, Belt Retaining RH

Part# 747-3360

OEM Warranty Repair Part for White Outdoor

Not available

747-3361

57

Rod, Belt Retaining LH

Part# 747-3361

OEM Warranty Repair Part for White Outdoor

Not available

749-3040

58

Strut, Frame

Part# 749-3040

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

STRUT:FRM

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

STRUT:FRM

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

Strut, Frame

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

754-3076

59

V- Belt, Transmission Drive A-Section x 54.24 Lg

Part# 754-3076 (Superseded to 954-3076)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $60.50

756-0625

60

Cable Roller

Part# 756-0625

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.90

756-0627

61

Pulley, Flat Idler 3.5 in.

Part# 756-0627 (Superseded to 756-0627D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.70

756-0974

62

Pulley, Transmission

Part# 756-0974

OEM Warranty Repair Part for White Outdoor

Not available

703-2907

63

Cup, Bearing

Part# 703-2907

OEM Warranty Repair Part for White Outdoor

Not available

710-0751

64

Screw, Hex Cap, 1/4-20 x .62 GR5

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0324

65

Nut, Hex Insert Lock, 1/4-20

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

741-0600

66

Bearing, Ball

Part# 741-0600 (Superseded to 941-0600)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.53

750-3176

67

Spacer, Idler

Part# 750-3176

OEM Warranty Repair Part for White Outdoor

Not available

756-3085

68

Pulley, Idler 5.0 in.

Part# 756-3085

OEM Warranty Repair Part for White Outdoor

Not available
