Z 1805KV (7080819) - Snapper Zero-Turn Mower, 18hp 18 & 22 HP Engine Assembly Parts Diagram

Zero-Turn Mower, 18hp

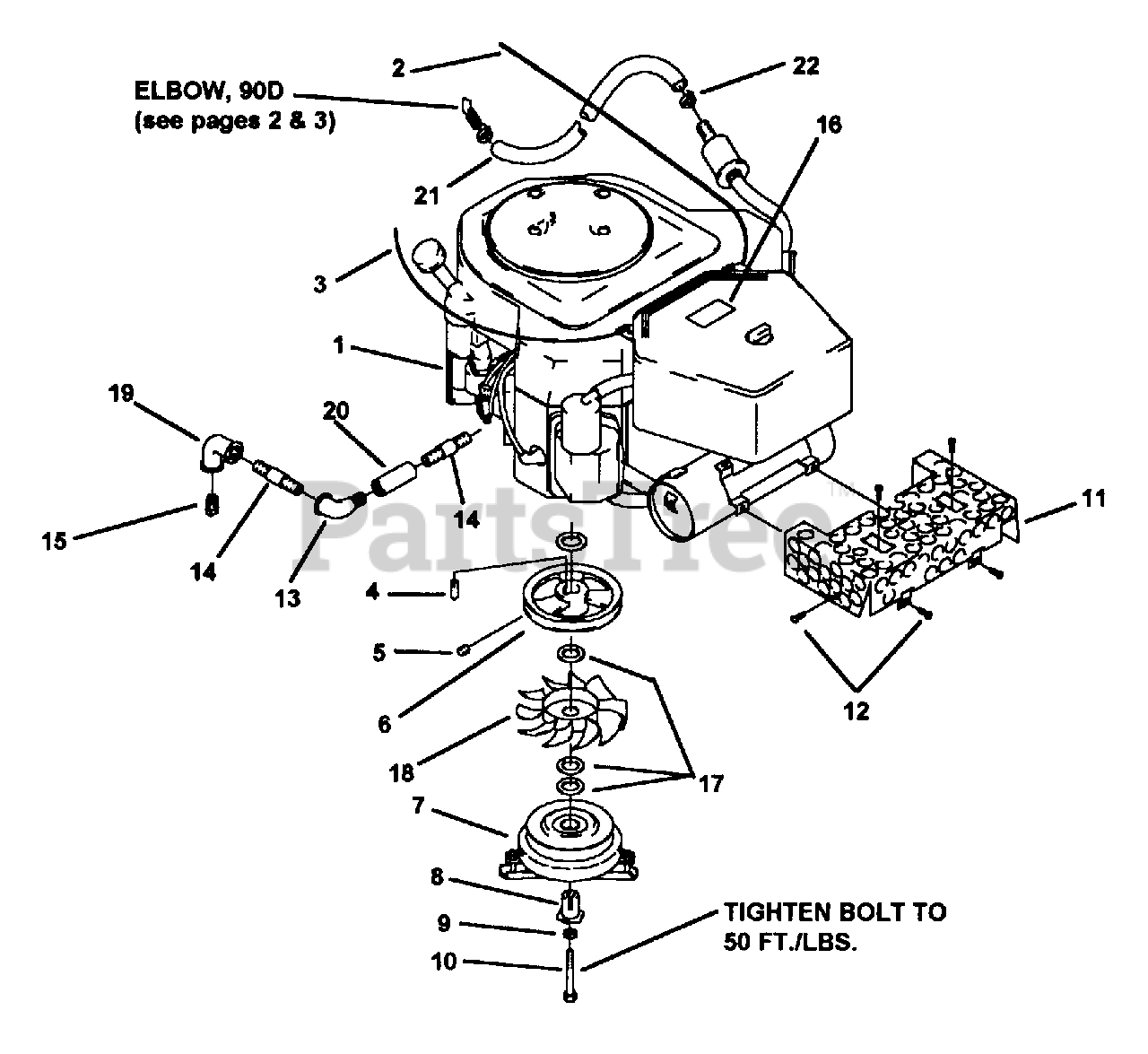

18 & 22 HP Engine Assembly Parts Diagram

  • Title

1

* ENGINE, 18.5HP KOHLER COMMAND OHV, VERTICAL SHAFT

$

$

Not available

1

Snapper CV22S-PS-67522

* ENGINE, 22HP KOHLER COMMAND OHV, VERTICAL SHAFT

$

$

Currently unavailable

2

Snapper 7062535

CABLE, THROTTLE 18 & 22 HP

$

$

Not available

3

Snapper 7079801

CABLE, CHOKE 18 & 22 HP

$

$

Not available

4

Snapper 7013250

KEY, SQUARE, 1/4" X 1"
(Superseded to 5050407X8SM)

Note: Was 79000

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7079823

SETSCREW, SOCKET HD., 5/16-18 X 3/8"
(Superseded to 7079823YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7079736

NLA - MOTOR DRIVE PULLEY, 1" BORE

$

$

Not available

7

Snapper 7079446

CLUTCH, ELECTRIC, 1" BORE
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

8

Snapper 7062460

BUSHING, CLUTCH

$

$

Currently unavailable

9

Snapper 7091301

LOCKWASHER, 7/16" SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 6

0

10

Snapper 7062263

CAPSCREW, 7/16-20 X 3-1/4" GR.5
(Superseded to 7062263YP)

$3.99

$

In Stock, only 1 left!

0

11

Snapper 7062508

MUFFLER GUARD, COMMAND ENGINE
(Superseded to 7062508YP)

$66.99

$

Usually ships in 2-12 days

0

12

Snapper 7079424

SCREW, SHEET METAL, #8 X 1/2"
(Superseded to 7079424YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7017420

ELBOW, STREET, 3/8", 90DEG. SCH 40

Note: Was 79852

$

$

Not available

14

Snapper 7062537

NLA - NIPPLE, 3/8 X 1 1/2 SCH. 40 BLACK

$

$

Currently unavailable

15

Snapper 7079367

PLUG, PIPE 3/8"

$

$

Not available

16

Snapper 7079237

DECAL, "PERIODICALLY CLEAN"
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

17

Snapper 7062242

WASHER, SHIM

$

$

Not available

18

Snapper 7062236

FAN, 7" DIA. 10 BLADE CW

$

$

Not available

19

Snapper 7079210

NLA - ELBOW, 3/8", 90 DEG. SCH 40 CAST IRON

$

$

Currently unavailable

20

Snapper 7062536

NLA - PIPE COUPLER, 3/8"

$

$

Currently unavailable

21

Snapper 7062429

NLA - FUEL LINE, 19" LONG

$

$

Not available

22

Snapper 7029900

CLAMP, HOSE SPRING TYPE 1/2" O.D.
(Superseded to 791850)

Note: Was 62475

$3.49

$

In Stock, Qty 20+

0
