Z 1805KV (7080819) - Snapper Zero-Turn Mower, 18hp Wiring Schematic Parts Diagram

Zero-Turn Mower, 18hp

Wiring Schematic Parts Diagram

  • Title

--

Snapper 7062547

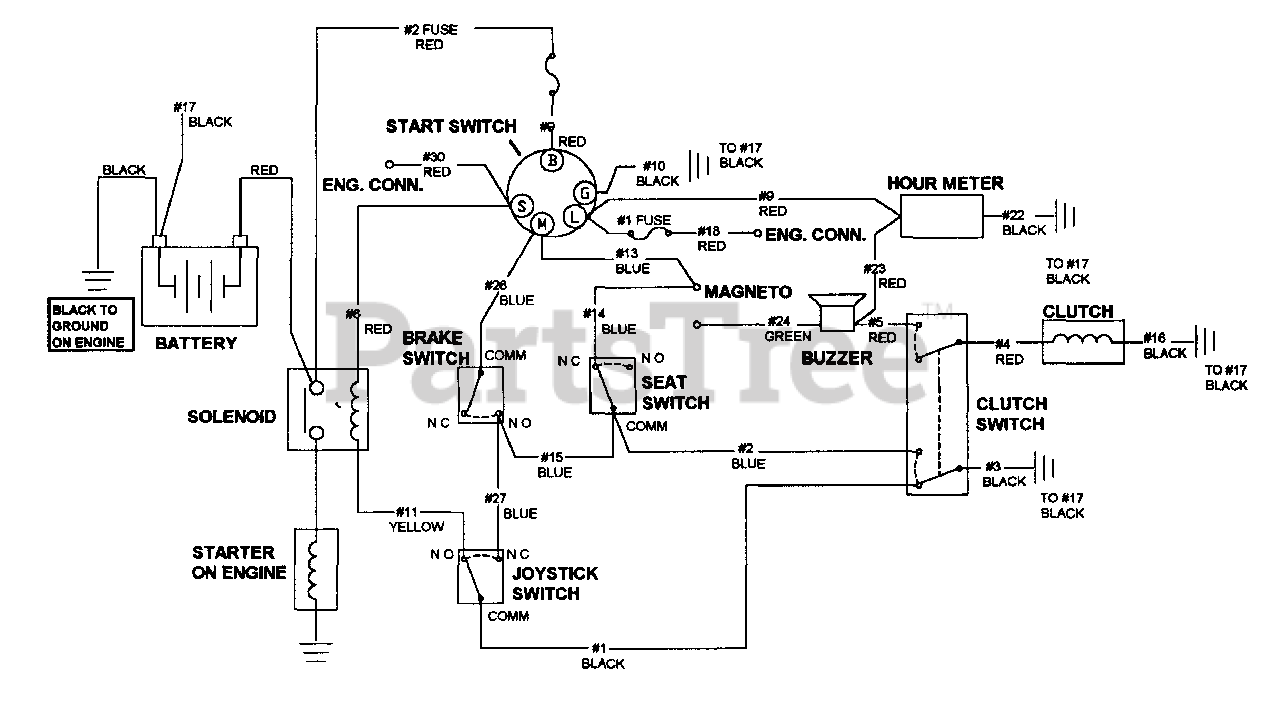

NLA - WIRE HARNESS SCHEMATIC, MAIN

$

$

Currently unavailable
