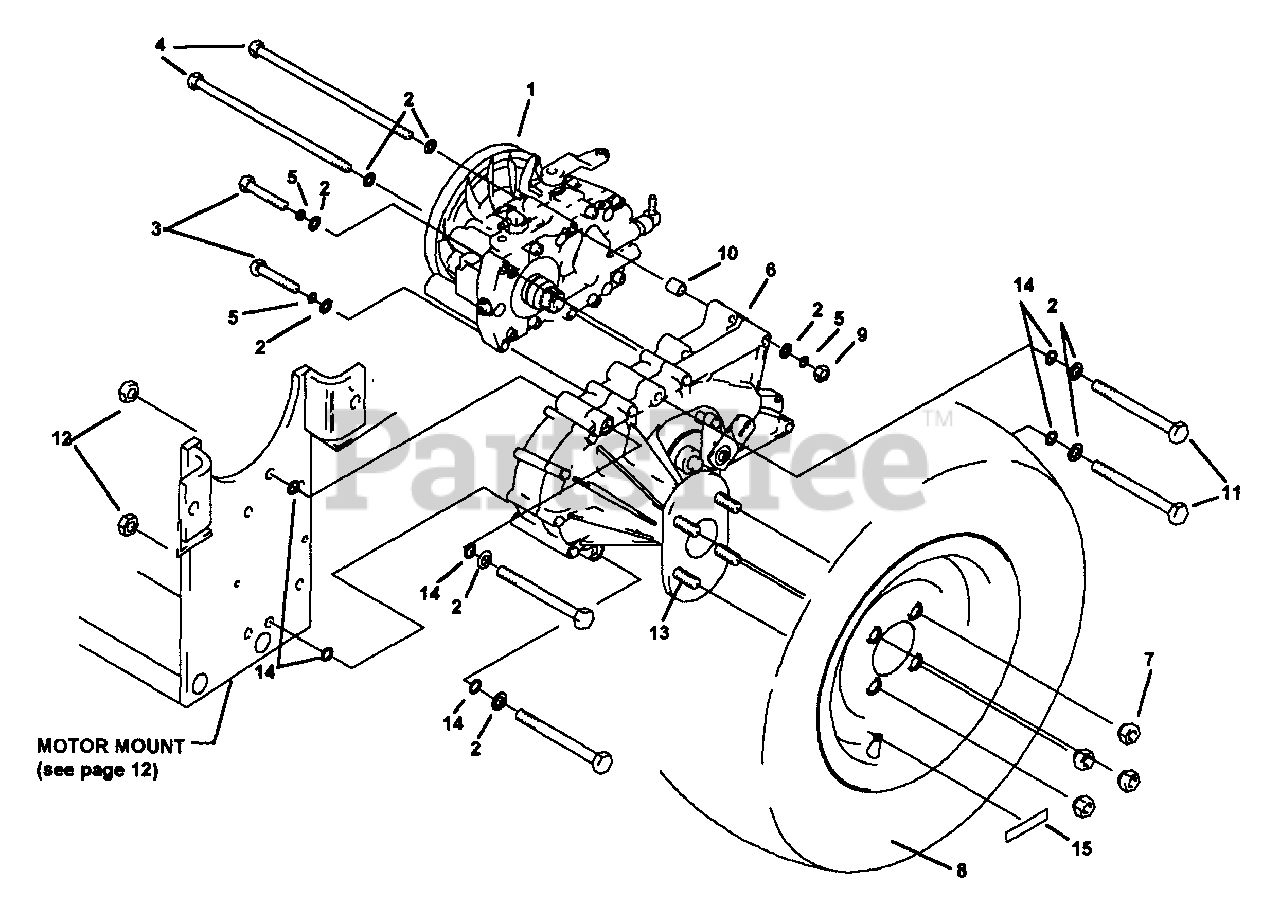

Z 1805KV (80819) - Snapper Zero-Turn Mower, 18hp Hydrostat/Gearbox Assembly Parts Diagram

Zero-Turn Mower, 18hp

Hydrostat/Gearbox Assembly Parts Diagram

  • Title

1

--

HYDROSTAT TRANSMISSION ASSEMBLY L.H.

Note: SEE "HYDROSTATE ASSEMBLY" ILLUSTRATION & PARTS LIST

$

$

Not available

1

--

HYDROSTAT TRANSMISSION ASSEMBLY R.H.

Note: SEE "HYDROSTATE ASSEMBLY" ILLUSTRATION & PARTS LIST

$

$

Not available

2

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7090669

BOLT, 5/16-18 X 1-3/4" GR.5
(Superseded to 7090669YP)

Note: Was 79824

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7079838

NLA - BOLT, 5/16-18 X 7-1/2" GR.5

$

$

Currently unavailable

5

Snapper 7079267

LOCKWASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7079815

TRANSAXLE, LH, 225-2500L

$

$

Not available

6

Snapper 7079814

TRANSAXLE, RH, 225-2500R (not shown)
(Superseded to 7079814YP)

$2019.99

$

Usually ships in 2-12 days

0

7

Snapper 7079293

NLA - NUT, LUG 60 DEGREE, 1/2-20

$

$

Currently unavailable

8

Snapper 7062278

TIRE, 20-10.00-10, 4 PLY W/RIM, DICO BRAND

$

$

Not available

9

Snapper 7079573

NUT, 5/16-18 PLAIN

$

$

Currently unavailable

10

Snapper 7079642

BUSHING/SPACER
(Superseded to 7079642YP)

$

$

Not available

11

Snapper 7079832

BOLT, 3/8-16 X 4" GR.5
(Superseded to 7079832YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7062302

LUG BOLT, 1/2-20 X 1-3/4

$

$

Not available

14

Snapper 7062496

NLA - O-RING, GEARBOX

$

$

Currently unavailable

15

Snapper 7062485

DECAL, TIRE PRESSURE

$

$

Currently unavailable

16

Snapper 7076934

BOLT, 5/16-18 X 3/4 GR.5 (not shown)
(Superseded to 7076934YP)

Note: Was 79315

$

$

Not available
