Z 1805KV (80819) - Snapper Zero-Turn Mower, 18hp Seat Support Assembly & Body Cover Parts Parts Diagram

Zero-Turn Mower, 18hp

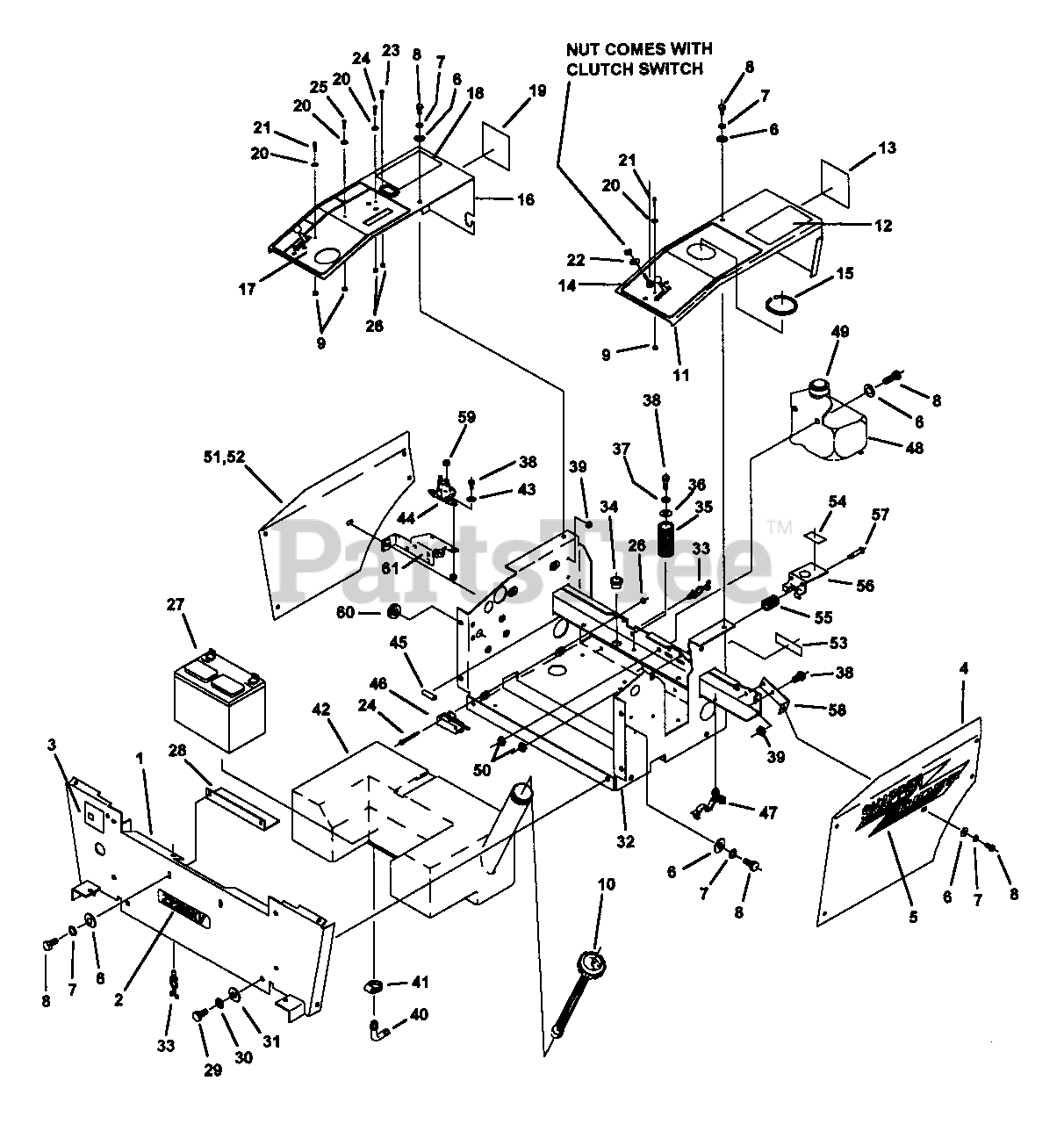

Seat Support Assembly & Body Cover Parts Parts Diagram

  • Title

1

Snapper 7062548

NLA - SEAT SUPPORT FRONT ASSEMBLY

$

$

Currently unavailable

2

Snapper 7062524

NLA - DECAL, Z1805KV 18 H.P MODEL

$

$

Currently unavailable

2

Snapper 7062525

NLA - DECAL, Z2205KV 22 H.P MODEL

$

$

Currently unavailable

3

Snapper 7062521

NLA - DECAL, START SWITCH

$

$

Not available

4

Snapper 7062543

FENDER SKIRT, LH (w/decals)

$

$

Currently unavailable

5

Snapper 7062522

NLA - DECAL, SNAPPER Z-RIDER

$

$

Currently unavailable

6

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7079267

LOCKWASHER, 5/16" HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR. 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7079828

NLA - LOCKNUT, #8-32 NYLOC

$

$

Currently unavailable

10

Snapper 7079858

FUEL GAUGE CAP
(Superseded to 7079858YP)

$76.99

$

Usually ships in 2-12 days

0

11

Snapper 7062546

NLA - FENDER CAP (w/decals) LH

$

$

Currently unavailable

12

Snapper 7100451

DECAL, CAUTION

Note: Was 79238

$

$

Currently unavailable

13

Snapper 7062516

DECAL, FREEWHEEL MACHINE

$

$

Not available

14

Snapper 7062520

NLA - DECAL, FENDER CAP L.H.

$

$

Not available

15

Snapper 7062058

TRIM, U-CHANNEL GAS TANK
(Superseded to 7062058YP)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7062543

FENDER CAP (w/decals) RH

$

$

Currently unavailable

17

Snapper 7062519

NLA - DECAL, FENDER CAP R.H.

$

$

Not available

18

Snapper 7079239

NLA - DECAL, CAUTION

$

$

Currently unavailable

19

Snapper 7062528

DECAL, HYDRO DRIVE BELT

$

$

Currently unavailable

20

Snapper 7079828

NLA - LOCKNUT, #8-32 NYLOC

$

$

Currently unavailable

21

Snapper 7079848

NLA - SCREW, MACHINE, #8-32 X 1/2"

$

$

Currently unavailable

22

Snapper 7079890

NLA - D-WASHER

$

$

Currently unavailable

23

Snapper 7079825

SCREW, MACHINE, #6-32 X 5/8"
(Superseded to 7079825YP)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 7079281

SCREW, MACHINE, #6-32 X 1"

$

$

Not available

25

Snapper 7079849

NLA - SCREW, MACHINE, #8-32 X 3/4"

$

$

Currently unavailable

26

Snapper 7079310

NLA - LOCKNUT, 06-32 NYLOC

$

$

Currently unavailable

27

Snapper 7079482

BATTERY 12 VOLT

$

$

Not available

28

Snapper 7079698

BATTERY CLAMP ANGLE

$

$

Not available

29

Snapper 7074467

NUT, HEX JAM, 3/4-16 UNF
(Superseded to 7074467SM)

Note: Was 79286

$4.49

$

In Stock, Qty 11

0

30

Snapper 7079268

LOCKWASHER, 3/8 HEAVY SPRING (B)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

31

Snapper 7090517

WASHER,FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

32

Snapper 7062443

SEAT SUPPORT WELDMENT

$

$

Currently unavailable

33

Snapper 7079864

BLINDHOLE KURLY, LOC
(Superseded to 7079864YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7079191

BUSHING, PLASTIC

$

$

Not available

35

Snapper 7079857

SEAT SPRING

$

$

Currently unavailable

36

Snapper 7079694

WASHER

$

$

Not available

37

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

38

Snapper 7091495

BOLT, 1/4-20 X 3/4 GR.5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

39

Snapper 7076978

LOCKNUT, 1/4-20 NYLOC
(Superseded to 703232)

Note: Was 79260 (Now 76978 + 90372)

$4.49

$

In Stock, Qty 20+

0

40

Snapper 7079853

ELBOW, 90D 1/4NPT X 1/4 BARB
(Superseded to 7079853YP)

$13.99

$

Usually ships in 2-12 days

0

41

Snapper 7079870

NLA - CLAMP, .31 MIN. X .87 MAX. HOSE DIA.

$

$

Currently unavailable

42

Snapper 7079856

FUEL TANK

$

$

Not available

43

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 11

0

44

Snapper 7079193

SOLENOID, STARTER, 12V. INT. GRD.
(Superseded to 7079193YP)

$42.99

$

Usually ships in 2-12 days

0

45

Snapper 7079897

EDGE GUARD

$

$

Currently unavailable

46

Snapper 7079194

SWITCH, ENCL, SPDT 15A HINGED LEVER

$

$

Not available

47

Snapper 7079854

FITTING 1/2" ROSE BUD CLIP
(Superseded to 7079854YP)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7062295

TANK, 1.5 QT. CHARGE PUMP

$

$

Not available

49

Snapper 7012155

CAP, OIL TANK
(Superseded to 7012155YP)

Note: Was 62247

$9.49

$

In Stock, only 1 left!

0

50

Snapper 7091298

NUT, HEX. 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 12

0

51

Snapper 7062544

FENDER SKIRT, RH (w/decals)

$75.99

$

In Stock, only 1 left!

0

52

Snapper 7062522

NLA - DECAL, SNAPPER Z-RIDER

$

$

Currently unavailable

53

Snapper 7062518

NLA - DECAL, TRANSMISSION OIL

$

$

Currently unavailable

54

Snapper 7062492

DECAL, "PULL TO RELEASE..."
(Superseded to 7062492YP)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper 7062483

SPRING, COMPRESSION, .5 O.D. X .625 X .65

$

$

Currently unavailable

56

Snapper 7062457

LATCH PLATE

$

$

Currently unavailable

57

Snapper 7090669

BOLT, 5/16-18 X 1-3/4" GR.5
(Superseded to 7090669YP)

Note: Was 79824

$4.49

$

In Stock, only 1 left!

0

58

Snapper 7062455

SKIRT BRACKET, FENDER

$

$

Not available

59

Snapper 7090789

NUT, 5/16-24 UNF, GR. 5 PLATED

Note: Was 79324

$

$

Not available

60

Snapper 7062473

NLA - GROMMET, RUBBER LAVELLE #917

$

$

Currently unavailable

61

Snapper 7062509

NLA - FENDER/SKIRT SOLENOID BRACKET

$

$

Currently unavailable
