Z 242 F (967271801-00) - Husqvarna 42" Zero-Turn Mower (2016-11) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

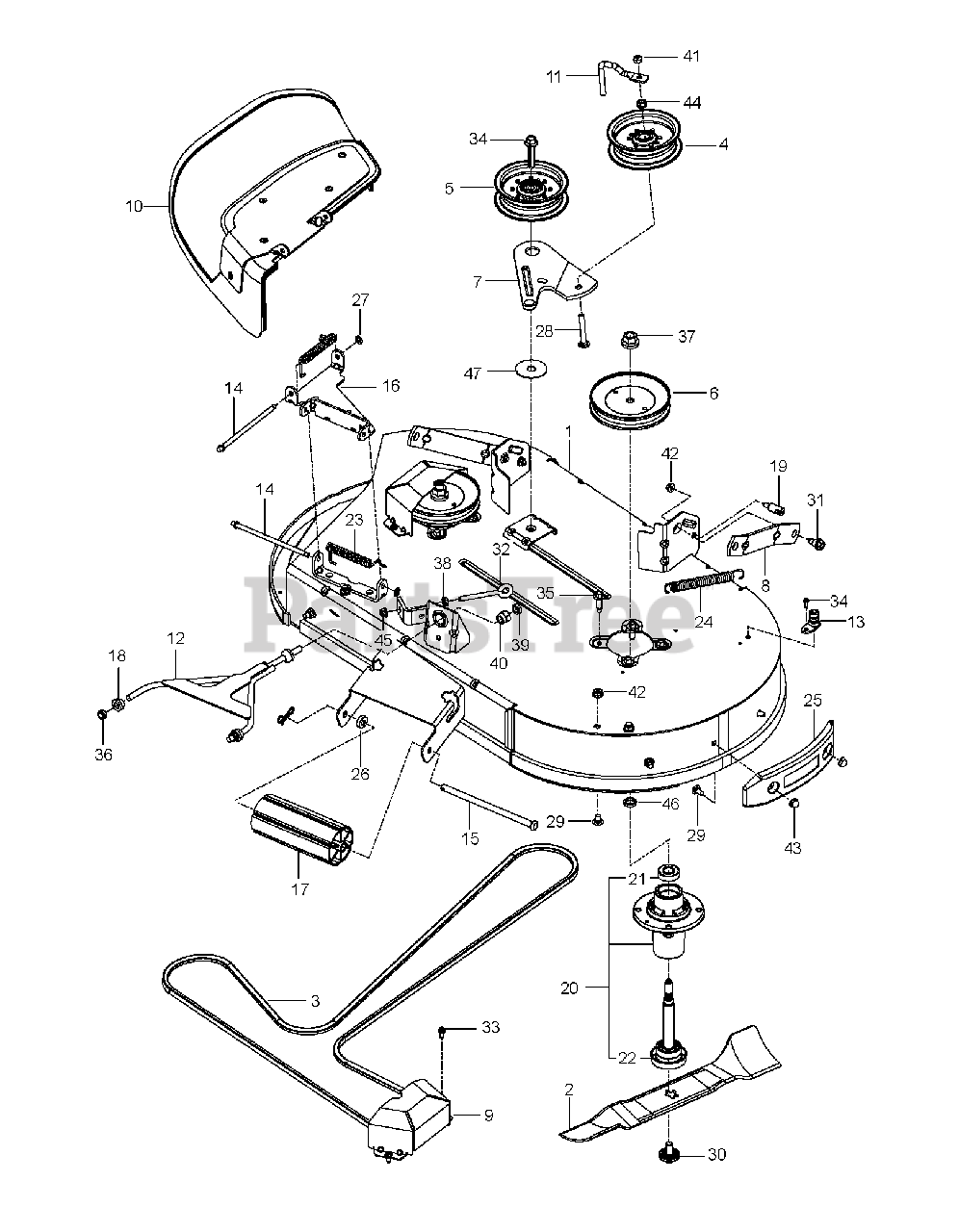

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 586979402

HOUSING.ASM.PNT.42.WELL.ZTR
(Superseded to 501016301)

$796.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$30.99

$

In Stock, Qty 20+

0

3

Husqvarna 587270001

BELT.42.FCS.ZTR.DECK.DRIVE

$72.99

$

In Stock, Qty 7

0

4

Husqvarna 532196106

PULLEY.IDLER.2006

$24.99

$

In Stock, Qty 20+

0

5

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$34.99

$

In Stock, Qty 20+

0

6

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

Usually ships in 3-10 days

0

7

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

In Stock, only 4 left!

0

9

Husqvarna 586936802

COVER.42".MANDREL.FCS X668

$6.99

$

In Stock, only 2 left!

0

10

Husqvarna 587305701

DEFLECTOR.ASM.42.FCS.ORANGE

$87.99

$

In Stock, Qty 13

0

11

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$8.99

$

In Stock, only 4 left!

0

12

Husqvarna 588610902

LINK.RZ.FRONT.WELDMENT.E-DIP

$53.99

$

In Stock, only 2 left!

0

13

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

14

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 586918002

BRACKET.42".FCS.DBLE.HINGEX668

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

18

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

$

$

Not available

19

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

20

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 20+

0

21

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

22

Husqvarna 532187291

SHAFT ASM MANDREL

$25.99

$

In Stock, Qty 20+

0

23

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$4.99

$

In Stock, Qty 10

0

24

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 13

0

25

Husqvarna 579811001

BUMPER.2FCS.CLCT.TRIM.SIDE.BLK

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 13

0

27

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

31

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

33

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 587333301

SCREW.7/16-14X2.125.HEX.WSH.HD
(Superseded to 588438301)

$6.49

$

In Stock, Qty 10

0

35

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

37

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 585938101

NUT ACORN,FLANGED,5/16-18

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0
