Z 246 (967665401-00) - Husqvarna 46" Zero-Turn Mower (2017-02) HYDRAULIC PUMP- MOTOR Parts Diagram

46" Zero-Turn Mower

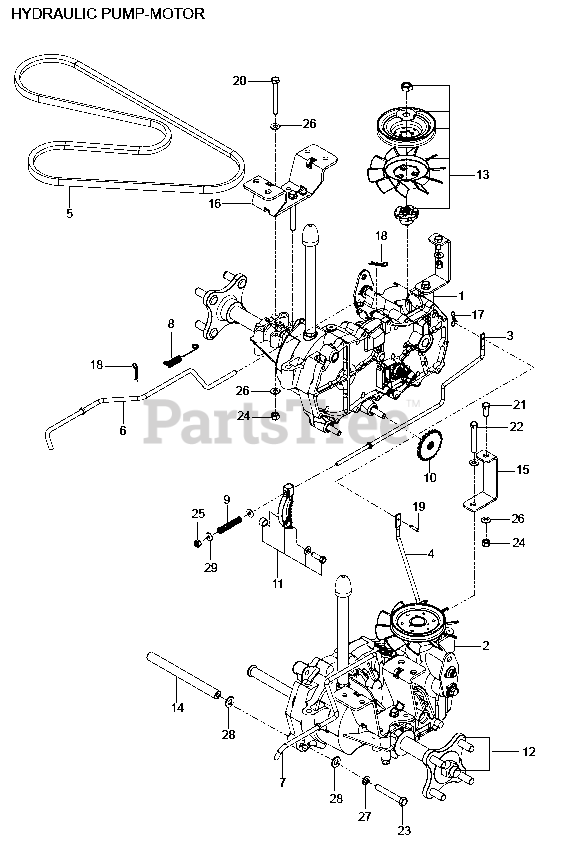

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

Husqvarna 510375601

HG_EZT, LT

$1091.99

$

In Stock, only 1 left!

0

2

Husqvarna 510375602

HG_EZT, RT

$1091.99

$

In Stock, only 1 left!

0

3

Husqvarna 574030501

LINKAGE.BRAKE.LT

$

$

Not available

4

Husqvarna 574030502

LINKAGE, BRAKE RT

$

$

Not available

5

Husqvarna 539110411

BELT, HYDRO PUMP

$28.99

$

In Stock, Qty 20+

0

6

Husqvarna 585474401

ROD.BYPASS.RZ.LH

$

$

Not available

7

Husqvarna 585474501

ROD.BYPASS.RHT

$

$

Not available

8

Husqvarna 586665101

SPRING.ROD.BYPASS.EZT

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110342

SPRING

$

$

Not available

10

Husqvarna 539120080

HG_DISC COG BRAKE 51635

$34.99

$

In Stock, only 2 left!

0

11

Husqvarna 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, Qty 13

0

12

Husqvarna 575507001

HG_KIT, HYDRO-GEAR HUB

$218.99

$

Usually ships in 3-10 days

0

13

Husqvarna 501403602

KIT FAN/PULLEY 72137

$133.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510184104

SPACER TUBE EZT

$

$

Not available

15

Husqvarna 580806502

SUPPORT.FRONT.TRANS.PNTX431

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 580806602

BRACKET.EZT.MOUNT.REAR.PNTX431

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$4.99

$

In Stock, Qty 7

0

18

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 587115301

PIN.CLEVIS.3/16X.475

$4.99

$

In Stock, Qty 10

0

20

Husqvarna 874780544

BOLT HEX

$

$

Not available

21

Husqvarna 874780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874780640

SCREW.HEX HEAD.38-16 X 2.5

$4.99

$

In Stock, Qty 5

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0
