Z 246 - Husqvarna 46" Zero-Turn Mower WHEELS & TIRES Parts Diagram

46" Zero-Turn Mower

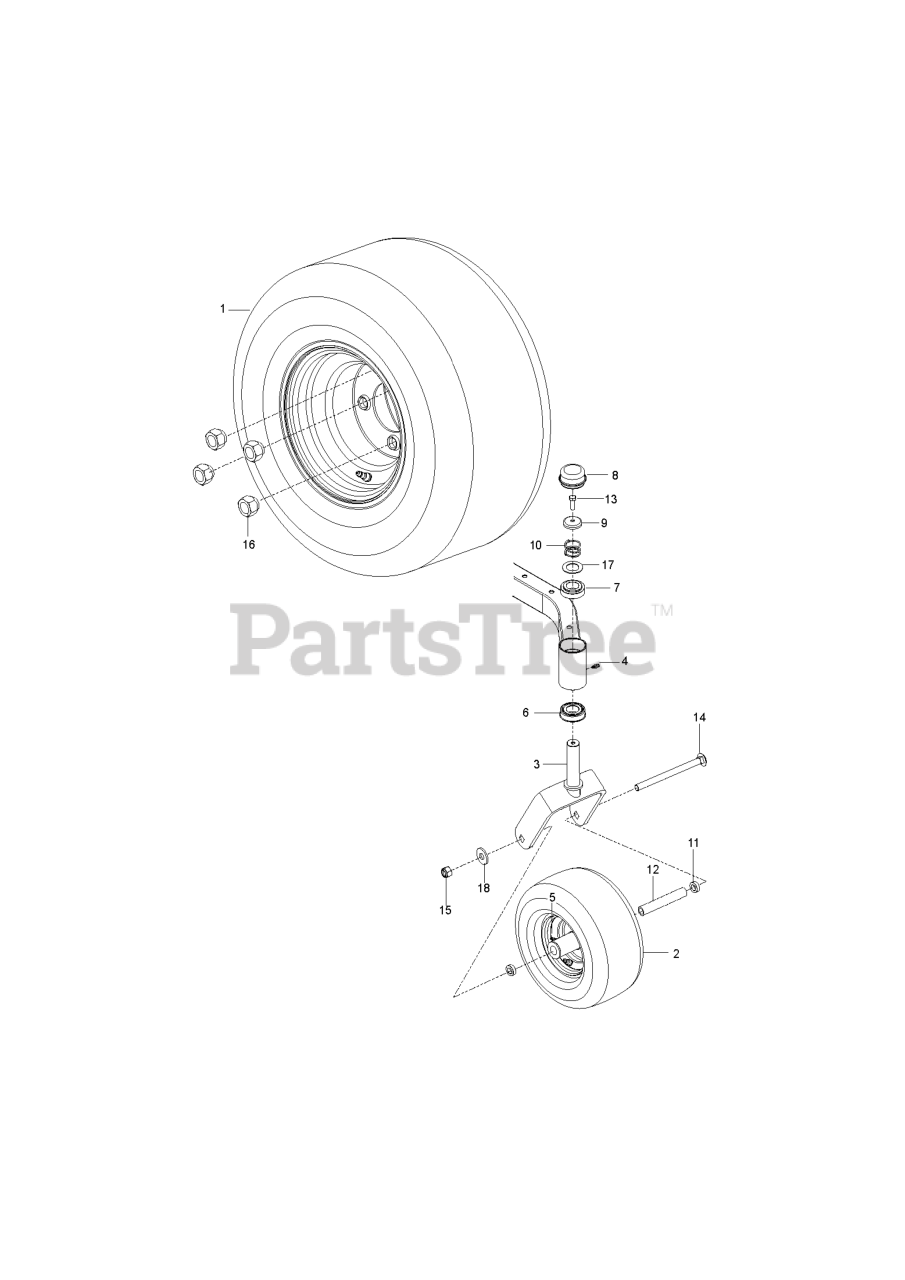

WHEELS & TIRES Parts Diagram

  • Title

7

Husqvarna 539117901

BUSHING, CASTER

$11.99

$

In Stock, Qty 20+

0

14

Husqvarna 596585401

Bolts

Note: For 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 590486601

WHEEL CARLSTAR 18X9.5-8" SILVE

Note: For all EXCEPT 96766540100, 96784450100

$

$

Not available

3

Husqvarna 586650302

YOKE.PNT.CASTER.ORG
(Superseded to 586650309)

Note: For all EXCEPT 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$65.99

$

In Stock, only 3 left!

0

6

Husqvarna 539112660

BEARING FLANGED

$23.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510186505

YOKE.CASTER.ORANGE
(Superseded to 510186501)

Note: For 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$77.99

$

Usually ships in 3-10 days

0

1

Husqvarna 579753401

WHEEL.A500.18 X 9.5-8.SILVER

Note: For 96766540100, 96784450100

$239.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 521991102)

Note: For 967324001-00, 967324002-00, 967324002-00, Nut 1/2-13 Hex Center Lock (595316501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 521991102)

Note: For all EXCEPT 967324001-00, 967324002-00, 967324002-00

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL
(Superseded to 587653903)

$4.99

$

In Stock, Qty 14

0

12

Husqvarna 576588901

SPACER, PIVOT

Note: For all EXCEPT 96766540100, 96784450100

$23.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 874950516

5/16-18X1 HHB G5W/NY
(Superseded to 596319901)

$3.99

$

In Stock, Qty 5

0

2

Husqvarna 576588602

WHEEL ASSY, WIDE, RZ

Note: For all EXCEPT 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$131.99

$

In Stock, Qty 20+

0

2

Husqvarna 590486802

WHEEL.CARLSTAR.11X4-5".MS417

Note: For 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$83.99

$

In Stock, Qty 14

0

10

Husqvarna 539115747

SPRING, CASTER
(Superseded to 596388901)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585995401

SPACER.PIVOT

Note: For 96766540100, 96784450100

$8.49

$

In Stock, Qty 20+

0

5

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576601502

Hardware
(Superseded to 576601503)

Note: For all EXCEPT 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$14.99

$

In Stock, Qty 20+

0

17

Husqvarna 539115675

WASHER, 1.025 ID X 1.64
(Superseded to 596319801)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581269201

SPACER 5/16"

Note: For 970467401-00, 967271601-00, 967271501-00, 967271401-00, 967323902-00

$4.99

$

In Stock, Qty 11

0

4

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 18

0

9

Husqvarna 539115749

CASTER.PLUG
(Superseded to 596301001)

$3.99

$

In Stock, only 2 left!

0
