Z 248 F (967844801-01) - Husqvarna 48" Zero-Turn Mower (2018-10) SEAT 2 Parts Diagram

48" Zero-Turn Mower

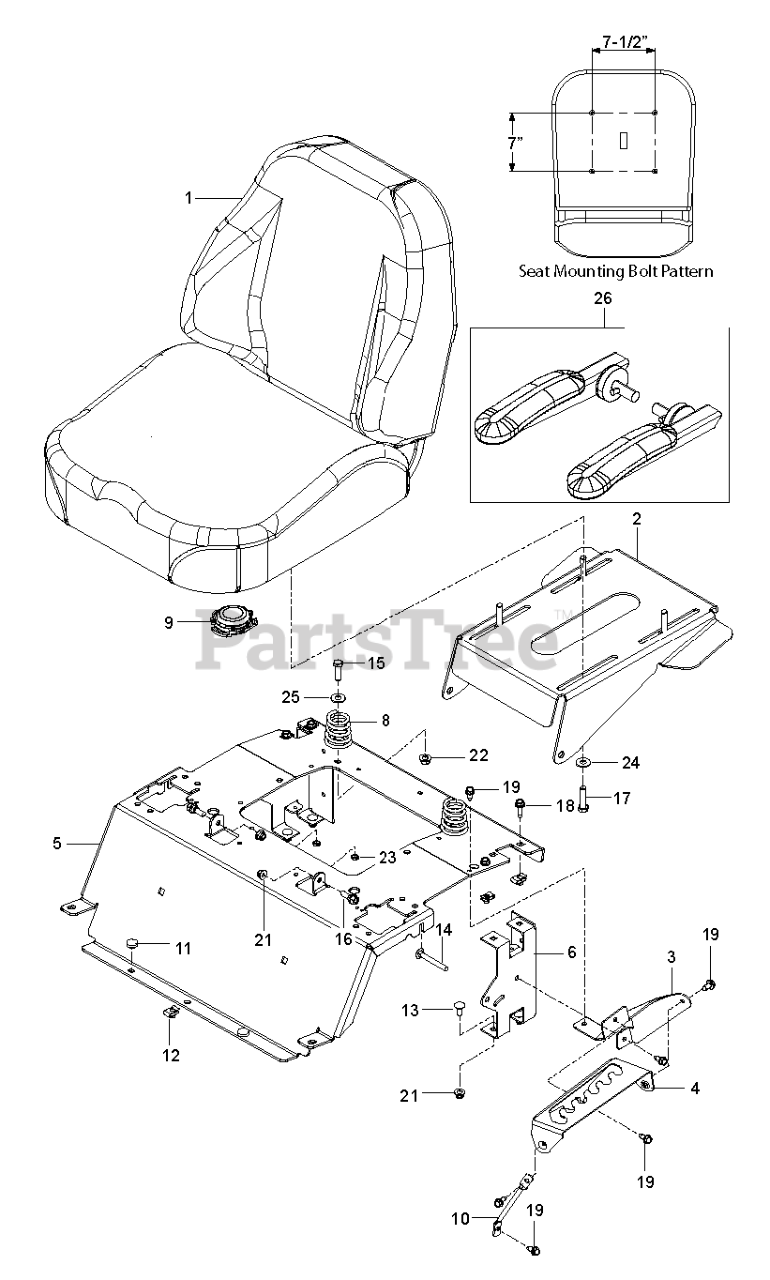

SEAT 2 Parts Diagram

  • Title

17

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 590856002

PAN SEAT, 4-BOLT BLACK X428

$96.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$20.99

$

Usually ships in 3-10 days

0

25

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 20+

0

1

Husqvarna 590873404

SEAT. WOOD.BOTTOM.4-BOLT.HUSQ
(Superseded to 590873408)

$797.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589761206

SUPPORT.SEAT.RZ.HUSQ.ORANGE
(Superseded to 589761211)

$159.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110303

BOLT, SHOULDER
(Superseded to 596240701)

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 873350400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$20.99

$

In Stock, Qty 5

0

24

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 16

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

8

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 4 left!

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 590873402

SEAT KING 18" WOOD BTM, ARM

$250.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD
(Superseded to 510422702)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0
