Z 254 (967324203-00) - Husqvarna 54" Zero-Turn Mower (2016-02) DECALS Parts Diagram

54" Zero-Turn Mower

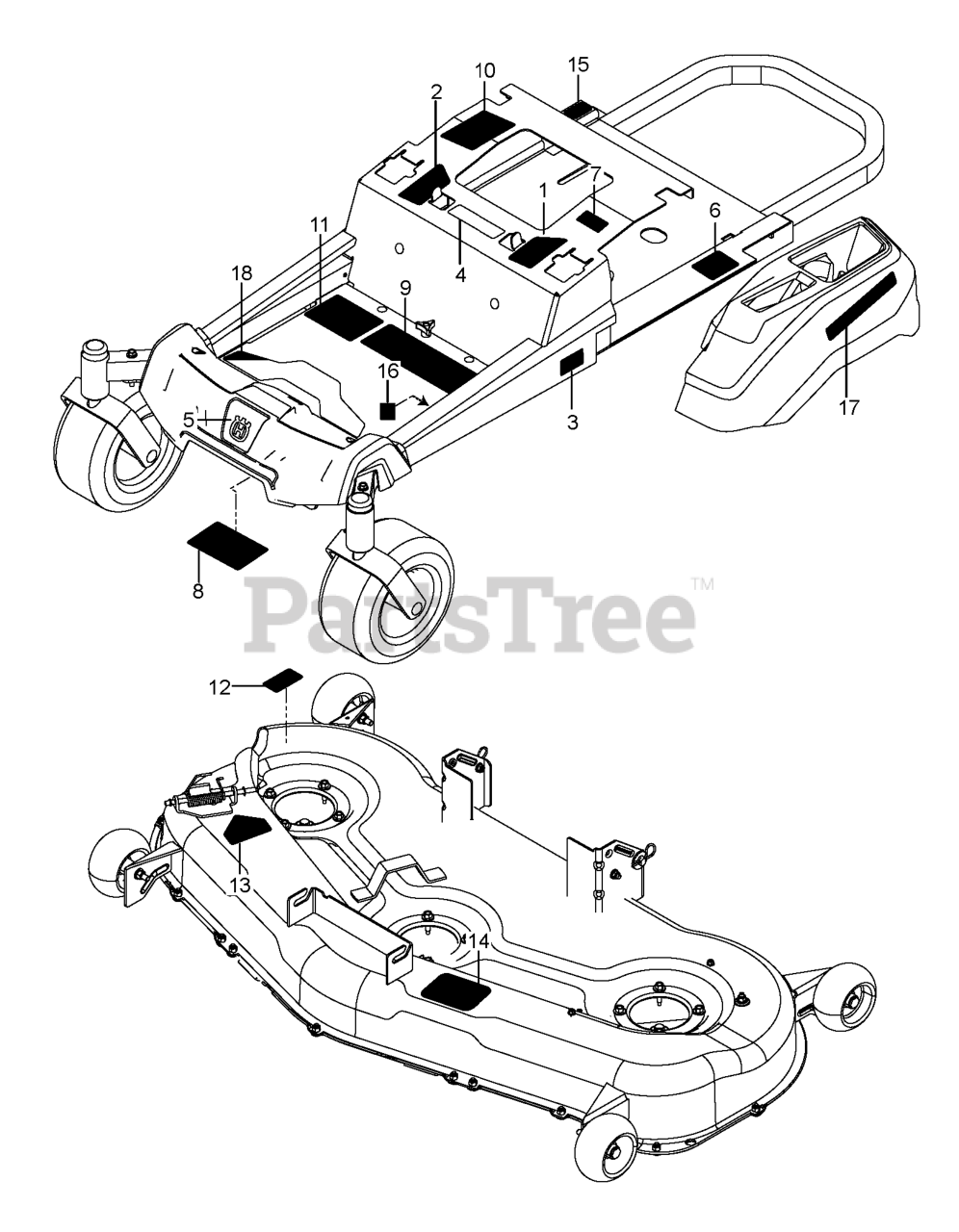

DECALS Parts Diagram

  • Title

4

Husqvarna 539105745

EURO DECAL-BATTERY WARNIN6
(Superseded to 529527001)

Note: BATTERY WARNING

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 584904601

DECAL, DECK DEFLECTOR, WARNING
(Superseded to 584904602)

Note: BLADE DANGER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539112620

DECAL, BELT ROUTING

Note: BELT ROUTING

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 577469001

DECAL.HUSQVARNA.210MM

Note: LOGO

$17.99

$

In Stock, only 2 left!

0

2

Husqvarna 587595501

DECAL.ZTR.RZ.THRTL/PRKBRK.V2.R

Note: STEER / BRAKE RIGHT

$20.99

$

In Stock, only 1 left!

0

5

Husqvarna 532428677

DECAL.BADGE.55MM.CROWNH.HUSQ

Note: CROWN

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 587000701

PAD.RZ.FOOTREST.PLATE

$13.99

$

In Stock, only 2 left!

0

15

Husqvarna 501082601

DECAL CERTIFICATION DECAL EMCC

Note: ECM AUSTRALIA

$

$

Not available

1

Husqvarna 587595601

DECAL.ZTR.RZ.THRTL/PRKBRK.V2.L

Note: STEER / BRAKE LEFT

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 581724401

DECAL.DECK.6MIL./DEF.SHLD.WARN

Note: DEFLECTOR

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 587210101

DECAL.ZTR.SIDE.RAIL.GRAPHIC

Note: Z 254

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539110522

DECAL, CUSTOMER RESPNSIBILITY
(Superseded to 532180941)

Note: RESPONSIBILITY

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109897

DECAL, SERVICE

Note: SERVICE

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108386

DECAL, EXITING MOWER

Note: EXIT MOWER

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 581724102

DECAL.80.DBA.AUSTRALIA

Note: 80 DBA

$

$

Not available

9

Husqvarna 583934001

DECAL.ZTR.WARNING.SMARTIGNITIN
(Superseded to 590485501)

Note: SAFETY WARNINGS

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108385

DECAL, DO NOT TOW
(Superseded to 585142401)

Note: DO NOT TOW

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 588035101

DECAL.ZTR.STARTINSTRCT.CHOKE15

Note: START

$4.99

$

Usually ships in 3-10 days

0
