Z 254 F (967844901-02) - Husqvarna 54" Zero-Turn Mower (2020-08) MOWER LIFT / DECK LIFT Parts Diagram

54" Zero-Turn Mower

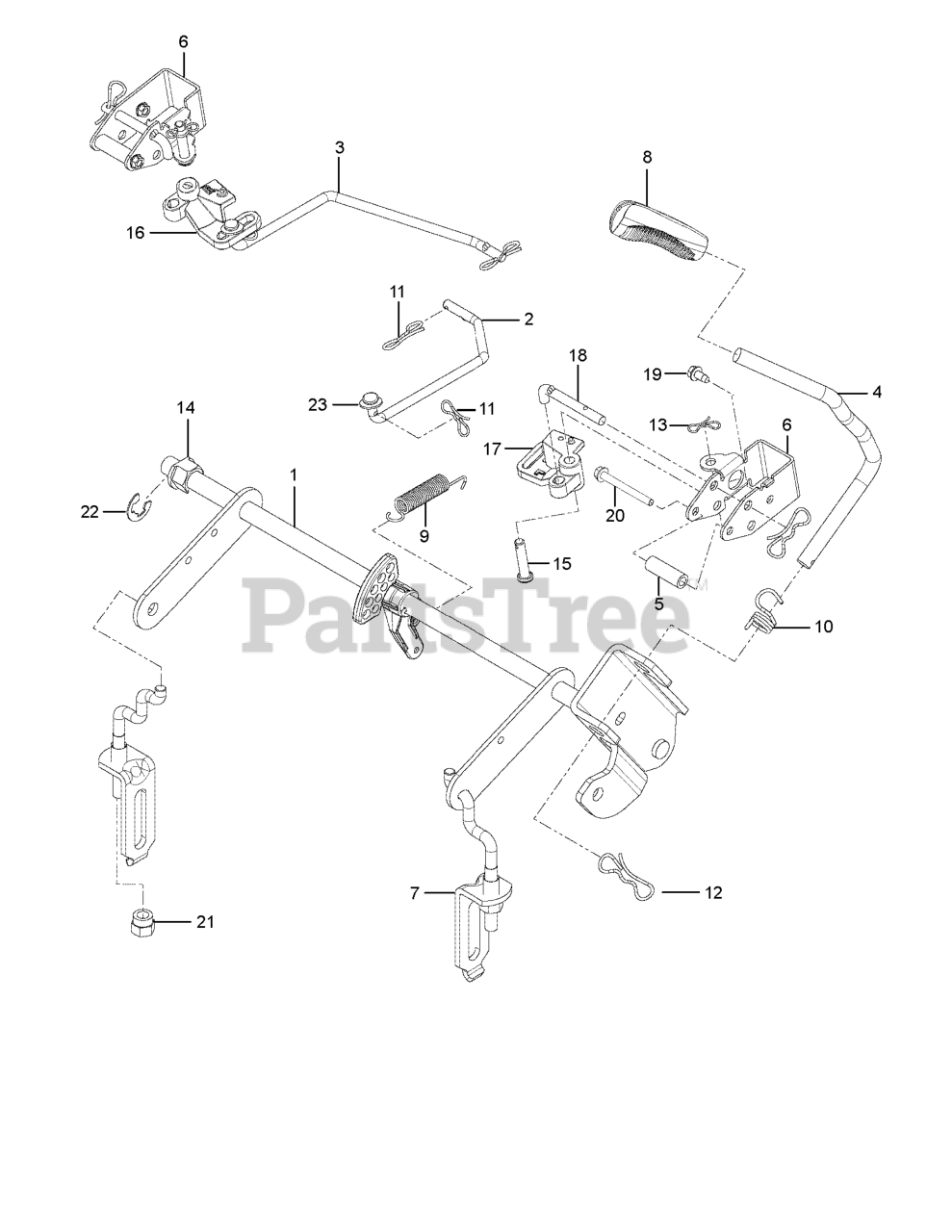

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

16

Husqvarna 586457501

BELLCRANK.RH

Note: RIGHT

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 4 left!

0

14

Husqvarna 510184901

PLASTIC NUT

$5.99

$

In Stock, Qty 7

0

11

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 586428701

HANDLE LIFT ZTR
(Superseded to 586428702)

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585682001

ROD.PUSH.BRAKE

$3.49

$

In Stock, only 2 left!

0

2

Husqvarna 586457101

LINK.BRAKE.PARK.UPPER.LH

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 586429702

SHAFT ASSY DECK LIFT WELDMENT

$74.99

$

In Stock, only 2 left!

0

19

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.49

$

In Stock, Qty 8

0

13

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586561301

SCREW THD;ROLL;1/4-20 X 2.25

$17.99

$

In Stock, Qty 5

0

15

Husqvarna 585701401

PIN.5.16X1.5

$3.49

$

In Stock, Qty 6

0

5

Husqvarna 580486101

SPACER.334.ID.5.OD.1.5.L
(Superseded to 580486102)

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 586457201

LINK.BRAKE.PARK.UPPER.RH

$11.99

$

In Stock, only 2 left!

0

23

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 586867601

RETURN.BRAKE.PARK.AUTO

$

$

Not available

17

Husqvarna 586457401

BELLCRANK.LH

Note: LEFT

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 587623001

LINK.ASM.RZ.LIFT.SERVICE

$13.99

$

In Stock, Qty 11

0

22

Husqvarna 812000002

RETAINING RING LT

$3.49

$

In Stock, Qty 8

0

6

Husqvarna 585682102

BRACKET.BELLCRANK.PBRAKE X431

$7.99

$

Usually ships in 3-10 days

0
