Z 254 F (967954001-00) - Husqvarna 54" Zero-Turn Mower (2018-10) SEAT Parts Diagram

54" Zero-Turn Mower

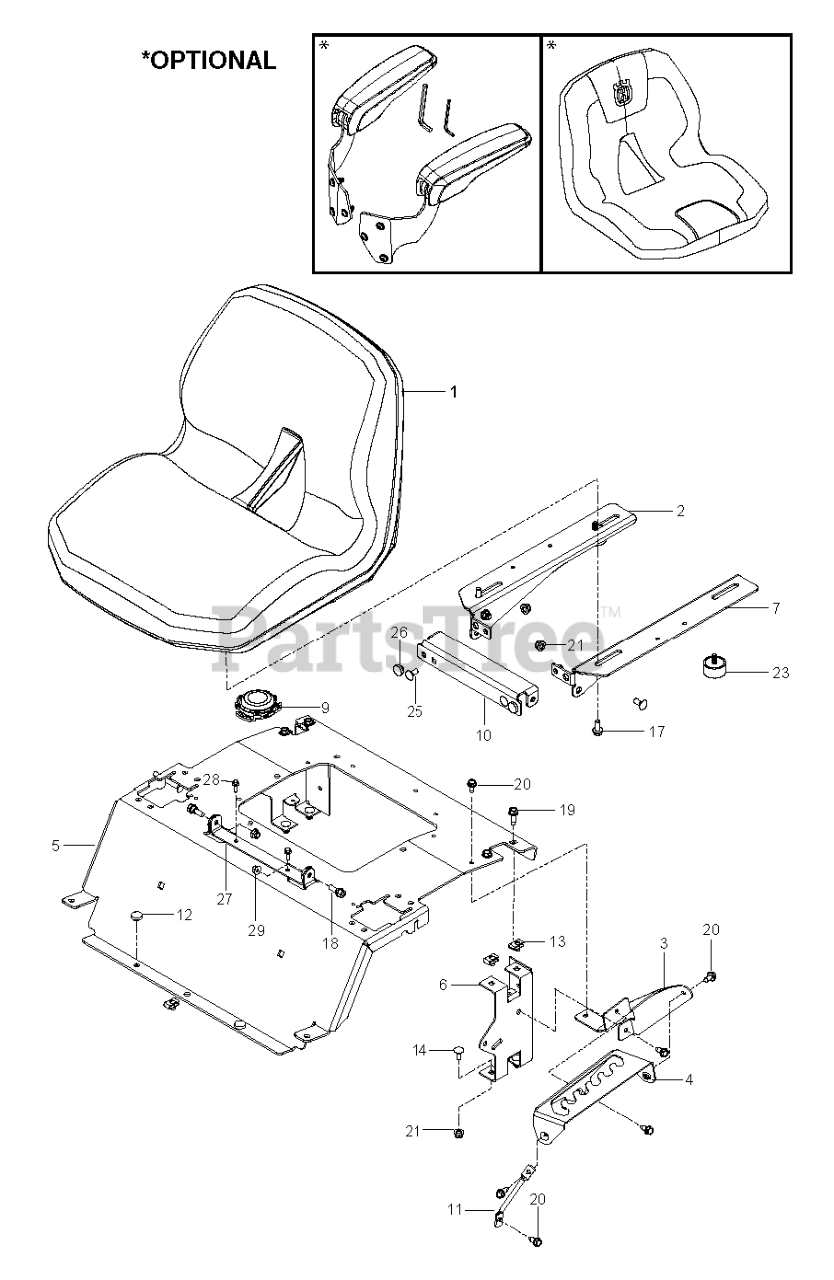

SEAT Parts Diagram

  • Title

9

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 2 left!

0

11

Husqvarna 586428601

SUPPORT.LEG.DECK.LIFT

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586221202

PLATE.DECK.LIFT.X431

$6.99

$

In Stock, Qty 6

0

18

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 582478701

BUMPER 5/16-18
(Superseded to 582478702)

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

14

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$21.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

3

Husqvarna 586220802

PLATE.SUPPORT.DECK.LIFT.X431

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

Husqvarna 532421499

KIT.ARMREST.15"TEX.SEAT
(Superseded to 582384601)

Note: OPTIONAL

$68.99

$

In Stock, only 1 left!

0

5

Husqvarna 589481206

PLATE.SUPPORT.SEAT.RZ.ORANGE
(Superseded to 589761206)

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 596679402

BRACKET SEAT PAN RIGHT BLACK X

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 590899903

BRACKET.SEAT.REINF.X668

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 589028501

SCREW.FLG.LOCKING.1/4-20X.75

$

$

Not available

1

Husqvarna 597658101

Seats

$302.99

$

Usually ships in 3-10 days

0

29

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 596673002

BRACKET FRONT SEAT PAN BLACK X

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596672902

BRACKET SEAT PAN LEFT BLACK X4

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0
