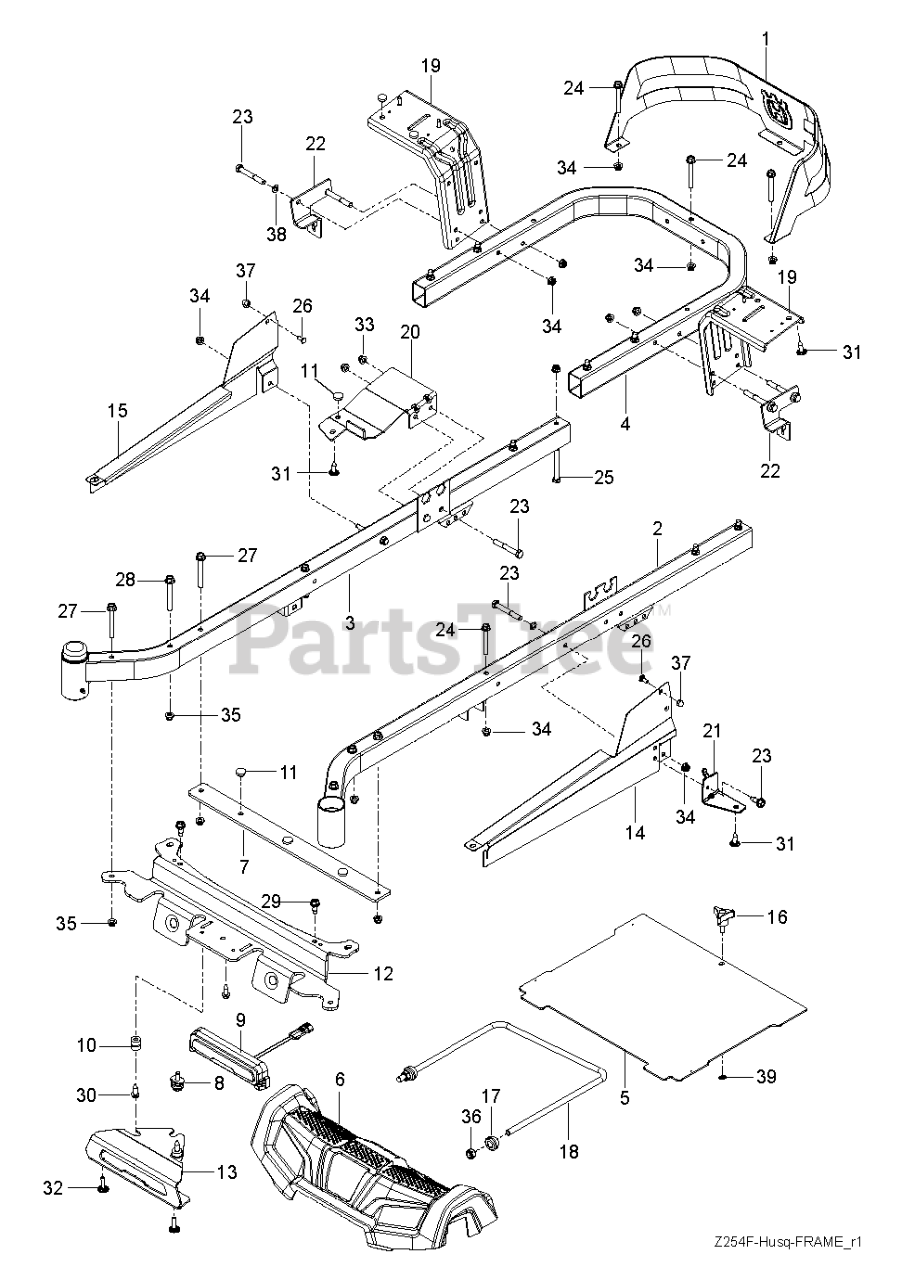

Z 254 F (967954003-00) - Husqvarna 54" Zero-Turn Mower (2018-10) FRAME Parts Diagram

54" Zero-Turn Mower

FRAME Parts Diagram

  • Title

18

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

10

Husqvarna 587225201

GROMMET.RUBBER.PUSHIN

$

$

Not available

22

Husqvarna 585474302

BRKT ROD.BYPASS.EZT.X431

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 585039802

GUARD.ENGINE.HUSQ.RZ.X498

$25.99

$

In Stock, only 3 left!

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ

$157.99

$

In Stock, only 1 left!

0

32

Husqvarna 532421756

SCREW.#10 X 0.500

$

$

Not available

33

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

29

Husqvarna 586881101

BOLT.5/16-18.THRD.ROLL.SHOULDR

$4.99

$

In Stock, only 3 left!

0

39

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 585523604

SUPPORT.PNT.LH.CONSOLE.FRONT

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 585331602

COVER.RAIL.RH.RZ.X668

$20.99

$

Usually ships in 3-10 days

0

35

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

37

Husqvarna 585938101

NUT ACORN,FLANGED,5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780544

BOLT HEX

$

$

Not available

19

Husqvarna 580501302

FENDER.SUPPORT.PNT.X431

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587546901

SCREW.ADJ.ISOLATOR.BOLT.ASSY

$

$

Not available

26

Husqvarna 585940001

BOLT.CARRIAGE.5/16-18.7/16

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 586703801

COVER.FOOTREST.REFRESH.ASM

$120.99

$

In Stock, only 1 left!

0

13

Husqvarna 587458602

BRACKET.SKIDPLTE.LED.RFRSHX417

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585523004

FOOTREST.PLATE.SUPPORT.X431

$

$

Not available

4

Husqvarna 584991002

TUBE.PNT.FRAME.RER.HUSQ.23".RZ

$62.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589283302

FRAME.TUBE.RZ.MAIN.WELD.LH.ORG

$68.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585523104

CROSS.PNT.MEMBER.BLK

$68.99

$

Usually ships in 3-10 days

0

27

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD

$

$

Not available

25

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

38

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

34

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

$

$

Not available

36

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

9

Husqvarna 585916701

LIGHT.ZTR.LED.ASM

$87.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585331502

COVER.RAIL.LH.RZ.X668

$20.99

$

Usually ships in 3-10 days

0

28

Husqvarna 586654301

BOLT SHOULDER,FLANGED,3/8-16X3

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 585523404

SUPPORT.PNT.RH.CONSOLE.FRONT

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

2

Husqvarna 589283402

FRAME.TUBE.RZ.MAIN.WELD.RH.ORG

$68.99

$

In Stock, only 1 left!

0
