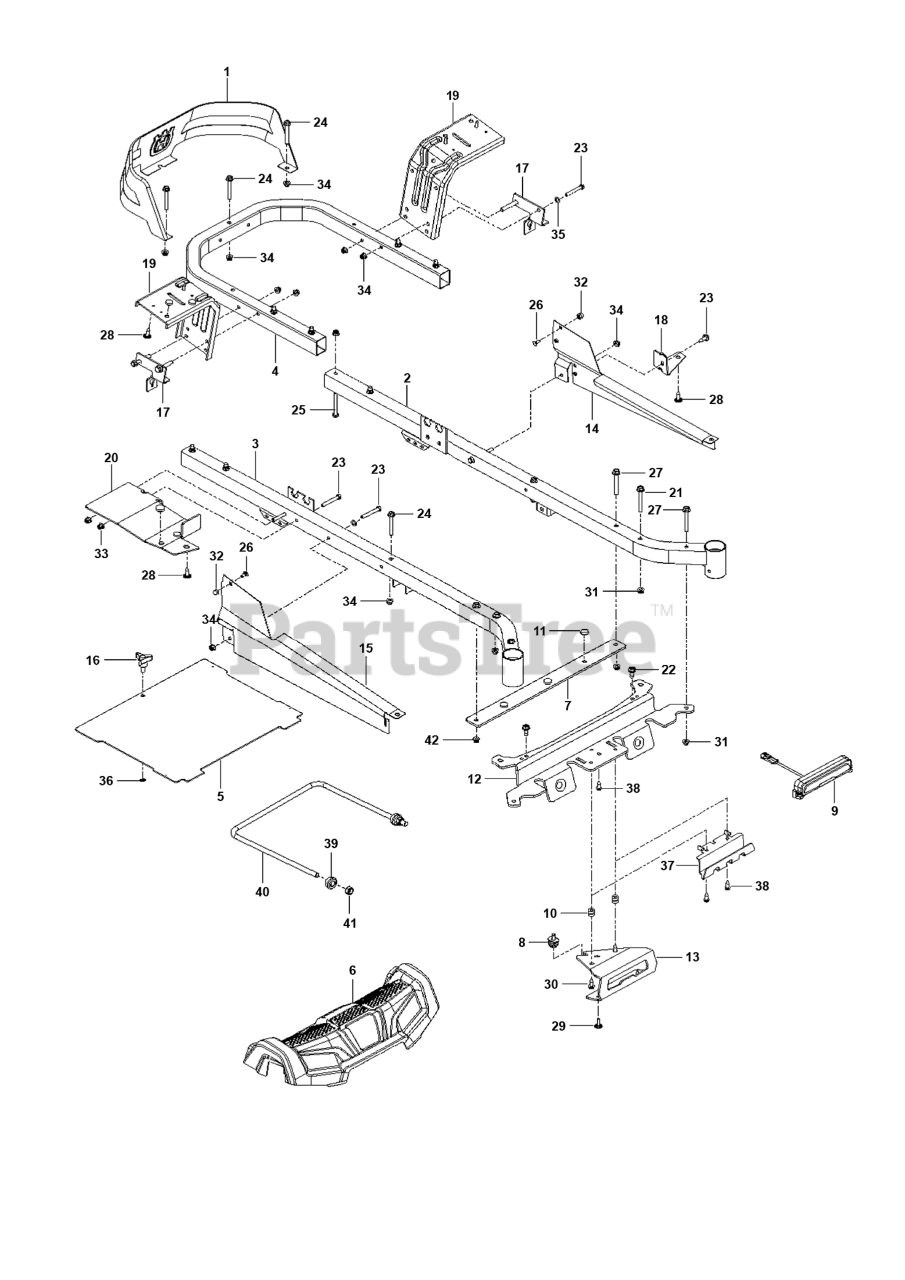

Z 254 F - Husqvarna 54" Zero-Turn Mower FRAME Parts Diagram

54" Zero-Turn Mower

FRAME Parts Diagram

  • Title

42

Husqvarna 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

Note: For 96795400100, 967954001-01

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585523104

CROSS.PNT.MEMBER.BLK

$131.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580501302

FENDER.SUPPORT.PNT.X431

$41.99

$

Usually ships in 3-10 days

0

31

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

7

Husqvarna 585523004

FOOTREST.PLATE.SUPPORT.X431
(Superseded to 529365102)

$33.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585331502

COVER.RAIL.LH.RZ.X668

$47.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589283302

FRAME.TUBE.RZ.MAIN.WELD.LH.ORG

$125.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585474302

BRKT ROD.BYPASS.EZT.X431

$8.49

$

Usually ships in 3-10 days

0

38

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: For 967680901-00, 967954002-00, 96795400100, 967954001-01

$5.99

$

In Stock, Qty 16

0

36

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 586881101

BOLT.5/16-18.THRD.ROLL.SHOULDR

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 585523404

SUPPORT.PNT.RH.CONSOLE.FRONT
(Superseded to 593118304)

$23.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585039802

GUARD.ENGINE.HUSQ.RZ.X498

$

$

Not available

5

Husqvarna 598523902

PLATE RZ FOOTREST HUSQVARNA OR
(Superseded to 598712401)

Note: For 967954001-01, 970459001-01

$131.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 8

0

4

Husqvarna 584991002

TUBE.PNT.FRAME.RER.HUSQ.23".RZ

$113.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 586654301

BOLT SHOULDER,FLANGED,3/8-16X3
(Superseded to 586654302)

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587546901

SCREW.ADJ.ISOLATOR.BOLT.ASSY
(Superseded to 587546902)

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 585938101

NUT ACORN,FLANGED,5/16-18

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 585331602

COVER.RAIL.RH.RZ.X668

$47.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589283402

FRAME.TUBE.RZ.MAIN.WELD.RH.ORG

$119.99

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

Note: For 967680901-00, 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 581448602

PLATE FOOT ORANGE X668
(Superseded to 598712401)

Note: For 967954002-00, 96795400100, 967954001-01

$131.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587225201

GROMMET.RUBBER.PUSHIN

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$

$

Not available

26

Husqvarna 585940001

BOLT.CARRIAGE.5/16-18.7/16

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

Note: For all EXCEPT 967680901-00

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587458602

BRACKET.SKIDPLTE.LED.RFRSHX417

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$20.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585523604

SUPPORT.PNT.LH.CONSOLE.FRONT

$45.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4
(Superseded to 596434801)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 593118304

SUPPORT RZ REFRESH RH CONSOLE

Note: For 967954001-01, 970459001-01

$23.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ
(Superseded to 598712401)

Note: For 967680901-00, 967681001-00, 967844901-00, 967681002-00, 96784490101, 96795400300, 970459001-00, 970459001-01

$131.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 586703801

COVER.FOOTREST.REFRESH.ASM

$65.99

$

In Stock, only 2 left!

0

30

Husqvarna 817580520

BOLT.5/16-18X1.25

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 593118804

SKID PLATE RZ REFRESH STANDARD

Note: For 967954001-01, 970459001-01

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 585916701

LIGHT.ZTR.LED.ASM

Note: For all EXCEPT 967680901-00, 967954002-00, 96795400100, 967954001-01

$74.99

$

Usually ships in 3-10 days

0

27

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 593682604

SUPPORT RZ REFERSH LH CONSOLE

Note: For 967954001-01, 970459001-01

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 529365102

SUPPORT.RZ.FOOTREST.PLATE.X43

Note: For 967954001-01, 970459001-01

$33.99

$

Usually ships in 3-10 days

0

5

Husqvarna 598712401

PLATES

Note: For 967680901-00, 96784490102

$131.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

Note: For 967680901-00

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT
(Superseded to 593842101)

Note: For 967680901-00, 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

40

Husqvarna 521938101

LINK, FRONT SUSP.
(Superseded to 521938102)

Note: For 967680901-00, 967954002-00, 96784490101, 96795400100, 96795400300, 967954001-01, 96784490102

$27.99

$

In Stock, only 3 left!

0

25

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.99

$

In Stock, only 2 left!

0

37

Husqvarna 585523204

SKID.PLATE.PNT.RZ.REF.SIVER
(Superseded to 593118804)

Note: For 967680901-00, 967954002-00, 96795400100, 967954001-01

$14.99

$

Usually ships in 3-10 days

0
