Z 254 - Husqvarna 54" Zero-Turn Mower IGNITION SYSTEM Parts Diagram

54" Zero-Turn Mower

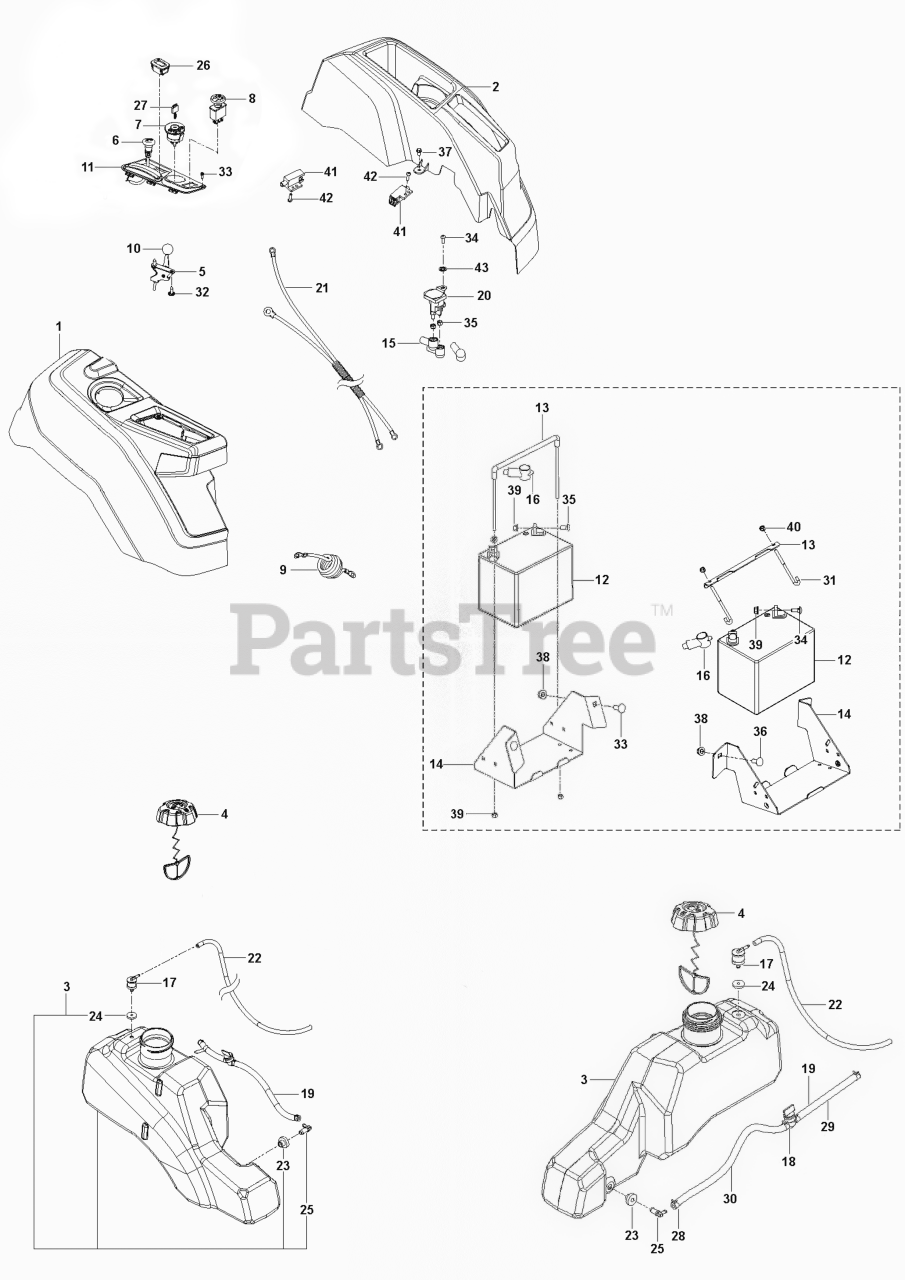

IGNITION SYSTEM Parts Diagram

  • Title

12

Husqvarna 579411601

BATTERY, 12 V 300 AMP DRY

Note: For 967324303-00, 967045201-00, 967324101-00, 967638501-00, 967324203-00

$

$

Not available

19

Husqvarna 586123906

FUEL.HOSE.SHUT.OFF.ASM.10".18"

Note: For all EXCEPT 967324302-00, 967324101-00, 967324301-00, 967324203-00, 967844601-00, 970467601-00

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

Note: For all EXCEPT 967324303-00, 967045201-00, 967324101-00, 967638501-00, 967324203-00

$

$

Not available

Husqvarna 586337301

HARNESS.MAIN.RZ.WITHOUT.BRAKE

Note: NOT SHOWN

$101.99

$

In Stock, only 1 left!

0

22

Husqvarna 587044533

HOSE.3/16".VAPOR.LINE.33"LGTH

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$11.99

$

Usually ships in 3-10 days

0

33

Husqvarna 545227101

SCREW 6-19X.437

$3.99

$

In Stock, Qty 10

0

13

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

Note: For 967324302-00, 967324303-00, 967045201-00, 967324301-00, 967324203-00

$33.99

$

In Stock, only 4 left!

0

28

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

21

Husqvarna 587198601

HARNESS.BTTRY.CABLE.RZ.REFRESH

$29.99

$

In Stock, only 1 left!

0

31

Husqvarna 588839401

HOOK.J.BATTERY

Note: For all EXCEPT 967324302-00, 967324303-00, 967045201-00, 967324203-00

$3.99

$

In Stock, Qty 12

0

5

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB
(Superseded to 597524002)

Note: For 967324302-00, 967324301-00, 967844601-00, 970467601-00

$53.99

$

In Stock, only 1 left!

0

8

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

14

Husqvarna 585048702

BOX BATTERY RZ BLACK

Note: For 967324302-00, 967324303-00, 967045201-00, 967324301-00, 967324203-00

$

$

Not available

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: For 967844601-00, 970467601-00, NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 587601501

SWITCH.INTLK.RZ.RFRSH.BUTTON

Note: For all EXCEPT 967844601-00, 970467601-00

$17.99

$

In Stock, Qty 20+

0

5

Husqvarna 585974902

CABLE.THROTTLE.37"

Note: For 967324101-00

$

$

Not available

35

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

$13.99

$

In Stock, only 2 left!

0

42

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

Note: For 967324301-00

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 587044564

HOSE.3/16".VAPOR.LINE.64"LGTH

Note: For 967324303-00, 967045201-00

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 586881501

CHOKE.PUSH-IN.STYLE

Note: For all EXCEPT 967324302-00, 967324301-00, 967638501-00, 967324101-00

$27.99

$

In Stock, only 1 left!

0

11

Husqvarna 585522703

CONTROL.PANEL.RZ.REFRESH.RH

Note: For 967324101-00

$14.99

$

In Stock, only 1 left!

0

37

Husqvarna 596437001

Screws

Note: For all EXCEPT 967324301-00

$3.99

$

In Stock, only 2 left!

0

Husqvarna 586548101

HARNESS.LED.LIGHT.RZ

Note: For 967271701-00, 96766550100, 967045201-01, NOT SHOWN

$29.99

$

Usually ships in 3-10 days

0

22

Husqvarna 587044518

HOSE.3/16".VAPOR.LINE.18"LGTH

Note: For 967324101-00

$7.99

$

In Stock, Qty 9

0

39

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

Note: For all EXCEPT 967324302-00, 967324303-00, 967045201-00, 967324203-00

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 585522701

CONTROL.PANEL.RZ.REFRESH.RH

Note: For all EXCEPT 967324101-00

$13.99

$

In Stock, only 1 left!

0

26

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

40

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

Note: For 967324303-00, 967045201-00, 967324203-00

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990053

WASHER 1/4 INT TOOTH

Note: For 967324203-00

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$35.99

$

In Stock, Qty 20+

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$30.99

$

In Stock, only 3 left!

0

10

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, Qty 12

0

32

Husqvarna 588839401

HOOK.J.BATTERY

Note: For all EXCEPT 967324302-00, 967324303-00, 967045201-00, 967324203-00, 967324301-00

$3.99

$

In Stock, Qty 12

0

5

Husqvarna 539112438

THROTTLE CABLE
(Superseded to 597873201)

Note: For all EXCEPT 967324302-00, 967324301-00, 967844601-00, 970467601-00, 967324101-00

$53.99

$

In Stock, only 1 left!

0

9

Husqvarna 586108201

CABLE BATTERY POS RZ

$11.99

$

In Stock, Qty 7

0

38

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

Note: For 967324101-00

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

Note: For 967324301-00

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

36

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 586881502

CHOKE.PUSH-IN.STYLE.57"

Note: For 967324302-00, 967324301-00, 967638501-00

$21.99

$

In Stock, only 3 left!

0

3

Husqvarna 589924701

TANK.ASM3"NECK.NOCAP.NOSHDRZ17
(Superseded to 589924705)

Note: Fits 2.75" filler neck

$

$

Not available

23

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 586621201

CONSOLE.LH.ASM
(Superseded to 586621202)

$119.99

$

In Stock, Qty 8

0

18

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 1 left!

0

38

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

Note: For all EXCEPT 967324101-00

$3.49

$

In Stock, Qty 8

0

13

Husqvarna 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

Note: For all EXCEPT 967324302-00, 967324303-00, 967045201-00, 967324301-00, 967324203-00

$65.99

$

In Stock, only 2 left!

0

42

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

Note: For 967324101-00, 967271701-00, 967638501-00

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 587044550

HOSE.3/16".VAPOR.LINE.50"LGTH

Note: For 967271701-00, 967638501-00, 96766550100, 967045201-01

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532139277

STEM FUEL TANK

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

Note: For all EXCEPT 967324101-00, 967271701-00, 967638501-00, 967324301-00, 967844601-00, 970467601-00

$3.99

$

In Stock, only 4 left!

0

19

Husqvarna 586123904

FUEL.HOSE.SHUT.OFF.ASM.10".3"

Note: For 967324302-00, 967324101-00, 967324301-00, 967324203-00, 967844601-00, 970467601-00

$17.99

$

In Stock, only 3 left!

0

15

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

Note: For all EXCEPT 967324303-00, 967045201-00, 967324203-00

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$23.99

$

In Stock, only 4 left!

0

14

Husqvarna 582609602

BOX.PNT.BATTERY.RZ.EDIP

Note: For all EXCEPT 967324302-00, 967324303-00, 967045201-00, 967324301-00, 967324203-00

$41.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585522801

CONSOLE.ASSY.RZ.REFRESH.RH
(Superseded to 598602601)

$131.99

$

In Stock, Qty 8

0

15

Husqvarna 532154336

COVER.TERMINAL.RED

Note: For 967324303-00, 967045201-00, 967324203-00

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

Husqvarna 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0

20

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

4

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

Note: For 967324302-00

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 587044523

HOSE.3/16".VAPOR.LINE.23"LGTH

Note: For 967324203-00

$9.49

$

In Stock, only 3 left!

0

24

Husqvarna 532437492

GROMMET.ROV.SENTEC
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 587044818

HOSE 1/4" LOW PERMEATION FUEL

$11.99

$

In Stock, only 2 left!

0

27

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0
