Z 3001CE (5902134) - Ferris Hurricane Series Stand-On Blower Blower Group Parts Diagram

Hurricane Series Stand-On Blower

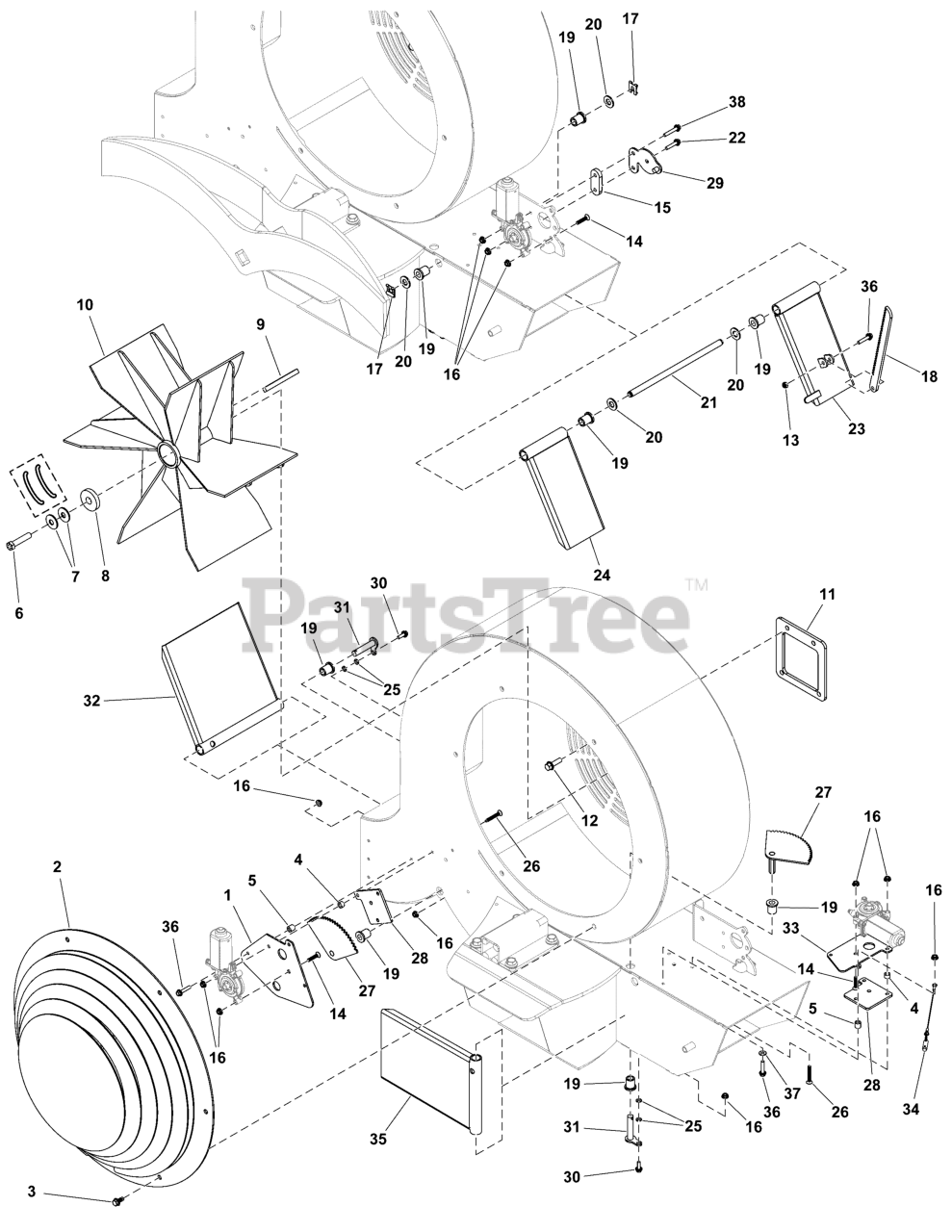

Blower Group Parts Diagram

  • Title

1

Ferris 5107338A

PLATE, RIGHT DEFLECTOR COVER - BLK
(Superseded to 5107338AFS)

$33.99

$

Usually ships in 2-12 days

0

2

Ferris 5418554A

WELD, SAFETY COVER Z3 - BLK
(Superseded to 5418554AFS)

$486.99

$

Usually ships in 2-12 days

0

3

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 20+

0

4

Ferris 5107396

SPACER, .265 X .50 X .320, CZ
(Superseded to 5107396FS)

$17.99

$

Usually ships in 2-12 days

0

5

Ferris 5106902

SPACER, .265 X .50 X .483, CZ
(Superseded to 5106902FS)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5107308

BOLT, 5/8-18 X 2-1/4 GD8, PHOS
(Superseded to 5107308FS)

Note: (Torque impeller mounting bolt to 140 ft-lbs (190 Nm))

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5108105

BELLEVILLE WASHERS 1.750 X .656 X .140
(Superseded to 5108105FS)

$9.99

$

Usually ships in 2-12 days

0

8

Ferris 5107199

WASHER, 5/8 X 2" OD
(Superseded to 5107199FS)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5106823

KEY, 3/8 SQ X 3.75
(Superseded to 5106823FS)

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 5419590

WELD, IMPELLER, 20.30 OD
(Superseded to 5419590FS)

$586.99

$

Usually ships in 2-12 days

0

11

Ferris 5107511

PLATE, SPACER, Z3, CZ
(Superseded to 5107511FS)

$47.99

$

Usually ships in 2-12 days

0

12

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

14

Ferris 5106874

SCREW, 1/4-20 X 1-1/4, ALLEN, SS
(Superseded to 5106874FS)

$2.49

$

Usually ships in 2-12 days

0

15

Ferris 5107334AA

PLATE, RACK SPACER - BLK
(Superseded to 5107334AAFS)

$15.99

$

Usually ships in 2-12 days

0

16

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5106951

CLIP, SAFETY
(Superseded to 5106951FS)

$2.49

$

Usually ships in 2-12 days

0

18

Ferris 5107335

PLATE, DEFLECTOR RACK,CZ
(Superseded to 5107335FS)

$40.99

$

Usually ships in 2-12 days

0

19

Ferris 5106943

BUSHING, 1/2 X 3/4 X 1F
(Superseded to 5106943FS)

$4.49

$

In Stock, Qty 20+

0

20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

21

Ferris 5107281

ROD, DEFLECTOR SUPPORT, Z3000
(Superseded to 5107281FS)

$27.99

$

In Stock, only 1 left!

0

22

Ferris 5106873

BOLT, 1/4-20 X 1-1/2, FLANGE, CZ
(Superseded to 5106873FS)

$2.49

$

In Stock, only 1 left!

0

23

Ferris 5107483

WELD, LEFT POWER DEFLECTOR, Z3000, CZ
(Superseded to 5107483FS)

$73.99

$

Usually ships in 2-12 days

0

24

Ferris 5107772

WELD, LEFT SLAVE DEFLECTOR, Z3, CZ
(Superseded to 5107772FS)

$50.99

$

Usually ships in 2-12 days

0

25

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 11

0

26

Ferris 5106903

SCREW, 1/4-20 X 1-3/4, ALLEN, SS
(Superseded to 5106903FS)

$2.49

$

Usually ships in 2-12 days

0

27

Ferris 5107339AA

WELD, UNIVERSAL DEFLECTOR GEAR - BLK
(Superseded to 5107339AAFS)

$48.99

$

Usually ships in 2-12 days

0

28

Ferris 5107332AA

PLATE, DEFLECTOR SPACER - BLK
(Superseded to 5107332AAFS)

$42.99

$

In Stock, only 1 left!

0

29

Ferris 5107333

WELD, RACK KEEPER, CZ
(Superseded to 5107333FS)

$19.99

$

In Stock, only 1 left!

0

30

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

In Stock, Qty 10

0

31

Ferris 5107337

WELD, FORWARD DEFLECTOR PIN, CZ
(Superseded to 5107337FS)

$14.99

$

In Stock, only 3 left!

0

32

Ferris 5107496

WELD, RIGHT DEFLECTOR, Z3000, CZ
(Superseded to 5107496FS)

$102.99

$

Usually ships in 2-12 days

0

33

Ferris 5107329A

PLATE,FW DEFLECTOR MOTOR MNT - BLK
(Superseded to 5107329AFS)

Note: (Plate only, motor shown for reference only.)

$127.99

$

Usually ships in 2-12 days

0

34

Ferris 5107886

Z DEFLECTOR PIN RETAINING CABLE (Pin & Lanyard Assembly)
(Superseded to 5107886FS)

$49.99

$

Usually ships in 2-12 days

0

35

Ferris 5107468

WELD, FRONT DEFLECTOR, Z3000, CZ
(Superseded to 5107468FS)

$97.99

$

Usually ships in 2-12 days

0

36

Ferris 5106919

BOLT, 1/4-20 X 1-1/4, FLANGE, CZ
(Superseded to 5106919FS)

$2.49

$

Usually ships in 2-12 days

0

37

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

38

Ferris 5025668

BOLT, 1/4-20X1-3/4, SER FLG GD5, TFL, CZ
(Superseded to 5025668FS)

$2.99

$

Usually ships in 2-12 days

0
