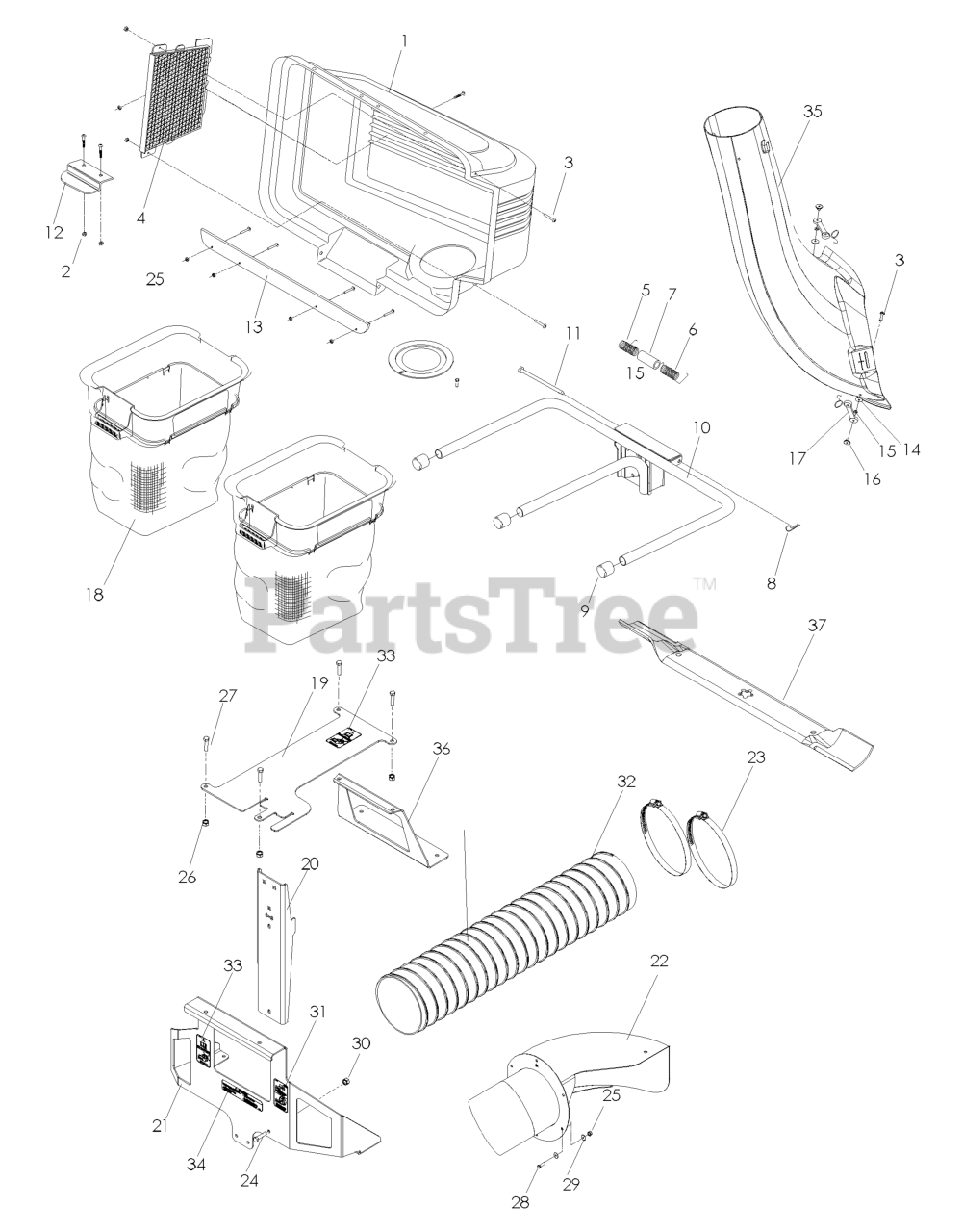

Z 42 (539110164) - Husqvarna Grass Catcher (2008-03) General Assembly Parts Diagram

Grass Catcher

General Assembly Parts Diagram

  • Title

1

Husqvarna 539111139

COVER ASSM, COMPLETE

Note: INCLUDES ITEMS 2-13

$461.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532063180

NUT, #10-24, CROWNLOCK

$

$

Currently unavailable

3

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532127533

SCREEN, COVER

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132796

SPRING, COVER, LH

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532132983

SPRING, COVER RH

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 532133235

SPACER, COVER

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124670

SPRING, RETAINER

$

$

Not available

9

Husqvarna 532174083

CAP, TUBING END

$7.49

$

In Stock, only 2 left!

0

10

Husqvarna 532179746

BAGGER, FRAME

$121.99

$

In Stock, only 1 left!

0

11

Husqvarna 532128600

PIN, HINGE
(Superseded to 532192786)

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532130895

LATCH HANDLE, COVER

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 532155042

STRIP, REINFORCEMENT

$18.99

$

In Stock, only 2 left!

0

14

Husqvarna 539108084

WASHER, 3/16 x 3/4 16 GA

$4.99

$

In Stock, Qty 17

0

15

Husqvarna 539108552

LOCKWASHER

$

$

Not available

16

Husqvarna 539108089

NUT, WELD
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539108194

LATCH ASSM, CHUTE
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 532400226

CONTAINER, SOFT BAG

$87.99

$

In Stock, Qty 20+

0

19

Husqvarna 539111003

PLATE W/DECAL

$103.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539110997

HANGER

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539109930

REAR BRACKET W/DECALS

$

$

Not available

22

Husqvarna 539111134

INLET

$169.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539097076

HOSE CLAMP

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990134

HCS 3/8-16 x 3/4

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 539990598

WASHER 1/4

$

$

Not available

30

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539109929

DECAL, PAYLOAD

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539111136

HOSE, 42"

$75.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539132209

HOSE, 46"
(Superseded to 539131355)

$109.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539109927

DECAL, UTIL BOX WARNING

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109928

DECAL, UTIL BOX PAYLOAD

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539111007

LOWER CHUTE, 42"

$157.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532405455

LOWER CHUTE, 46"

$87.99

$

In Stock, Qty 6

0

36

Husqvarna 539110052

FRONT BRACKET
(Superseded to 539112139)

$54.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532192927

HI LIFT BLADE 42"

$

$

Currently unavailable
