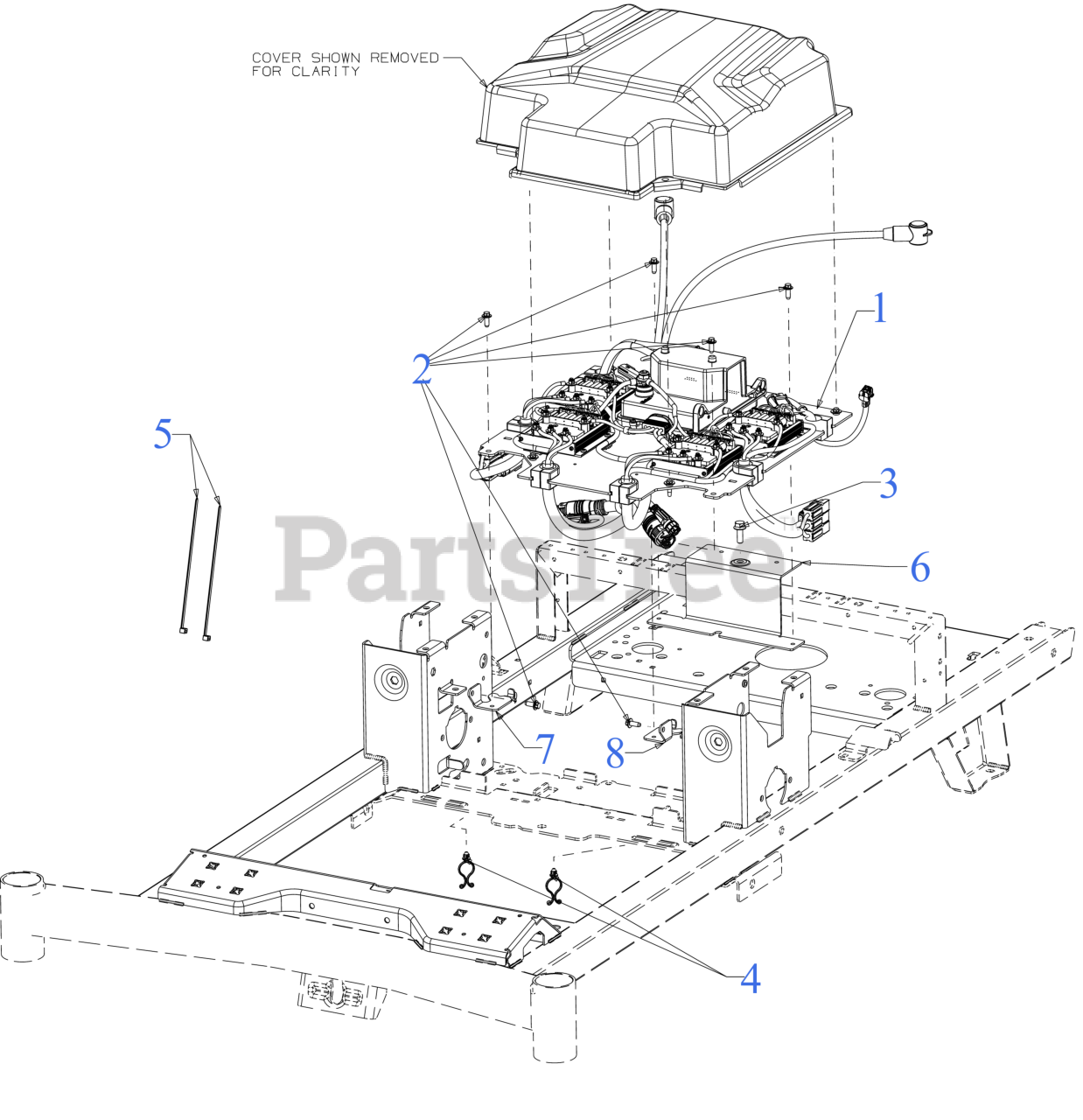

Z 42 E XP (34ABB2CS766) - Troy-Bilt Mustang 42" Zero-Turn Mower, Electric (2023) Electrical Parts Diagram

Mustang 42" Zero-Turn Mower, Electric

Electrical Parts Diagram

  • Title

1

Troy-Bilt NSCO

Not Serviceable/ Components Only

Note: (See Separate Control Panel Breakdown)

$

$

Currently unavailable

2

Troy-Bilt 710-06133

SCREW M6-1 x .625

Note: 45-60 IN-LBS

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-1238A

SCREW 5/16-18 x .875 GR5 HXFLG HD

Note: 179-219 IN-LBS

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 729-07541

TWIST LOCK CLIP

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 703-28098A

PANEL BRACKET (REAR)

$35.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-28099A

PANEL BRACKET (RH)

$15.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-28100A

PANEL BRACKET (LH)

$15.99

$

Usually ships in 3-6 days

0
