Z 42 F (967327701) - Jonsered Zero-Turn Mower (2015-01) FRAME Parts Diagram

Zero-Turn Mower

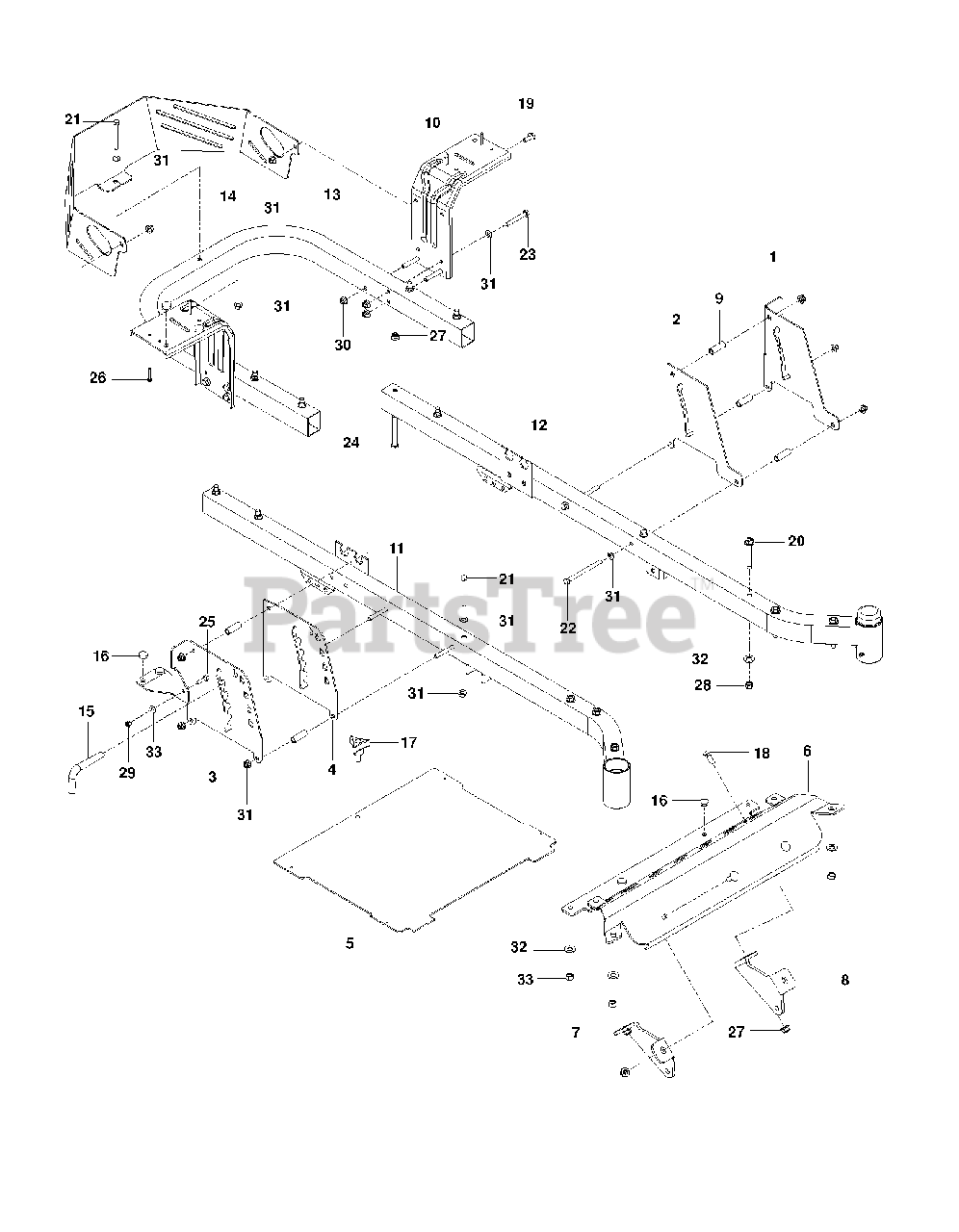

FRAME Parts Diagram

  • Title

1

Jonsered 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Jonsered 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Jonsered 580528002

PLATE.DECK HEIGHT.PNT.431.RZ

$9.99

$

Usually ships in 3-10 days

0

4

Jonsered 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

5

581448603

$

$

Not available

6

522740711

$

$

Not available

7

Jonsered 581222802

MOUNT.STRUT.RH.431

$7.49

$

Usually ships in 3-10 days

0

8

Jonsered 581222902

MOUNT.STRUT.LH.431

$7.49

$

Usually ships in 3-10 days

0

9

Jonsered 580486101

Spacer, .334" ID X .5 OD X 1.5
(Superseded to 580486102)

$2.49

$

In Stock, only 1 left!

0

10

Jonsered 580501302

FENDER.SUPPORT.PNT.X431

$15.99

$

Usually ships in 3-10 days

0

11

Jonsered 510177407

FRAME.JONSERED.LT

$

$

Not available

12

Jonsered 510177507

FRAME.JONSERED.RT

$

$

Not available

13

Jonsered 510177607

(Superseded to 586441007)

$62.99

$

Usually ships in 3-10 days

0

14

Jonsered 522956706

GUARD.PNT.REAR.JONSERED-RED

$133.99

$

Usually ships in 3-10 days

0

15

Jonsered 510016503

Deck Height Pin, Rz
(Superseded to 510016504)

$6.49

$

In Stock, only 3 left!

0

16

Jonsered 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

17

Jonsered 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

18

Jonsered 872110608

BOLT D

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

21

Jonsered 874780544

BOLT HEX**
(Superseded to 596218601)

$3.99

$

Usually ships in 3-10 days

0

22

Jonsered 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 874780536

BOLT NLA

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 874780648

BOLT
(Superseded to 596564405)

$3.99

$

In Stock, Qty 12

0

25

Jonsered 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

27

Jonsered 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 20+

0

29

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

33

Jonsered 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 13

0
