Z 4217 (968999280) - Husqvarna 42" Zero-Turn Mower (2006-04) TRANSMISSION Parts Diagram

42" Zero-Turn Mower

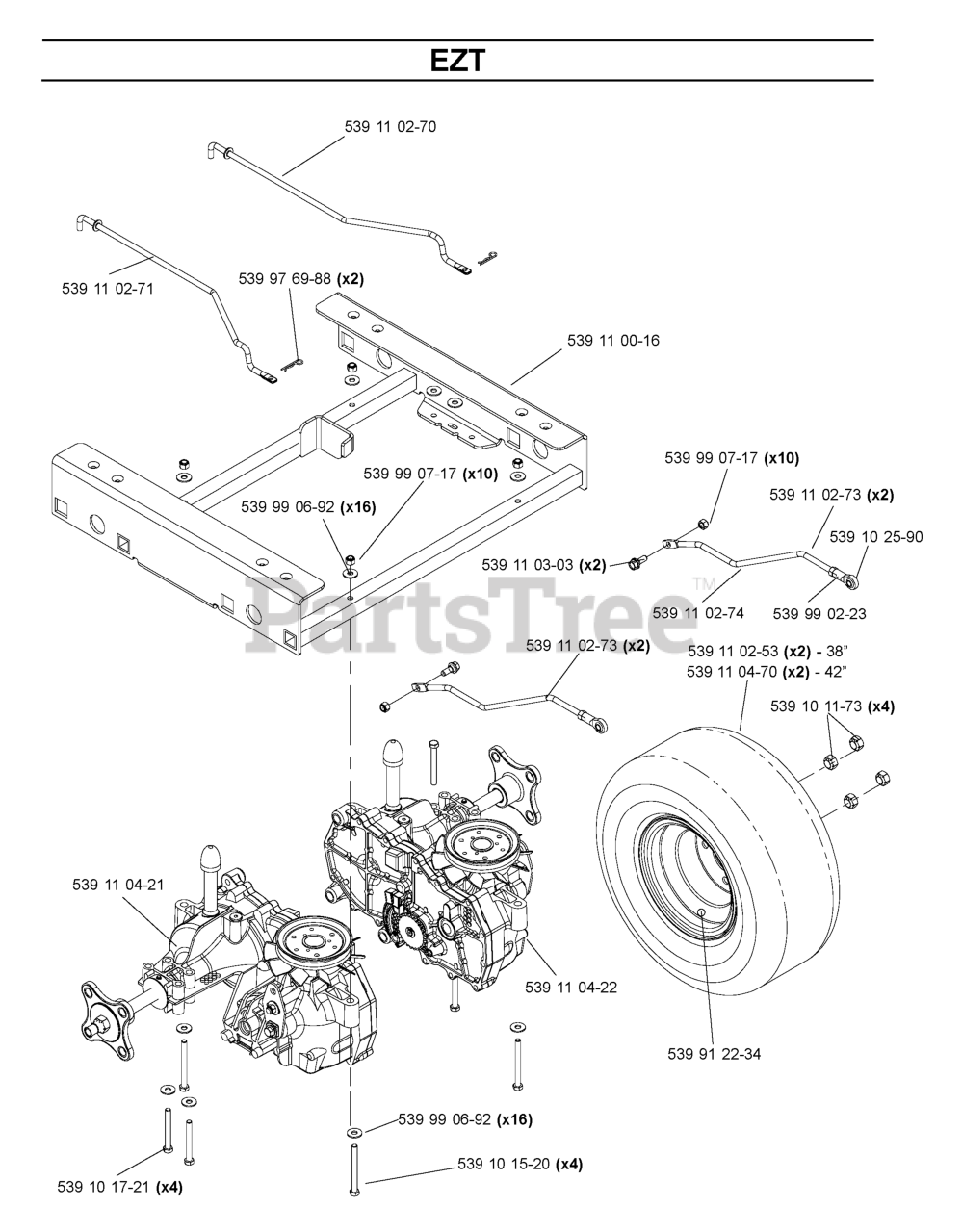

TRANSMISSION Parts Diagram

  • Title

539 99 02-23

Husqvarna 539990223

NUT 5/16F
(Superseded to 596040901)

$3.49

$

In Stock, Qty 12

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

539 97 69-88

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 10

0

539 91 22-34

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

539 11 04-70

Husqvarna 539110470

WHEEL ASM.18X8.5-8.KENDA.
(Superseded to 581197301)

$193.99

$

Usually ships in 3-10 days

0

539 11 02-73

Husqvarna 539110273

MOTION CONTROL ROD ASM

$

$

Not available

539 11 02-70

Husqvarna 539110270

BYPASS LINKAGE, LEFT

$22.99

$

In Stock, only 4 left!

0

539 11 04-21

Husqvarna 539110421

HG_EZT RIGHT
(Superseded to 539110487)

$

$

Not available

539 11 02-53

Husqvarna 539110253

TIRE/WHEEL.ASSEM.18X7.5-8.ZTR

$170.99

$

Usually ships in 3-10 days

0

539 10 15-20

Husqvarna 539101520

HCS 5/16-18 X 3 1/4

$3.49

$

Usually ships in 3-10 days

0

539 11 03-03

Husqvarna 539110303

BOLT, SHOULDER
(Superseded to 596240701)

$4.99

$

In Stock, only 2 left!

0

539 10 11-73

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 15

0

539 10 25-90

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$26.99

$

In Stock, only 2 left!

0

539 11 02-71

Husqvarna 539110271

BYPASS LINKAGE, RIGHT

$

$

Not available

539 11 00-16

Husqvarna 539110016

SUB FRAME PAINTED
(Superseded to 522771301)

$

$

Not available

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 17-21

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 12

0

539 11 02-74

Husqvarna 539110274

MOTION ROD

$20.99

$

Usually ships in 3-10 days

0

539 11 04-22

Husqvarna 539110422

HG_EZT LEFT
(Superseded to 539110486)

$

$

Not available
