Z 454x - Husqvarna 54" Zero-Turn Mower BRAKE Parts Diagram

54" Zero-Turn Mower

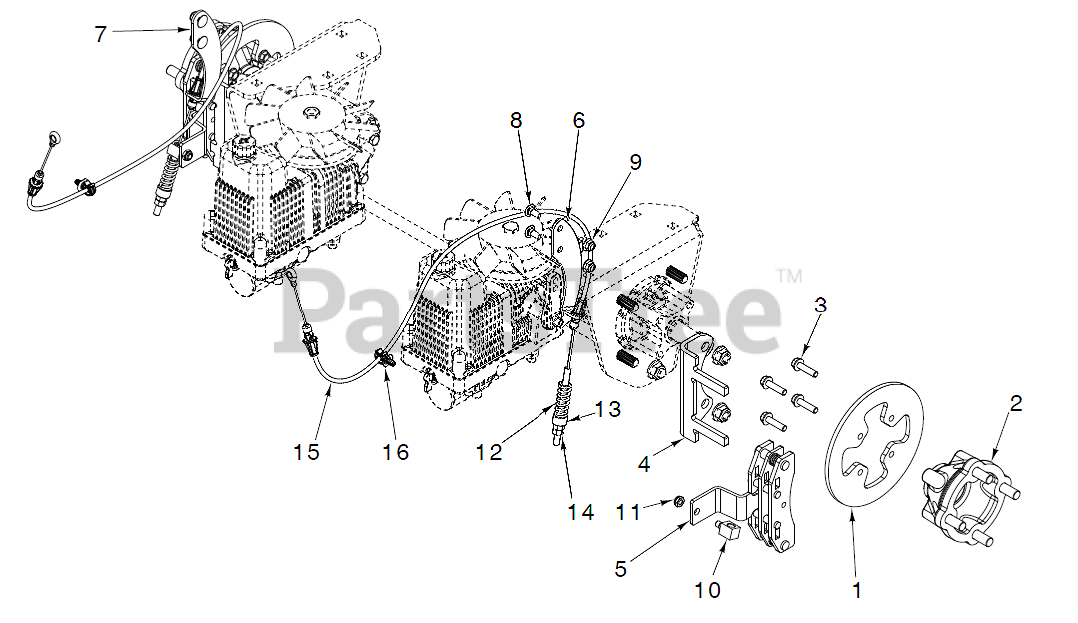

BRAKE Parts Diagram

  • Title

7

Husqvarna 597537102

Brackets

Note: "BRACKET, CABLE, BRAKE RH"

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 597826901

Springs

Note: SPRING 2.00L X .50ID; 150LB_IN

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 596433601

Nuts

Note: NUT 5/16-18 INSERT 5/16-18 X 1/4

$2.49

$

In Stock, only 2 left!

0

2

Husqvarna 595967702

Hubs

Note: HUB CASTING W/ STUDS

$87.99

$

Usually ships in 3-10 days

0

9

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: NUT HEXAGON FLANGE 5/16-18

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 539923515

SPACER

Note: SPACER

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597773501

Cables

Note: "CABLE BRAKE, PARKING DISC"

$27.99

$

Usually ships in 3-10 days

0

1

Husqvarna 597537201

Rotors

Note: ROTOR BRAKE

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525544002

Bolts

Note: "BOLT 5/16-18UNC X 1,25 '' Grade 5"

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 592857401

CABLE, 1/4 BLACK FIR TREE

Note: "CLIP CABLE, 1/4 BLACK FIR TREE"

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 597537101

Brackets

Note: "BRACKET, CABLE, BRAKE LH"

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 597536901

Brakes

Note: "CALIPER BRAKE, PARK"

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 596040901

Hardware

Note: HEX NUT 5/16-24 IN GRF

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 595901601

GSPW Bolts

Note: "BOLT 5/16-18UNC X 0,75 '' Grade 5"

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 597537001

Brackets

Note: "BRACKET MTG, CALIPER HTE10"

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 525851402

Swivels

Note: SWIVEL BRAKE CLEAR ZINC

$3.99

$

Usually ships in 3-10 days

0
