Z 4801M (80001) - Snapper 48" Mower Deck Assembly Jack Shaft Parts Parts Diagram

48" Mower Deck Assembly

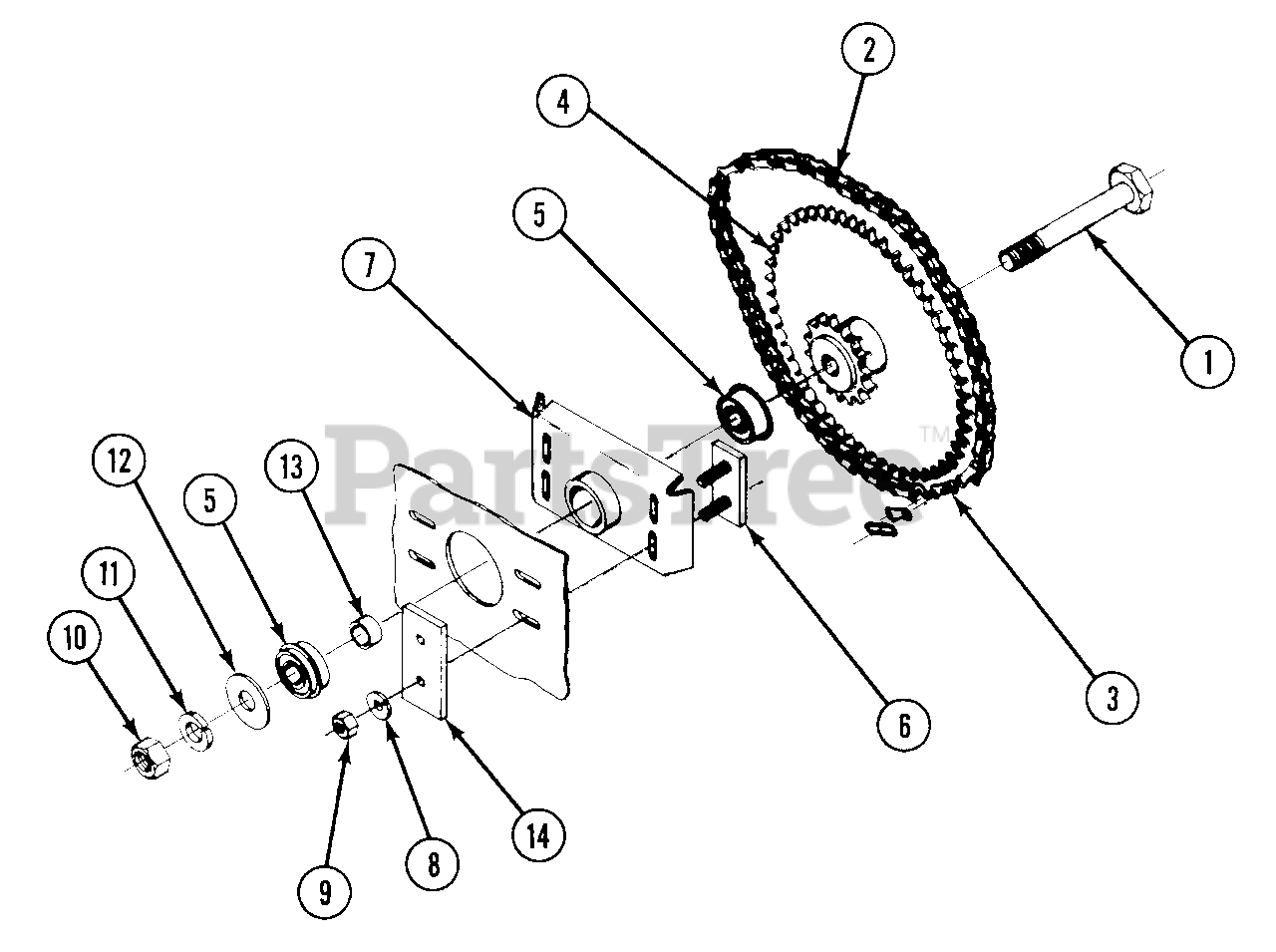

Jack Shaft Parts Parts Diagram

  • Title

1

Snapper 7079027

JACK SHAFT BOLT, SPECIAL, 3/4-10 THRD

$

$

Not available

2

Snapper 7079085

#40 CHAIN
(Superseded to 7079085YP)

$56.99

$

Usually ships in 2-12 days

0

3

Snapper 79165

MASTER LINKS #40 CHAIN

$

$

Currently unavailable

4

Snapper 7079347

DOUBLE SPROCKET, #50-15 & #40-60
(Superseded to 7079347YP)

$333.99

$

Usually ships in 2-12 days

0

5

Snapper 7079161

BEARINGS .750 BORE
(Superseded to 7079161YP)

$108.99

$

Usually ships in 2-12 days

0

6

Snapper 7079101

DOUBLE BOLT WELDMENT, 3/8-16

$

$

Currently unavailable

7

Snapper 7079068

JACK SHAFT IDLER WELDMENT
(Superseded to 7079068YP)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 7079268

LOCKWASHER, 3/8 HEAVY, SPLIT SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

9

Snapper 7090499

LOCKNUT, HEX, 3/8-16
(Superseded to 7090499YP)

Note: Was 79261

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7079285

NUTS HEX, 3/4-10
(Superseded to 7079285YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7079287

LOCKWASHER, 3/4 STD, SPLIT SPRING

$

$

Not available

12

Snapper 7090863

WASHER, 3/4 STD, FLAT
(Superseded to 7090863YP)

Note: Was 79275

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7079005

BEARING SPACER
(Superseded to 7079005YP)

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 7079100

DOUBLE WASHER

$

$

Currently unavailable
