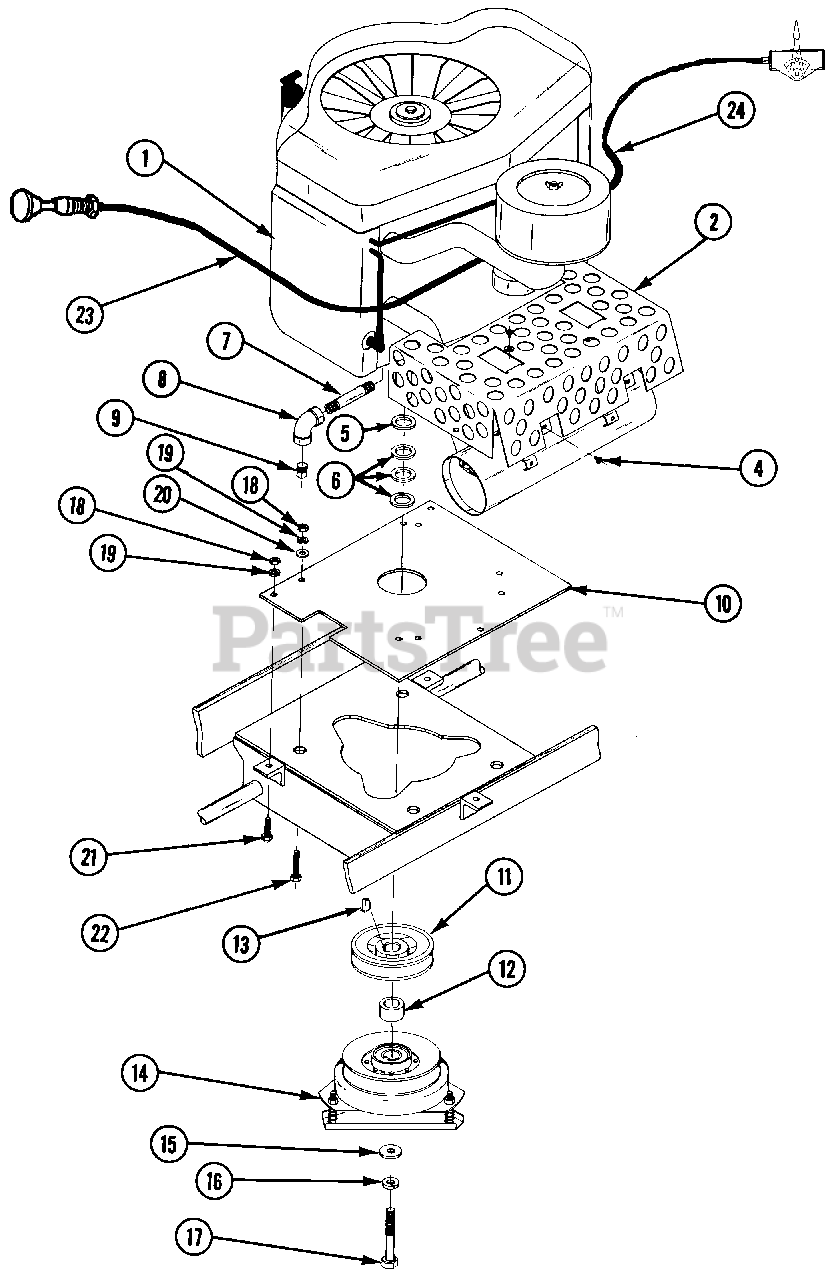

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Twin Cylinder Engine Assembly, Kohler Parts Diagram

48" Mower Deck Assembly

Twin Cylinder Engine Assembly, Kohler Parts Diagram

  • Title

1

* ENGINE, 20 HP KOHLER Mod. MV20S-57512

* ENGINE, 20 HP KOHLER Mod. MV20S-57512

$

$

Not available

2

Snapper 7079144

MUFFLER GUARD

$

$

Currently unavailable

4

Snapper 7079424

SCREW, #8 X 1/2 SHEET METAL MUFFLER GUARD
(Superseded to 7079424YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7079427

WASHER, 1-1/2 OD X 1-1/8 ID X 1/16 THK

$

$

Currently unavailable

6

Snapper 7079426

WASHER, 1-1/2 OD X 1-1/8 ID X 1/8 THK

$

$

Currently unavailable

7

Snapper 7079425

NIPPLE, 3/8 X 4, SCH. 40, BLACK

$

$

Currently unavailable

8

Snapper 7079210

ELBOWS 3/8, 90 DEGREE, SCH. 40

$

$

Currently unavailable

9

Snapper 7079367

3/8 PIPE PLUG

$

$

Not available

10

Snapper 7079114

MOTOR MOUNTING PLATE

$

$

Not available

11

Snapper 7079423

PULLEY BK50 1-1/8 ID 4" A PITCH
(Superseded to 7079423YP)

$133.99

$

Usually ships in 2-12 days

0

12

Snapper 7079071

SPACER, PULLEY/ELECTRIC CLUTCH
(Superseded to 7079071YP)

$21.99

$

Usually ships in 2-12 days

0

13

Snapper 7091978

KEY, WOODRUFF 1/4 X 3/4
(Superseded to 7091978YP)

Note: Was 79159

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7079446

CLUTCH, ELECTRIC #5210-17
(Superseded to 7079446YP)

$715.99

$

Usually ships in 2-12 days

0

15

Snapper 7079022

WASHER, 15/32" ID

$

$

Not available

16

Snapper 7091301

LOCKWASHER, 7/16 SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7023388

CAPSCREW, 7/16-20 X 3, GRADE 5

Note: Was 79314

$

$

Not available

18

Snapper 7090789

NUT, 5/16-24 UN, GRADE 5

Note: Was 79324

$

$

Not available

19

Snapper 7079267

LOCKWASHER, 5/16 HEAVY SPRING
(Superseded to 7079267YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7090188

WASHER, FLATS STD, STEEL, 5/16"
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 3 left!

0

21

Snapper 7090238

CAPSCREW, HEX, 5/16-24 X 1, GRADE 5
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7091609

CAPSCREW, HEX, 5/16-24 X 1-1/2, GRADE 5
(Superseded to 7091609SM)

Note: Was 79325

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 7079140

CHOKE CABLE

$

$

Not available

24

Snapper 7079141

THROTTLE CABLE

$

$

Not available

Snapper 7079241

TAG "NOTICE ADD OIL, GAS, ETC."

$

$

Currently unavailable

Snapper 7079237

DECAL "PERIODICALLY CLEAN"
(Superseded to 7079237YP)

$7.99

$

Usually ships in 2-12 days

0
