Z 4818 BIA (968999250) - Husqvarna 48" Zero-Turn Mower (2004-09) Brake Linkage Parts Diagram

48" Zero-Turn Mower

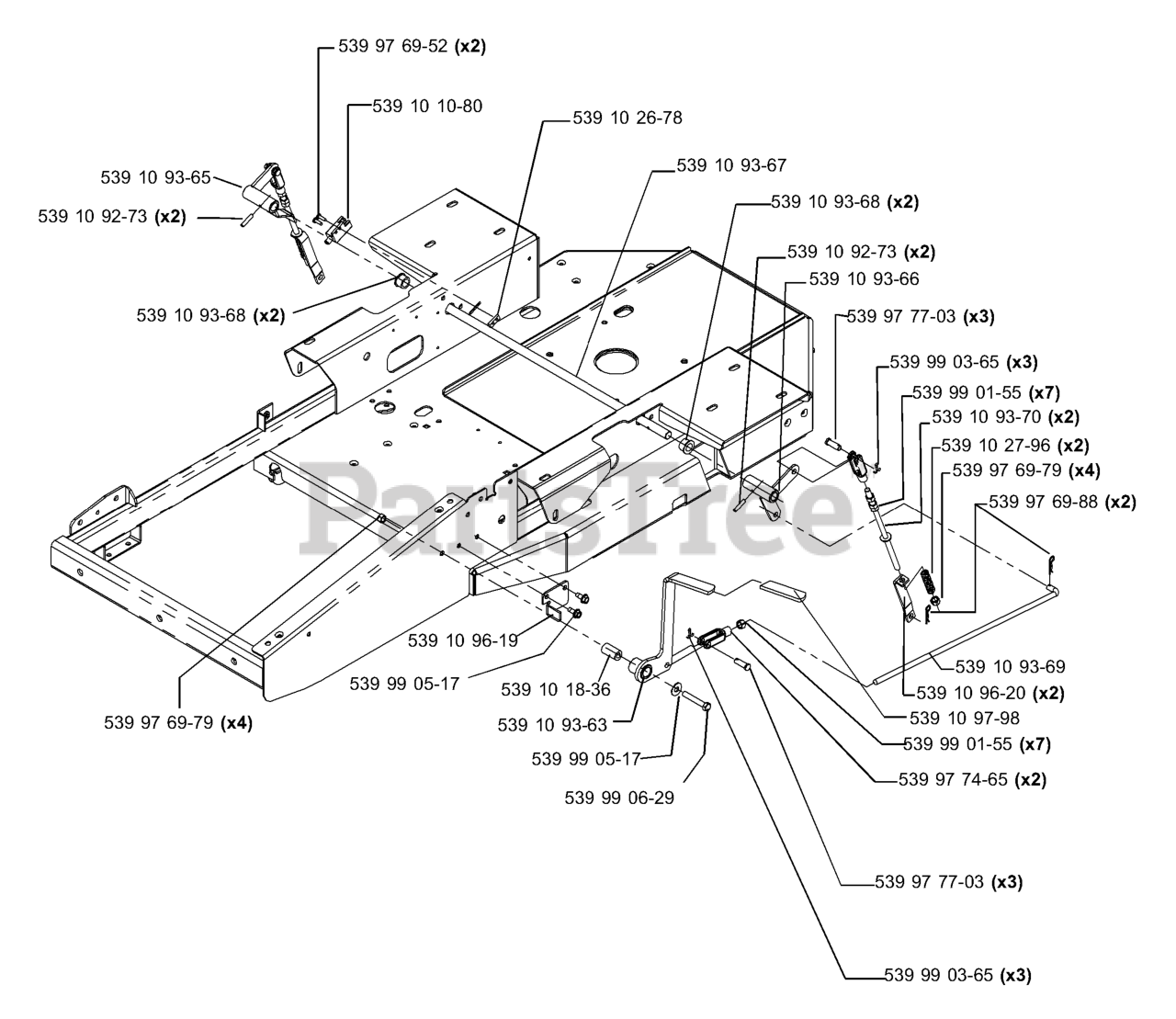

Brake Linkage Parts Diagram

  • Title

539101080

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, Qty 20+

0

539101836

Husqvarna 539101836

BUSHING, SLEEVE

$5.99

$

Usually ships in 3-10 days

0

539102678

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0

539102796

Husqvarna 539102796

SPRING

$

$

Not available

539109273

Husqvarna 539109273

PIN ROLL 1/4 X 1-1/8

$3.99

$

Usually ships in 3-10 days

0

539109363

Husqvarna 539109363

BRAKE LEVER WLDMT

$46.99

$

Usually ships in 3-10 days

0

539109365

Husqvarna 539109365

RT BRAKE BELLCRANK

$26.99

$

Usually ships in 3-10 days

0

539109366

Husqvarna 539109366

LT BRAKE BELLCRANK

$34.99

$

Usually ships in 3-10 days

0

539109367

Husqvarna 539109367

BRAKE CROSS SHAFT

$21.99

$

Usually ships in 3-10 days

0

539109368

Husqvarna 539109368

PLASTIC BUSHING

$

$

Not available

539109369

Husqvarna 539109369

MAIN LINKAGE, BRAKE

$

$

Not available

539109370

Husqvarna 539109370

SECONDARY LINKAGE

$

$

Not available

539109619

Husqvarna 539109619

OVERCENTER STOP

$17.99

$

Usually ships in 3-10 days

0

539109620

Husqvarna 539109620

CONNECTING LINK

$10.99

$

Usually ships in 3-10 days

0

539109798

Husqvarna 539109798

GRIP, PARK BRAKE

$4.99

$

Usually ships in 3-10 days

0

539976952

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 16

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976988

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

539977465

Husqvarna 539977465

YOKE-3/8-24 PLTD

$34.99

$

Usually ships in 3-10 days

0

539977703

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 10

0

539990155

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

539990365

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$8.99

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990629

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0
