Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

Zero-Turn Mower

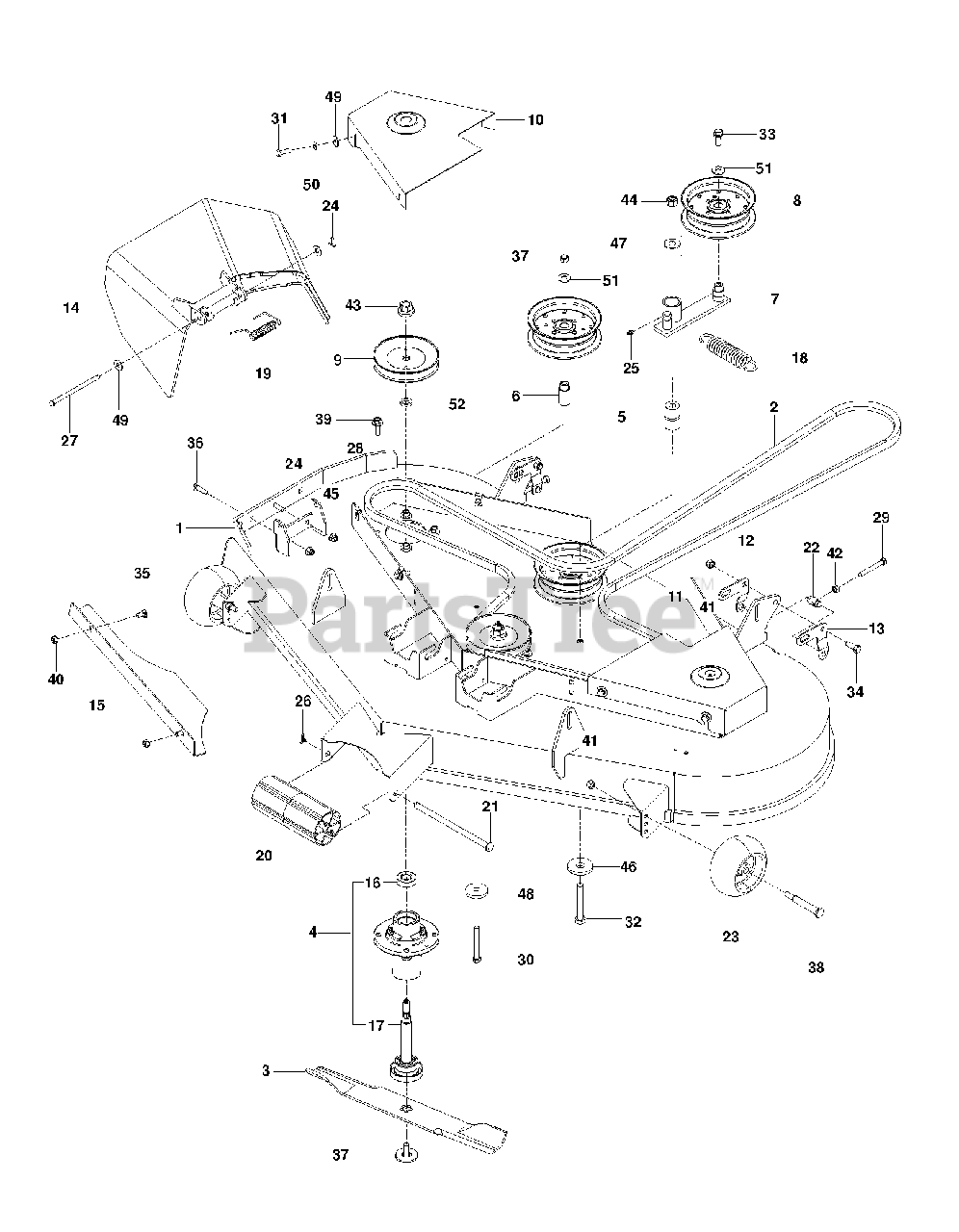

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

581297904

$

$

Not available

2

Jonsered 539107095

BELT

$121.99

$

In Stock, only 4 left!

0

3

Jonsered 539112079

BLADE, 18"

$24.99

$

In Stock, Qty 20+

0

4

Jonsered 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 20+

0

5

Jonsered 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 8

0

6

Jonsered 539112169

IDLER BUSHING
(Superseded to 596841501)

$7.99

$

In Stock, Qty 20+

0

7

Jonsered 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

8

Jonsered 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

9

Jonsered 532173436

PULLEY MANDREL

$10.99

$

In Stock, Qty 20+

0

10

Jonsered 577260302

BELTSHIELD.PNT.RH.52.X428

$

$

Not available

11

Jonsered 577260402

BELTSHIELD.PNT.LH.52.BLACK

$

$

Not available

12

Jonsered 584859402

Bracket, RH

$4.99

$

In Stock, only 1 left!

0

13

Jonsered 584859404

Bracket, LH

$4.99

$

In Stock, only 4 left!

0

14

Jonsered 539110733

DISCHARGE CHUTE 52"

$53.99

$

In Stock, Qty 20+

0

15

Jonsered 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$14.99

$

Usually ships in 3-10 days

0

16

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

17

Jonsered 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$25.99

$

In Stock, Qty 20+

0

18

Jonsered 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

19

Jonsered 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 18

0

20

Jonsered 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

21

Jonsered 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

22

Jonsered 539131859

TRUNION, PITCH
(Superseded to 596565501)

$12.99

$

In Stock, only 1 left!

0

23

Jonsered 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

24

Jonsered 581606004

BRACKET.PNT.MZ.CHUTE.JNX667

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

26

Jonsered 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 16

0

29

Jonsered 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

$3.99

$

In Stock, only 3 left!

0

30

Jonsered 874780648

BOLT
(Superseded to 596564405)

$3.99

$

In Stock, Qty 12

0

31

Jonsered 874780516

BOLT RB

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 15

0

33

Jonsered 539990582

HCS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 539990563

HCS 3/8C X 1
(Superseded to 596564401)

$3.99

$

In Stock, Qty 20+

0

35

Jonsered 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

36

Jonsered 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

37

Jonsered 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

38

Jonsered 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

39

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$3.49

$

In Stock, Qty 20+

0

40

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

41

Jonsered 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Jonsered 539990196

NUT 5/16C HEX
(Superseded to 596582601)

$3.99

$

In Stock, only 3 left!

0

43

Jonsered 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

44

Jonsered 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$3.99

$

In Stock, Qty 18

0

47

Jonsered 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

48

Jonsered 539106504

SPINDLE WASHER
(Superseded to 596770301)

$4.99

$

In Stock, Qty 20+

0

49

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 810030500

Lock Washer, 5/16
(Superseded to 539990187)

$3.99

$

Usually ships in 3-10 days

0

51

Jonsered 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0
