Z 5400 (CMXGNAM211702) (17ARFACT093) - Craftsman 46" Zero-Turn Mower (2022) Front Caster Parts Diagram

46" Zero-Turn Mower

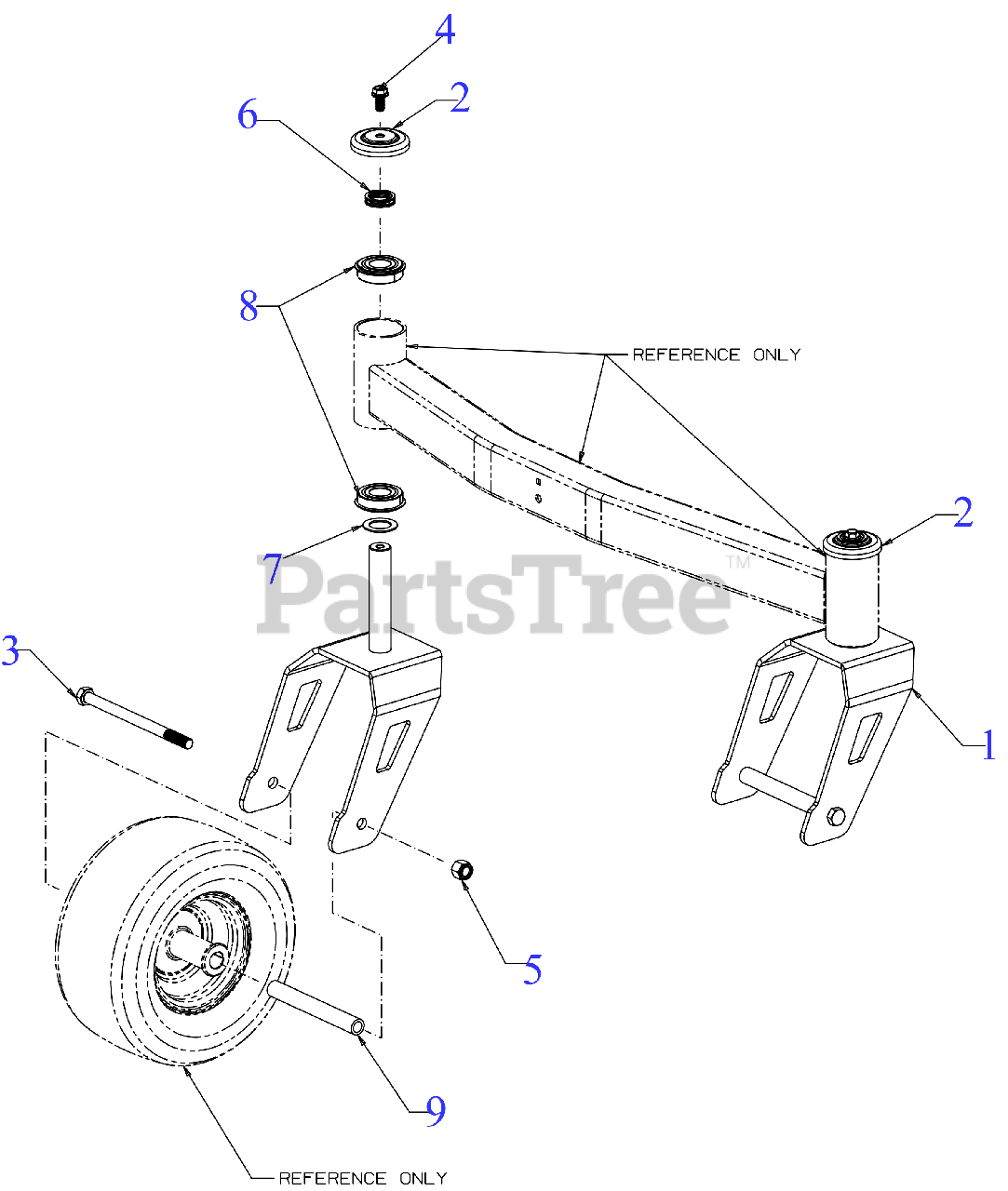

Front Caster Parts Diagram

  • Title

1

MTD 603-05839

CASTER WHEEL YOKE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-05839-0606

CASTER WHEEL YOKE (MAJESTIC ORANGE) - MAJESTIC ORANGE

$96.99

$

Usually ships in 3-6 days

0

MTD 603-05839-0638

CASTER WHEEL YOKE (MTD RED) - MTD/TROY-BILT RED

$96.99

$

Usually ships in 3-6 days

0

MTD 603-05839-4033

CASTER WHEEL YOKE (FLINT MICA) - FLINT MICA

$107.99

$

Usually ships in 3-6 days

0

MTD 603-05839-0637

CASTER WHEEL YOKE (POWDER BLACK) - POWDER BLACK

$

$

Not available

$93.99

$

Usually ships in 3-6 days

0

2

MTD 703-11503B

AXLE CAP

$7.99

$

In Stock, only 2 left!

0

3

MTD 710-04652

BOLT 1/2-20 x 7.25 GR5

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.49

$

In Stock, only 1 left!

0

5

MTD 712-04316

NUT

$3.99

$

In Stock, Qty 8

0

6

MTD 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 20+

0

7

MTD 736-0745

WASHER 1.010X1.560X.060

$12.99

$

In Stock, Qty 6

0

8

MTD 941-05022A

BALL BEARING 25X52X15

$20.99

$

In Stock, Qty 18

0

9

MTD 750-07010

CASTER AXLE SPACER

$13.99

$

In Stock, Qty 9

0
