Z 548 L - Husqvarna 48" Zero-Turn Mower WHEELS & TIRES Parts Diagram

48" Zero-Turn Mower

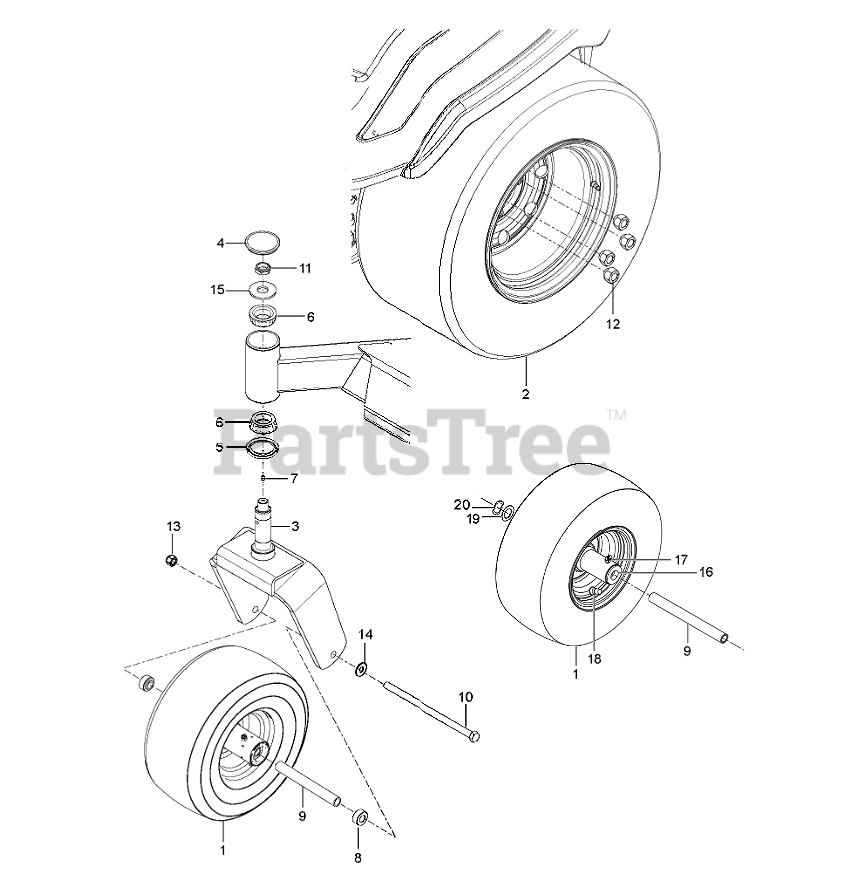

WHEELS & TIRES Parts Diagram

  • Title

17

Husqvarna 596623501

Zerks

$3.99

$

In Stock, only 4 left!

0

1b

Husqvarna 581199501

TIRE.ASSEM.CASTER.13X6.5-6.SIL

Note: Use after SN: 090920F000001

$227.99

$

In Stock, Qty 6

0

9a

Husqvarna 590704902

GSPW Spacers

Note: Use From SN: 060117F000001 To SN: 090820F999999

$5.99

$

In Stock, Qty 14

0

20

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

Note: Use after SN: 090920F000001

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539102484

BEARING RETAINER

Note: Use after SN: 090920F000001

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 599405101

Shims

Note: Use after SN: 090920F000001

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 510034403

CONE, LM67048

$14.99

$

In Stock, only 2 left!

0

12

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

5

Husqvarna 510034301

SEAL, BEARING

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 510154502

RIM, 12 X 8.5 W/1.75 NEG OS

Note: Rim Only

$182.99

$

Usually ships in 3-10 days

0

10

Husqvarna 594946501

GSPW Screws

$6.99

$

In Stock, Qty 19

0

3

Husqvarna 525611902

FORK.CASTER.ORANGE

$250.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539912234

VALVE STEM TR-412

Note: Use after SN: 090920F000001

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 539105152

TIRE.24X12-12.TURF.MASTER

Note: 24x12-12 Tire Only

$284.99

$

Usually ships in 3-10 days

0

9b

Husqvarna 575334901

SPACER, PIVOT

Note: Use after SN: 090920F000001

$24.99

$

In Stock, Qty 20+

0

1b

Husqvarna 539105522

TIRE - SMOOTH 13X6.50-6

Note: 13X6.5-6 Tire Only Use After SN: 090920F000001

$120.99

$

Usually ships in 3-10 days

0

8

Husqvarna 590690701

SPACER.AXLE

Note: Use From SN: 060117F000001 To SN: 090820F999999

$

$

Not available

15

Husqvarna 574824701

WASHER, 3/4 HARDENED

$

$

Not available

14

Husqvarna 595086801

Washers

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

Note: Use after SN: 090920F000001

$13.99

$

In Stock, Qty 20+

0

11

Husqvarna 522842602

Nuts

$4.99

$

In Stock, only 4 left!

0

1a

Husqvarna 597383801

PZ CASTER SERVICE KIT

Note: Use From SN: 060117F000001 To SN: 090820F999999

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 510034001

CAP, DUST

$

$

Not available

2

Husqvarna 510154501

WHEEL/TIRE.ASM.24X12-12.SILVER

Note: Tire & Rim Assembly

$545.99

$

In Stock, only 1 left!

0

7

Husqvarna 596623501

Zerks

$3.99

$

In Stock, only 4 left!

0

1a

Husqvarna 510154601

TIRE, 13 X 6.5-6 NO FLAT

Note: Use From SN: 060117F000001 To SN: 090820F999999

$284.99

$

In Stock, only 2 left!

0
