Z 554 (967669601-00) - Husqvarna 54" Zero-Turn Mower (2017-06) STEERING Parts Diagram

54" Zero-Turn Mower

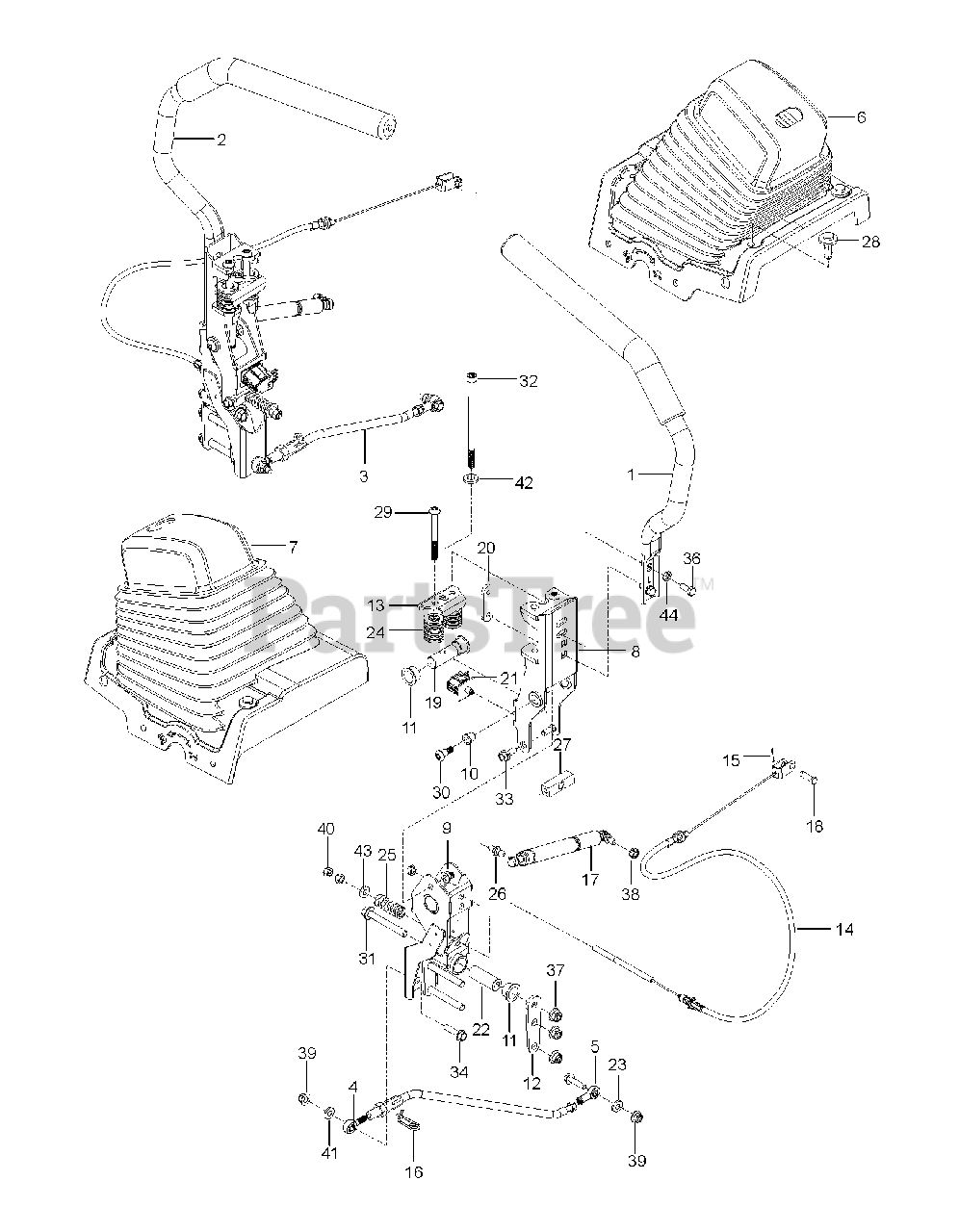

STEERING Parts Diagram

  • Title

1

Husqvarna 582475501

Drive Lever Assembly, LH

$62.99

$

In Stock, only 1 left!

0

2

Husqvarna 582475502

Drive Lever Assembly, RH

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501567401

ROD.ASM.CONTROL.PZ.4400.LH
(Superseded to 596925801)

$43.99

$

Usually ships in 3-10 days

0

Husqvarna 501567501

ROD.ASM.CONTROL.PZ.4400.RH
(Superseded to 596925901)

$74.99

$

Usually ships in 3-10 days

0

4

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 579764601

Joint Heim, Feml.516.R

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 591193301

KIT.SERVICE.LEVER.BELLOW.LH

Note: . 6 28

$96.99

$

In Stock, only 1 left!

0

7

Husqvarna 591193302

KIT.SERVICE.LEVER.BELLOW.RH

Note: . 7 28

$96.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582476502

CARRIER.PNT.WELD.UPPER.LH.EDIP

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582475802

CARRIER.PNT.WLDMT.LOWER.EDIP

$136.99

$

Usually ships in 3-10 days

0

10

Husqvarna 582476801

BEARING.FLG.3/8.SHAFT.1/2.HSG

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 11

0

12

Husqvarna 582475102

BRACKET.PNT.CONTROLS.MTG.EDIP

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 582476901

BRACKET.RETAINING.SPRING
(Superseded to 582476902)

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582477501

Parking Brake Cable

$34.99

$

In Stock, only 2 left!

0

15

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 11

0

16

Husqvarna 582551901

CLIP.RETAINER.CONTROLS

$10.99

$

In Stock, only 1 left!

0

17

Husqvarna 588775401

DAMPER

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582477401

PIN.CLEVIS.5/16.DIA.3/4.USABLE
(Superseded to 582477402)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 589505101

PIVOT
(Superseded to 589505102)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589489601

RETAINER

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 589500901

SWITCH.SNPMNT.DELTA.NCNC.PZREF

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582475001

SPACER.PIVOT
(Superseded to 582475002)

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 582711303

SPACER.7_16OD;5_16ID;STEP.UP
(Superseded to 582711304)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 582477001

SPRING 1.25"ODX1.5"L
(Superseded to 582477002)

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532151332

SPRING, BRAKE ROD

$5.99

$

In Stock, Qty 5

0

26

Husqvarna 539110607

STUD.BALL.10MM

$

$

Not available

27

Husqvarna 582477201

CABLE.YOKE.PARK.BRAKE
(Superseded to 582477202)

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 582482901

RIVET.PUSH.PIN.0.25IN.HOLE

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 582477101

SCREW.SHCS.5/16-18 X 3-1/2"
(Superseded to 582477102)

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 582476401

SCREW.SHLDR.3/8 X 1/2.5/16-18
(Superseded to 582476402)

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 589505601

SCREW.SHCS.3/8-16 X 6L.ZY
(Superseded to 589505602)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539110303

BOLT, SHOULDER
(Superseded to 596240701)

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

36

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

38

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

39

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 11

0

40

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0

42

Husqvarna 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.49

$

In Stock, only 2 left!

0
