Z 554 - Husqvarna 54" Zero-Turn Mower HYDRAULIC PUMP - MOTOR Parts Diagram

54" Zero-Turn Mower

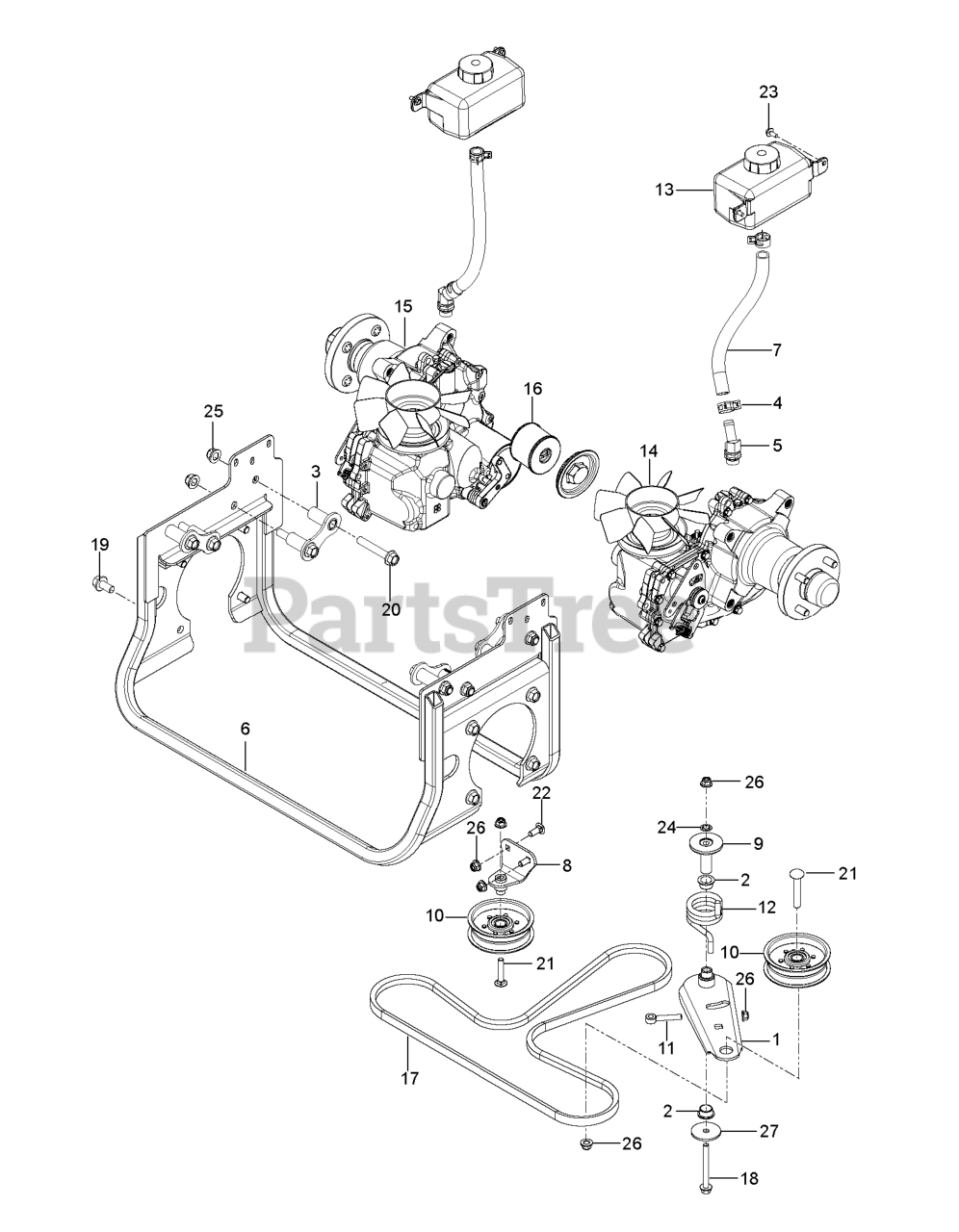

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

11

Husqvarna 582716201

ROD.END.3/8-16 X 3.STEEL

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 582480101

CLAMP.CT.15/16"HOSE.OD

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD
(Superseded to 596789601)

Note: For 967844301-00, 967669601, 967669602-00

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586933802

MOUNT.PNT.IDLER.FIXED.EDIP

$20.99

$

In Stock, only 2 left!

0

22

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 582468101

SHAFT.MOUNT.ARM.IDLER
(Superseded to 582468102)

$26.99

$

In Stock, only 2 left!

0

7

Husqvarna 582480203

HOSE.HYD.5/8ID.7/8OD.350PSI.11
(Superseded to 582480207)

$26.99

$

Usually ships in 3-10 days

0

16

Husqvarna 576127202

FILTERS

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD
(Superseded to 596637401)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 582480401

V-BELT.BX 77".ZT-4400

$43.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588748902

TRANSMISSION.ZT-4400.RH

$2507.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582480301

FITTING ELB 45 DEG 10HB-10MAOR

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 582479102

BRACKET.PNT.MTG.XMSN.EDIP

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 582479402

FRAME.PNT.XMSN.ZT-4400.EDIP

$626.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 588748901

TRANSMISSION.ZT-4400.LH

$6268.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532165857

SCREW.HX.WSH.HD

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 17

0

26

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

13

Husqvarna 574499201

HG_TANK, EXPANSION

$37.99

$

In Stock, only 1 left!

0

1

Husqvarna 582463102

ARM.PNT.IDLER.WELDMENT.EDIP

$56.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.49

$

In Stock, only 4 left!

0

2

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, Qty 18

0

12

Husqvarna 582468401

SPRING.TORSION

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD
(Superseded to 574210602)

$3.49

$

In Stock, Qty 5

0

20

Husqvarna 874490848

HFFS 1/2-13 X 3 GD 5 ZD
(Superseded to 596789601)

Note: For 967929801-00

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587654101

PULLEY.IDLER.BACKSIDE

$51.99

$

In Stock, only 2 left!

0
