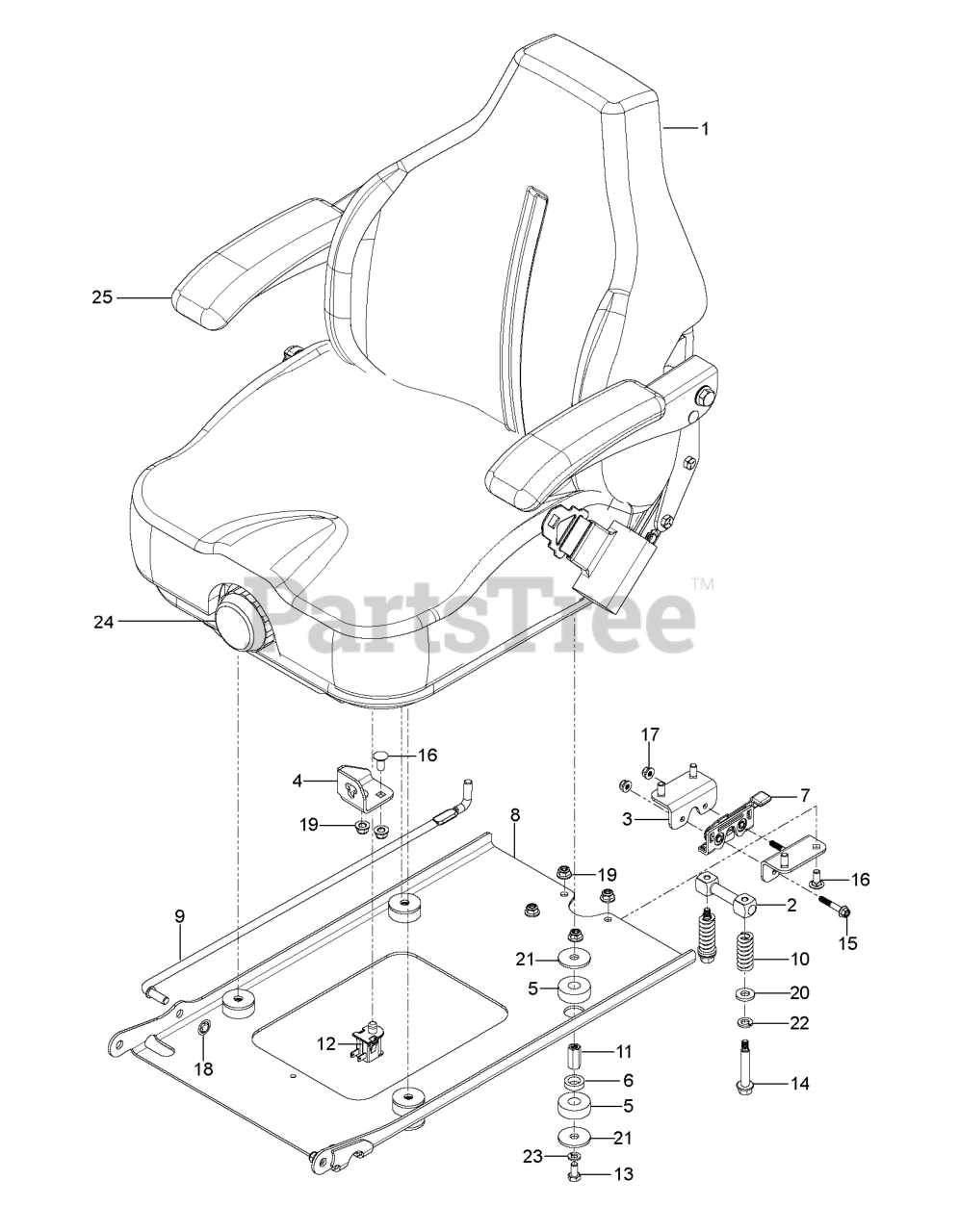

Z 560 L - Husqvarna 60" Zero-Turn Mower SEAT Parts Diagram

60" Zero-Turn Mower

SEAT Parts Diagram

  • Title

12

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 4 left!

0

6

Husqvarna 539116377

ISO-MOUNT INSERT

$4.99

$

In Stock, Qty 5

0

8

Husqvarna 590506802

PLATE.PNT.MTG.SEAT.EDIP

$205.99

$

Usually ships in 3-10 days

0

25

Husqvarna 579866108

Arms

Note: REPLACEMENT PAD ONLY

$85.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 2 left!

0

3

Husqvarna 582478201

BRACKET.MTG.LATCH
(Superseded to 582478203)

$20.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 582478601

NUT.FLG.NYLOCK.1/4-20.GR.G.ZY
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 579866109

Suspension

Note: Knob

$68.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 582478901

SCREW.SHLDER.3/8" DIA X 2.5/16
(Superseded to 582478902)

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.49

$

In Stock, Qty 19

0

1

Husqvarna 579866104

SUSPENSION SEAT

$1427.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

4

Husqvarna 590555002

BRACKET.SEAT.STAY.ROD

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582478801

BAR.LATCH.SEAT
(Superseded to 582478802)

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582460103

SEAT

Note: Fits 97058500100

$1823.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590373501

LATCH.ROTARY

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 582478501

SCREW.HHFS.1/4-20X1.5".GR8.ZY
(Superseded to 582478502)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 590507201

ROD.SEAT.STAY
(Superseded to 590507202)

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590481801

ISOLATOR

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 11

0

11

Husqvarna 582478101

NUT.HEX.COUPLING.5/16-18X1-1/8
(Superseded to 582478102)

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.49

$

In Stock, Qty 20+

0
