Z 560x (967669703-01) - Husqvarna 60" Zero-Turn Mower (2020-04) CONSOLE Parts Diagram

60" Zero-Turn Mower

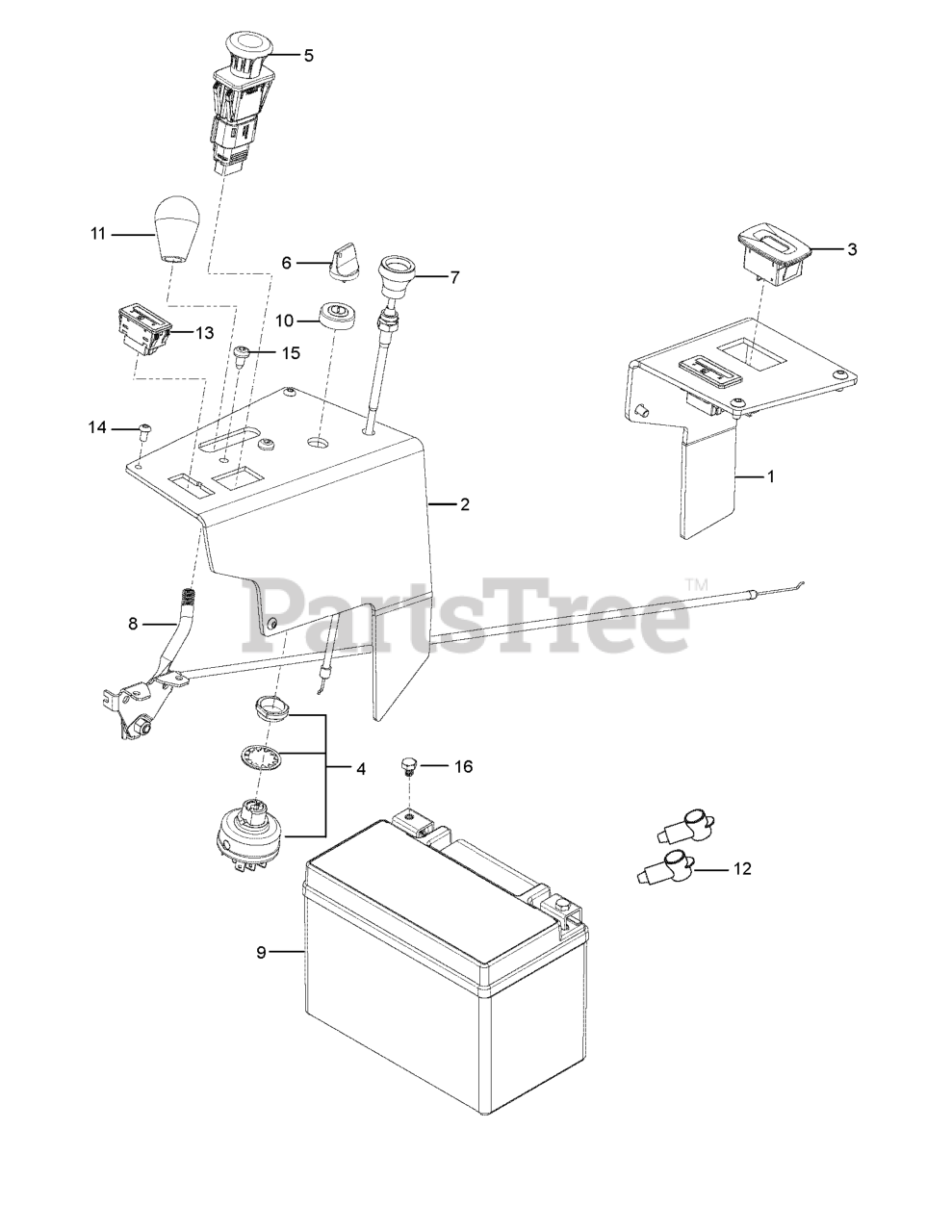

CONSOLE Parts Diagram

  • Title

14

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

1

Husqvarna 582483902

PANEL.LH.CONTROL.PNT.X498

$29.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582120302

THROTTLE.CONTROL.POST.PZ/MZ.60
(Superseded to 597523905)

Note: 60"

$59.99

$

Usually ships in 3-10 days

0

16

Husqvarna 582460801

SCREW M6 X 8MM HEX CAP
(Superseded to 582460802)

$2.49

$

Usually ships in 3-10 days

0

13

Husqvarna 592872701

FUEL.GAUGE.LED.LEVEL.Z500

$35.99

$

In Stock, only 1 left!

0

7

Husqvarna 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

Note: CHOKE

$33.99

$

In Stock, only 4 left!

0

2

Husqvarna 582483602

PANEL.RH.CONTROL.PNT.X498

$29.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

$77.99

$

In Stock, only 3 left!

0

4

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$41.99

$

In Stock, Qty 20+

0

Husqvarna 574514001

TIMER, SEAT

Note: NOT SHOWN

$107.99

$

Usually ships in 3-10 days

0

Husqvarna 582460606

Brackets

Note: MX-14

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 574455501

KEY, IGNITION

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

12

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

11

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

Husqvarna 590632101

CABLE,BAT.6GA.RED.BLK.ASS.PZRF

Note: NOT SHOWN

$77.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539103178

CAP IGNITION NUT

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 589819503

Batteries

Note: MX-14

$179.99

$

Usually ships in 3-10 days

0

Husqvarna 589838501

HARNESS.ADAPTER.KAWASAKI.FX.PZ

Note: NOT SHOWN

$29.99

$

Usually ships in 3-10 days

0

Husqvarna 593777801

HARNESS.MAIN.Z500X.Z500.CARB

Note: NOT SHOWN

$299.99

$

Usually ships in 3-10 days

0
