Z 560x (967678802-00) - Husqvarna 60" Zero-Turn Mower (2017-09) FUEL SYSTEM Parts Diagram

60" Zero-Turn Mower

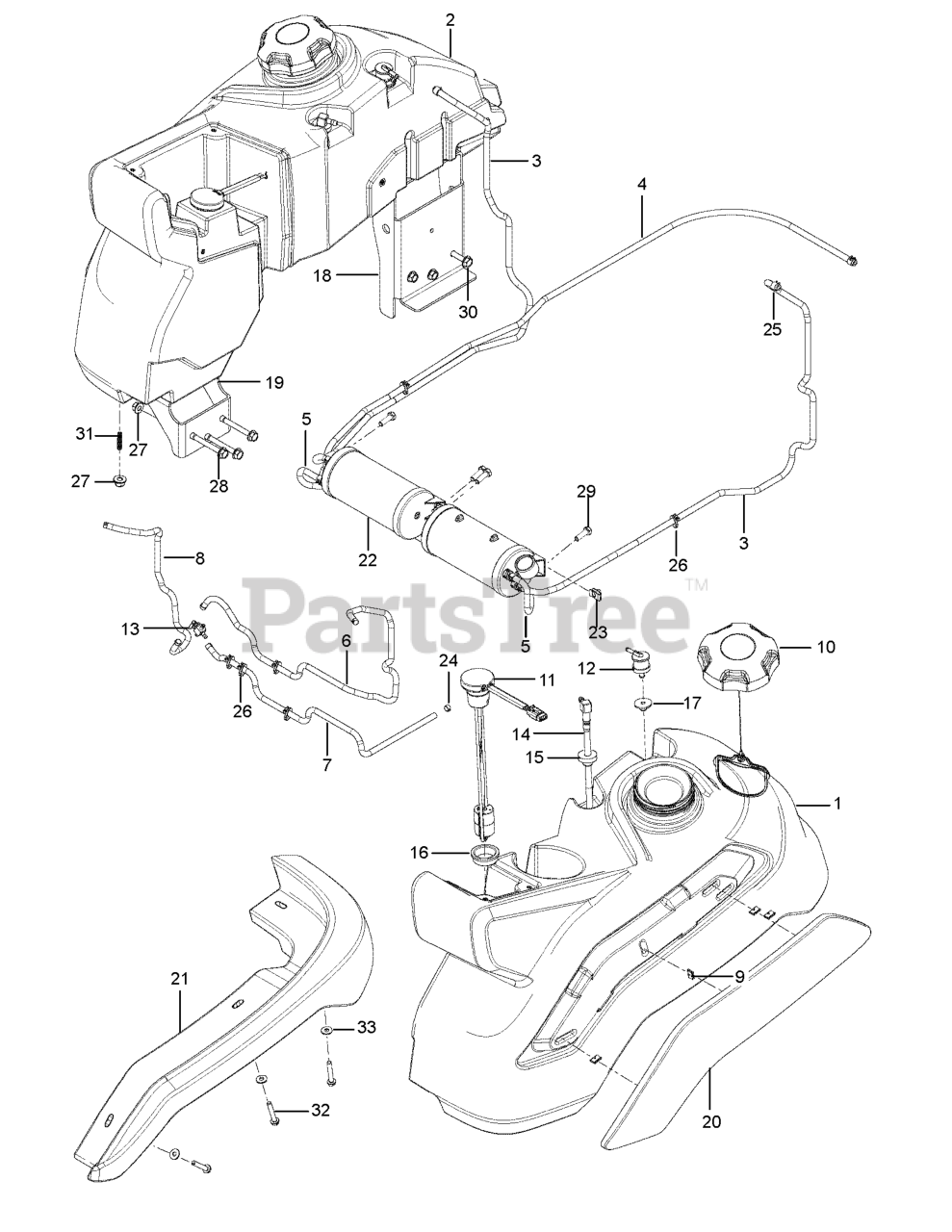

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 582483105

FUEL.TANK.ASM.LH.PZ.REFRESH.18

Note: . 10 11 12 14 15 16 17

$

$

Not available

2

Husqvarna 582481705

FUEL.TANK.ASM.RH.PZ.REFRESH.18

Note: . 10 11 12 14 15 16 17

$

$

Not available

3

Husqvarna 587044542

HOSE.3/16".VAPOR.LINE.42"LGTH

$

$

Not available

4

Husqvarna 587044555

HOSE.3/16".VAPOR.LINE.55"LGTH

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587044513

HOSE 3/16" VAPOR LINE 13" LENG

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587044846

HOSE.1/4".LOW.PERM.FUEL.LN.46"

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587044833

HOSE.1/4".LOW.PERM.FUEL.LN.33"

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587044824

HOSE.1/4".LOW.PERM.FUEL.LN.24"

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582482601

Clip, U Type

$3.49

$

In Stock, Qty 14

0

10

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 6

0

11

Husqvarna 590638801

SENSOR.FUEL.LVL.FLOAT.V500

$133.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

13

Husqvarna 539102679

FUEL VALVE

$53.99

$

In Stock, only 1 left!

0

14

Husqvarna 525865402

TUBE.ASM.FUEL.TANK.PICK-UP.LH

Note: LT

$14.99

$

Usually ships in 3-10 days

0

Husqvarna 525865403

TUBE.ASM.FUEL.TANK.PICK-UP.RH

Note: RT

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532003645

BUSHING OUTLET T

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 590209101

GROMMET, FUEL SENSOR

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 584648201

Check Fuel Grommet

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 582481502

BRACKET.FUEL.TANK.REAR.SUP.431

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 582481602

BRACKET.FUEL.TANK.REAR.SUP.431

$22.99

$

Usually ships in 3-10 days

0

20

Husqvarna 582483401

Fuel Tank Cover, LH Console App

Note: LT

$37.99

$

Usually ships in 3-10 days

0

Husqvarna 582482401

COVER.RH.FUEL.TANK/CONSOLE APP

Note: RT

$37.99

$

In Stock, only 1 left!

0

21

Husqvarna 582483301

GUARD.MUD.LH

$79.99

$

Usually ships in 3-10 days

0

Husqvarna 582482301

GUARD.MUD.RH

$79.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585977402

CANISTER.FLEX.6.3GAL3/16".TANK

$48.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 817490516

SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 582484201

SCREW.5/16-18X1.25"THREADED

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 590257301

SCREW.1/4-20X1.5IN.HEX.MACH

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 574206602

TEE, FUEL LINE 3/16"

Note: NOT SHOWN

$3.49

$

In Stock, only 1 left!

0
