Z 572x (967669801-00) - Husqvarna 72" Zero-Turn Mower (2017-06) MOWER DECK / CUTTING DECK Parts Diagram

72" Zero-Turn Mower

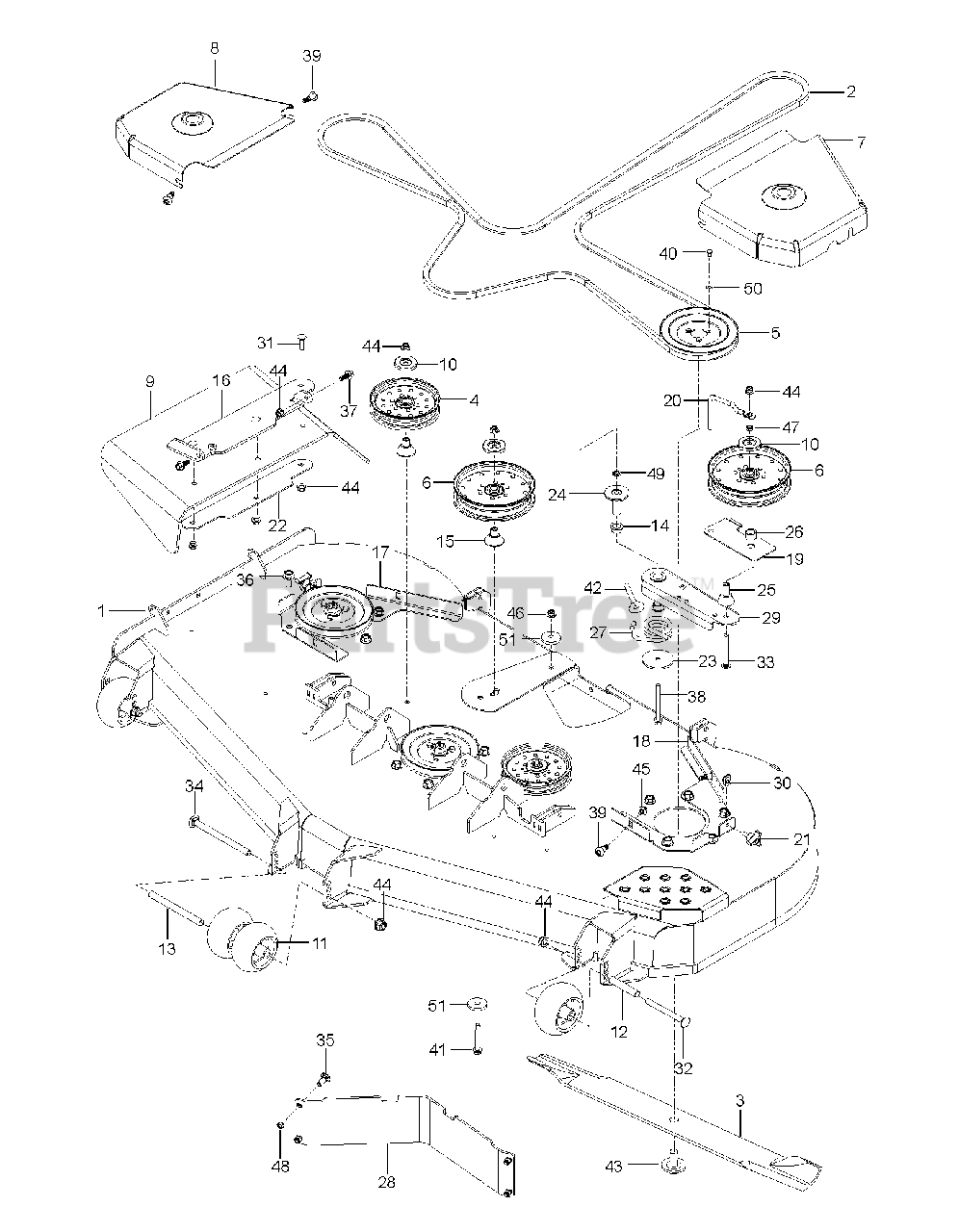

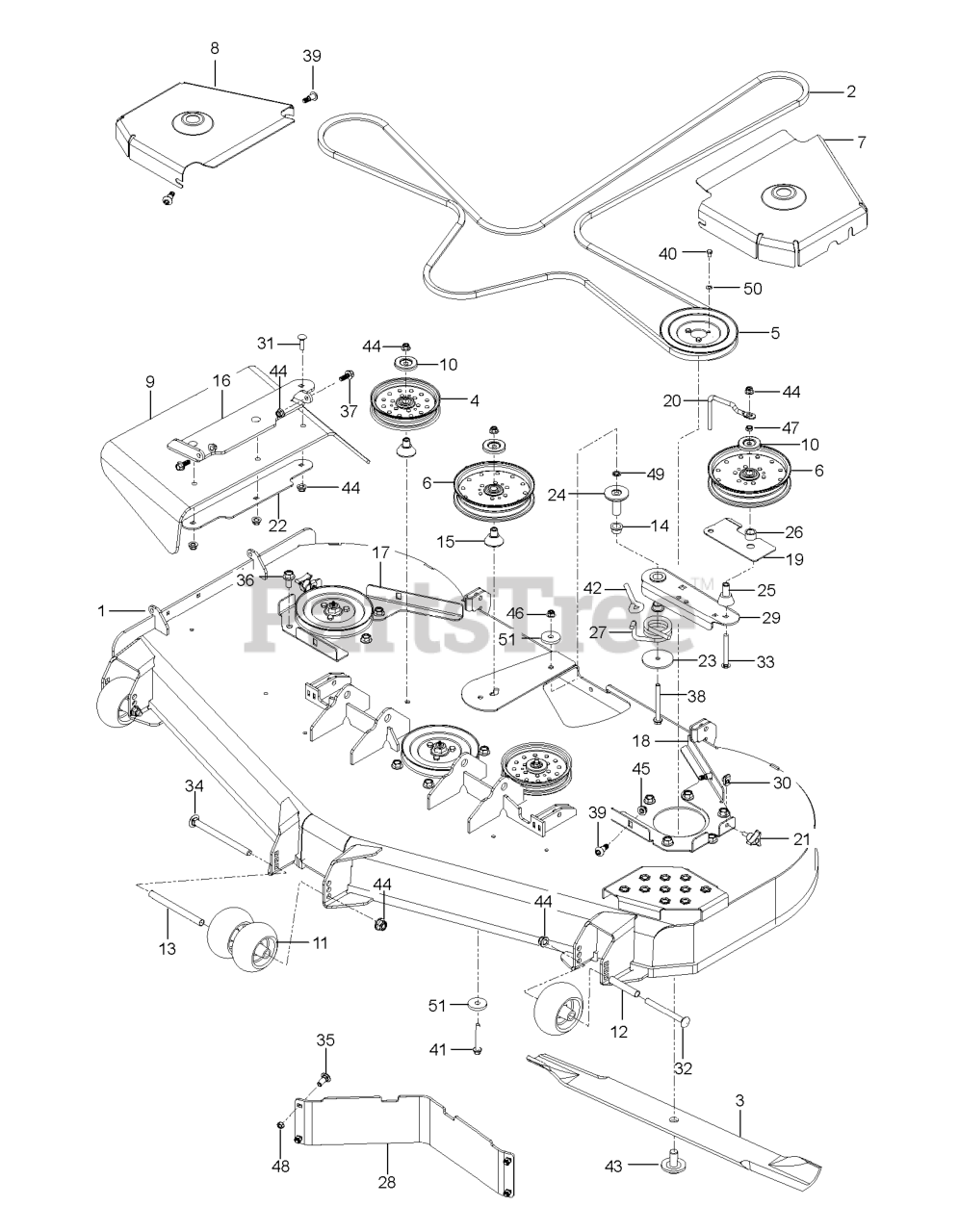

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 591359706

DECK.SVC.W/DECALS.72".7GA.ORG

$3950.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588264804

BELT.5V.201

$159.99

$

In Stock, Qty 7

0

3

Husqvarna 539105711

BLADE - HEAVY DUTY 21"

$43.99

$

In Stock, Qty 20+

0

4

Husqvarna 539130647

PULLEY - 7.50

$41.99

$

In Stock, Qty 6

0

5

Husqvarna 510015101

PULLEY - IDLER 7"
(Superseded to 510015102)

$77.99

$

In Stock, only 3 left!

0

6

Husqvarna 510019601

PULLEY IDLER, 6" NARROW
(Superseded to 597087101)

$65.99

$

In Stock, only 2 left!

0

7

Husqvarna 582463003

COVER.PULLEY.LH.PNT

$65.99

$

In Stock, only 2 left!

0

8

Husqvarna 582463004

COVER.PULLEY.RH.PNT

$77.99

$

In Stock, only 2 left!

0

9

Husqvarna 582468801

CHUTE.DISCHARGE

$83.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, Qty 6

0

11

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$21.99

$

In Stock, Qty 20+

0

12

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$7.49

$

In Stock, Qty 11

0

13

Husqvarna 574196501

TUBE, ROLLER AXLE LONG
(Superseded to 574196502)

$23.99

$

In Stock, Qty 13

0

14

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 16

0

15

Husqvarna 510263701

BEARING, IDLER ARM

$7.49

$

In Stock, Qty 9

0

16

Husqvarna 582467302

BRACKET.CHUTE.ORG

$89.99

$

In Stock, only 2 left!

0

17

Husqvarna 582463203

BRACKET.PULLEY.COVER.LH.PNT

$47.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582463204

BRACKET.PULLEY.COVER.RH.PNT

$65.99

$

Usually ships in 3-10 days

0

19

Husqvarna 582472502

BELT.GUARD.LOWER.PLATE.PNT.431

$10.99

$

In Stock, only 2 left!

0

20

Husqvarna 582470201

KEEPER KEEPER., BELT
(Superseded to 582470202)

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 590523702

PLATE.BACKING.DISCHARGE.CHT.BK

$27.99

$

In Stock, only 3 left!

0

23

Husqvarna 582466401

PLATE.SPRING.RETAINER
(Superseded to 582466402)

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 582468101

SHAFT.MOUNT.ARM.IDLER
(Superseded to 582468102)

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna 582468301

SPACER
(Superseded to 599502401)

$9.99

$

In Stock, Qty 20+

0

26

Husqvarna 589455201

SPACER.PULLEY.INTERMEDIATE
(Superseded to 589455202)

$9.99

$

In Stock, Qty 20+

0

27

Husqvarna 582468001

SPRING.TORSION.DECK.IDLER.TMSN

$

$

Not available

28

Husqvarna 574221802

BAFFLE, DIVERTER 72" BLACK

$53.99

$

Usually ships in 3-10 days

0

29

Husqvarna 582462702

ARM.PNT.WLD.TENSIONR.IDLER.BLK

$65.99

$

In Stock, only 2 left!

0

30

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

In Stock, Qty 5

0

32

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$7.49

$

In Stock, Qty 9

0

33

Husqvarna 872140628

BOLT.RDHD SQNK 3/8-16 X 3-1/2

$5.99

$

In Stock, Qty 9

0

34

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD
(Superseded to 594944501)

$9.99

$

In Stock, Qty 12

0

35

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

In Stock, only 4 left!

0

36

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD
(Superseded to 574210602)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, only 3 left!

0

38

Husqvarna 521996601

HHFS 3/8-16 X 4 GR5 ZD
(Superseded to 521996602)

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 582476401

SCREW.SHLDR.3/8 X 1/2.5/16-18
(Superseded to 582476402)

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD
(Superseded to 596433301)

$3.99

$

In Stock, Qty 10

0

41

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD
(Superseded to 596436901)

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 574202001

EYE BOLT, 3/8 X 4"
(Superseded to 574202002)

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539119007

BLADE BOLT/WASHER

$17.99

$

In Stock, Qty 14

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 6

0

45

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, Qty 6

0

48

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

49

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.99

$

In Stock, only 2 left!

0

50

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

In Stock, only 3 left!

0

51

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

Usually ships in 3-10 days

0
