Z 6004M (80712) - Snapper 60" Mower Deck Assembly 60" Deck Assembly Parts Diagram

60" Mower Deck Assembly

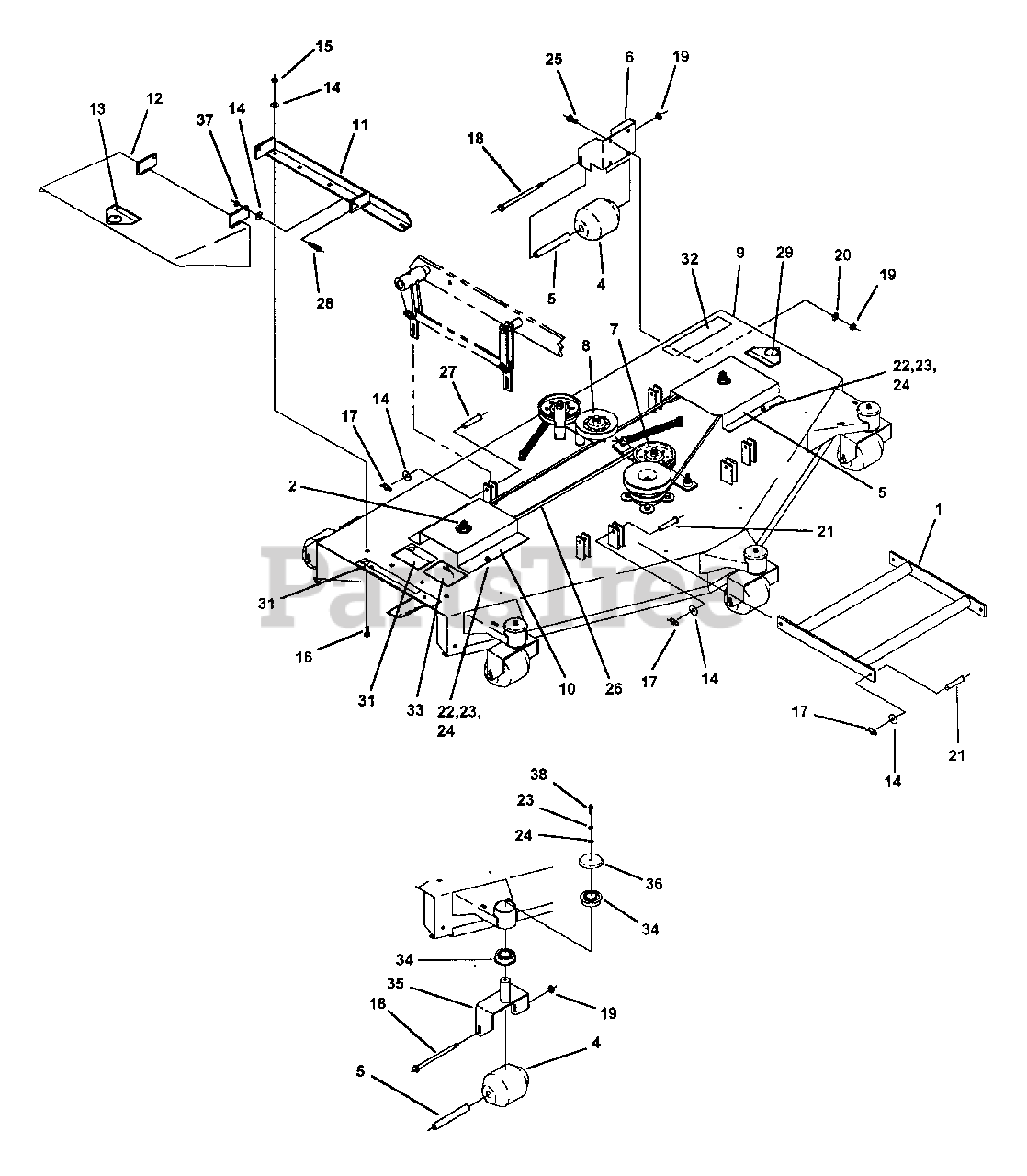

60" Deck Assembly Parts Diagram

  • Title

1

Snapper 7079655

DRAG BAR WELDMENT
(Superseded to 7079655YP)

$94.99

$

Usually ships in 2-12 days

0

2

Snapper 7079885

SPINDLE ASSEMBLY
(Superseded to 7079885YP)

Note: (see pages 24, 25 for breakdown)

$603.99

$

Usually ships in 2-12 days

0

?3

Snapper 7079042

PULLEY COVER, L.H. 60" DECK
(Superseded to 7079042YP)

$94.99

$

Usually ships in 2-12 days

0

4

Snapper 7079868

ROLLER, 3-3/4 X 4-13/16" LONG
(Superseded to 7079868YP)

$63.99

$

In Stock, only 3 left!

0

5

Snapper 7079882

BUSHING
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

6

Snapper 7079881

BRACKET, REAR CENTER

$

$

Currently unavailable

7

SINGLE IDLER PARTS

Note: (see page 27 for breakdown)

$

$

Not available

8

DOUBLE IDLER ASSEMBLY

Note: (see page 26 for breakdown)

$

$

Not available

9

Snapper 7062431

60" DECK WELDMENT, GEARDRIVE

$

$

Currently unavailable

10

Snapper 7079043

PULLEY COVER, R.H. 60" DECK

$

$

Currently unavailable

11

Snapper 7062434

OUTLET STIFFENER WELDMENT
(Superseded to 7062434YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7062436

CHUTE WELDMENT (w/decal)

$

$

Not available

13

Snapper 7079234

DECAL, "BLOODY STUMP"

$

$

Currently unavailable

14

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091298

NUT, 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 12

0

16

Snapper 7090316

BOLT, 5/16-18 X 3/4" CARRIAGE
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091593

COTTER RUE RING, 5/16 - 3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7079845

BOLT, 3/8-16 X 6" GR. 5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

21

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/4" LONG
(Superseded to 7079831YP)

Note: Was 79284

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

23

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

24

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 11

0

25

Snapper 7090603

BOLT, 3/8-16 X 7/8" GR. 5

$2.99

$

In Stock, only 1 left!

0

26

Snapper 7079186

DECK CROSS BELT, A-112
(Superseded to 7079186YP)

$48.99

$

In Stock, Qty 5

0

27

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/2" LONG
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7027168

BOLT, 5/16-18 X 1" GR. 5.
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, Qty 6

0

29

Snapper 7079234

DECAL, "BLOODY STUMP"

$

$

Currently unavailable

?30

Snapper 7079240

DECAL, "WARNING- ROTATING BLADES"
(Superseded to 7079240YP)

$12.99

$

Usually ships in 2-12 days

0

31

Snapper 7079242

DECAL, "MISSING CHUTE"

$

$

Currently unavailable

32

Snapper 7062488

DECAL. "MODEL #Z6004M"

$

$

Currently unavailable

33

Snapper 7062199

DECAL, "GREASE SPINDLES"
(Superseded to 7062199YP)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper 7079331

BEARING, SPD SF-16-32 NO/COLLAR
(Superseded to 1711534SM)

$46.99

$

Usually ships in 2-12 days

0

35

Snapper 7079883

SWIVEL YOKE WELDMENT

$

$

Not available

36

Snapper 7079352

CAP, BEARING

$

$

Not available

37

Snapper 7062401

NUT, 5/16-18 STOVER
(Superseded to 7062401YP)

$2.99

$

In Stock, only 1 left!

0

38

Snapper 7062472

BOLT, 1/4-20 X 3/4" GR. 5 W/NYLON PATCH

$

$

Currently unavailable

Snapper 7079781

ENGINE TO DECK BELT, BP-81
(Superseded to 7079781YP)

$49.99

$

In Stock, only 3 left!

0
