Z 7600 (CMGN231702) (17ASHAC3A93) - Craftsman 54" Zero-Turn Mower (2023) Seat Parts Diagram

54" Zero-Turn Mower

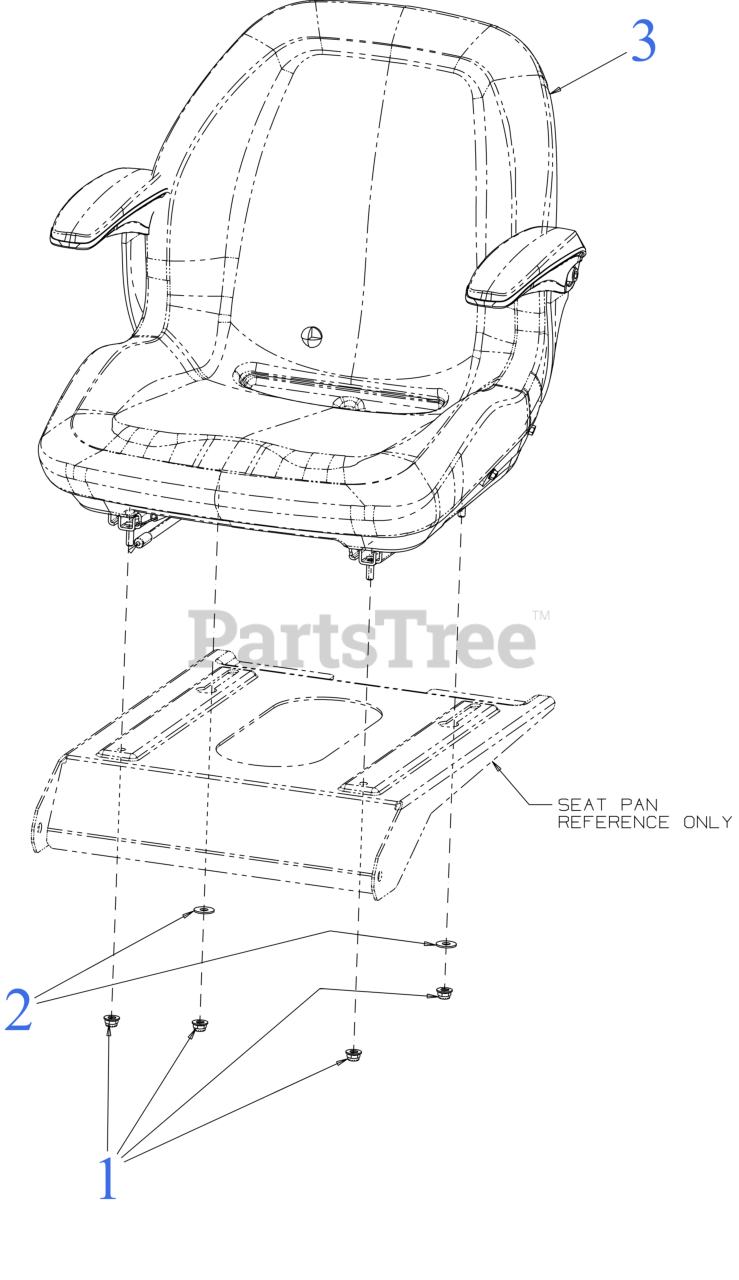

Seat Parts Diagram

  • Title

1

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

2

MTD 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

3

MTD 757-06196

SEAT (CRAFTSMAN/SLIDE/ARM)

$639.99

$

Usually ships in 3-6 days

0

3

MTD 759-04252

LH & RH ARMREST KIT

Note: (Not Shown)

$167.99

$

Usually ships in 3-6 days

0

3

MTD 725P14006

SEAT SWITCH (NC/NO)

Note: (Not Shown)

$30.99

$

In Stock, only 2 left!

0
