Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Carburetor Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

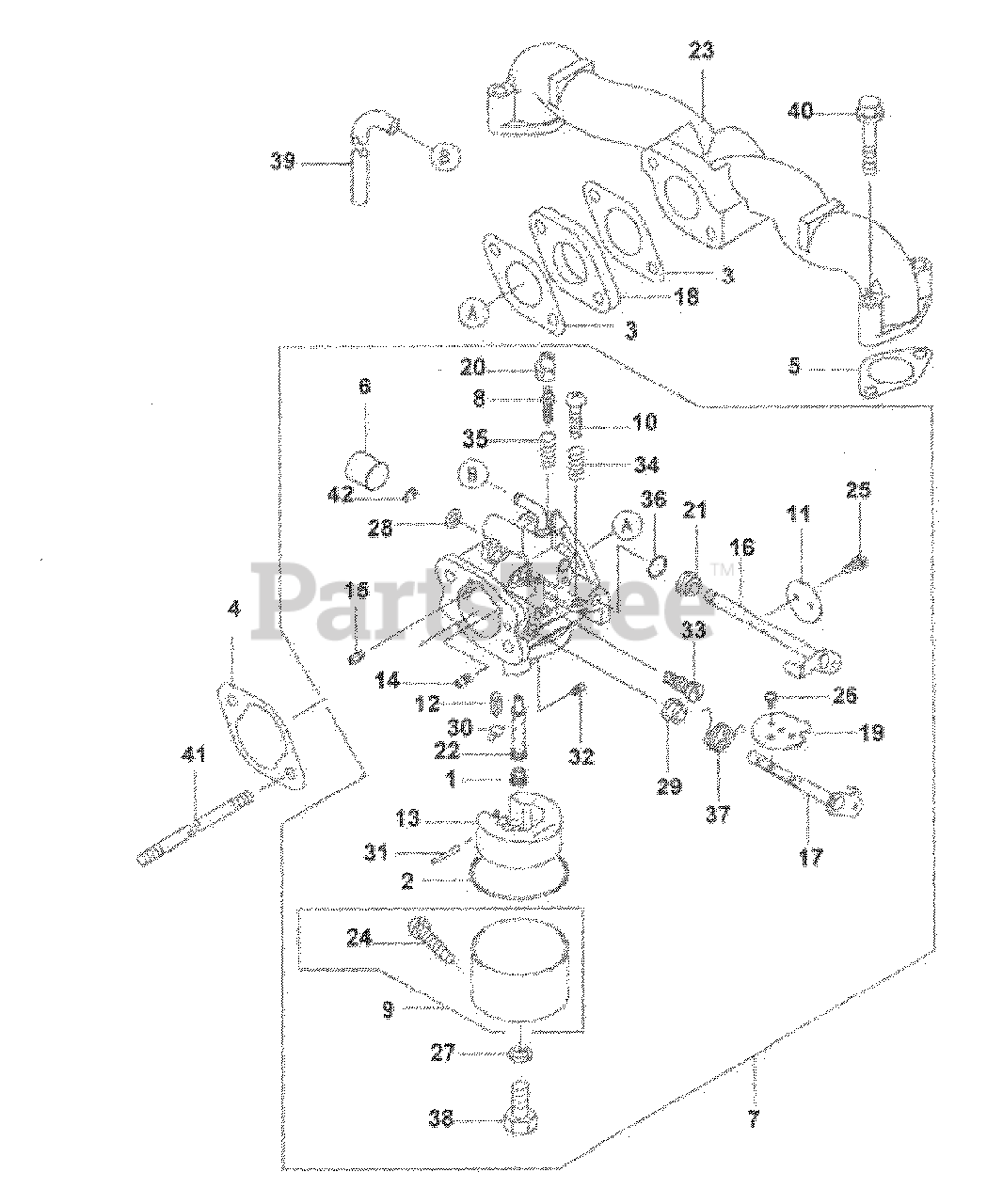

Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11003-2105

Needle Seat

$13.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-11060-2406

Bowl Gasket

$4.99

$

In Stock, Qty 5

0

3

Cub Cadet KM-11061-7004

Insulator Gasket

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11061-7018

Air Cleaner Gasket

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11060-7005

Manifold Gasket
(Superseded to KM-11061-7019)

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11065-2061

Cap

$1.49

$

In Stock, only 1 left!

0

7

Cub Cadet KM-15003-7035

Carburetor Assy.

$268.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16014-2080

Pilot Air Screw

$

$

Not available

9

Cub Cadet KM-16020-2141

Float Bowl

$50.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16021-2060

Throttle Stop Screw

$5.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-16025-2193

Throttle Valve # 130

$

$

Not available

12

Cub Cadet KM-16030-2067

Float Needle

$23.99

$

In Stock, only 4 left!

0

13

Cub Cadet KM-16031-2066

Float

$29.99

$

In Stock, only 2 left!

0

14

Cub Cadet KM-16035-2060

Air Jet, # 1.7

$9.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16035-2061

Air Jet, # 1.2

$

$

Not available

16

Cub Cadet KM-16041-7005

Throttle Shaft

$36.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-16041-7006

Choke Shaft

$

$

Not available

18

Cub Cadet KM-16073-7007

Insulator
(Superseded to KM-16073-0876)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-16126-7006

Choke Valve

$7.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-39076-2053

Limiter

$6.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-43058-3716

Ring

$3.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-49121-2222

Main Nozzle, #113A

$32.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-59076-7001

Intake Manifold
(Superseded to KM-59076-7017)

$

$

Not available

24

Cub Cadet KM-92009-2015

Screw

$5.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-92009-2024

Screw

$1.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-92009-2081

Screw

$1.99

$

In Stock, only 1 left!

0

27

Cub Cadet KM-92022-2231

Washer

$1.99

$

In Stock, Qty 5

0

28

Cub Cadet KM-92022-2239

Washer

$1.49

$

Usually ships in 2-5 days

0

29

Cub Cadet KM-92027-2025

Collar

$3.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92033-2067

Snap Ring

$5.49

$

In Stock, Qty 6

0

31

Cub Cadet KM-92043-2226

Pin

$7.49

$

In Stock, only 1 left!

0

32

Cub Cadet KM-92063-2358

Main Jet # 125

$10.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KM-92064-2125

Pilot Jet, # 48.8

$11.99

$

In Stock, only 3 left!

0

34

Cub Cadet KM-92081-2009

Spring

$3.49

$

In Stock, only 4 left!

0

35

Cub Cadet KM-92081-2256

Spring

$7.99

$

In Stock, only 1 left!

0

36

Cub Cadet KM-92093-2002

Seal

$1.99

$

In Stock, Qty 6

0

37

Cub Cadet KM-92145-2061

Spring

$2.99

$

In Stock, only 2 left!

0

38

Cub Cadet KM-92151-2092

Bolt

$13.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KM-92191-7016

Tube

$1.99

$

In Stock, only 4 left!

0

40

Cub Cadet KM-130B0635

Flange Bolt
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

41

Cub Cadet KM-172G0685

Stud Bolt

$2.99

$

Usually ships in 2-5 days

0

42

Cub Cadet KM-482L4000

E-Style Circlip

$

$

Not available
