Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Cylinder & Crankcase Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

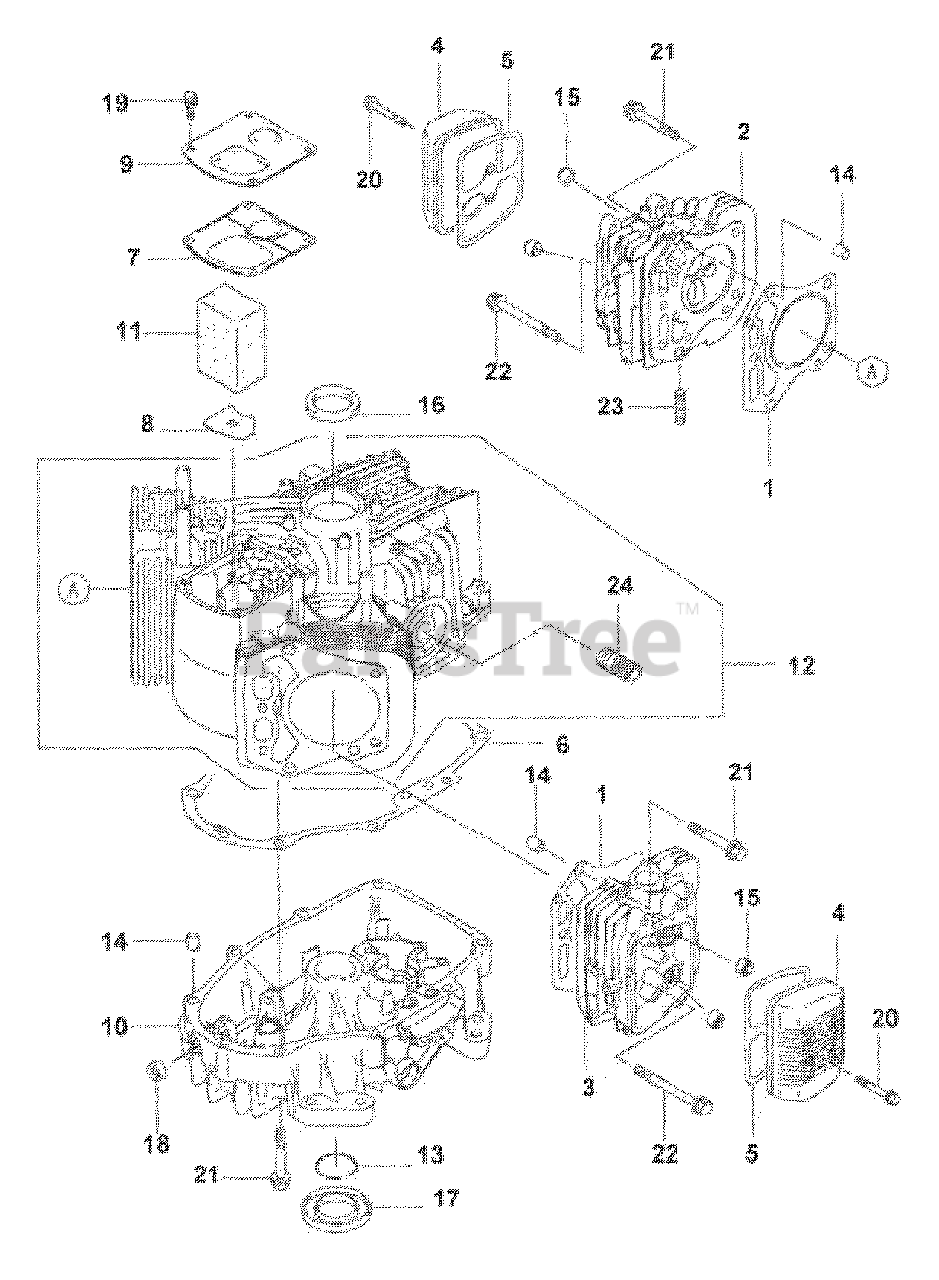

Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7005

Head Gasket
(Superseded to KM-11004-7015)

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-6042

Cylinder Head #1
(Superseded to KM-11008-6043)

$273.99

$

In Stock, only 2 left!

0

3

Cub Cadet KM-11008-7009

Cylinder Head #2
(Superseded to KM-11008-7020)

$273.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7003

Rocker Case

$14.99

$

In Stock, only 3 left!

0

5

Cub Cadet KM-11060-7001

Rocker Case Gasket

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7008

Crankcase Gasket

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11061-7001

Breather Gasket
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 11

0

8

Cub Cadet KM-13271-7016

Plate

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KM-14091-7006

Breather Cover
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 11

0

10

Cub Cadet KM-49015-6524

Crankcase Cover

$

$

Currently unavailable

11

Cub Cadet KM-49109-7002

Breather Element
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 11

0

12

Cub Cadet KM-49120-7021

Crankcase Complete

$

$

Not available

13

Cub Cadet KM-92033-7003

Snap Ring

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7009

Oil Seal
(Superseded to KM-92049-7001)

$8.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92049-7010

Oil Seal 35X48X8

$3.49

$

In Stock, Qty 16

0

17

Cub Cadet KM-92049-7011

Oil Seal 35X62X8

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7005

Oil Seal
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130G0612

Flange Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-130B0640

Flange Bolt
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 3 left!

0

21

Cub Cadet KM-130T0850

Flange Bolt
(Superseded to KM-130CA0850)

$1.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-130T0875

Flange Bolt
(Superseded to KM-130CA0875)

$2.49

$

In Stock, Qty 11

0

23

Cub Cadet KM-172G0818

Stud Bolt
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 9

0
