Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Electric Equipment Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

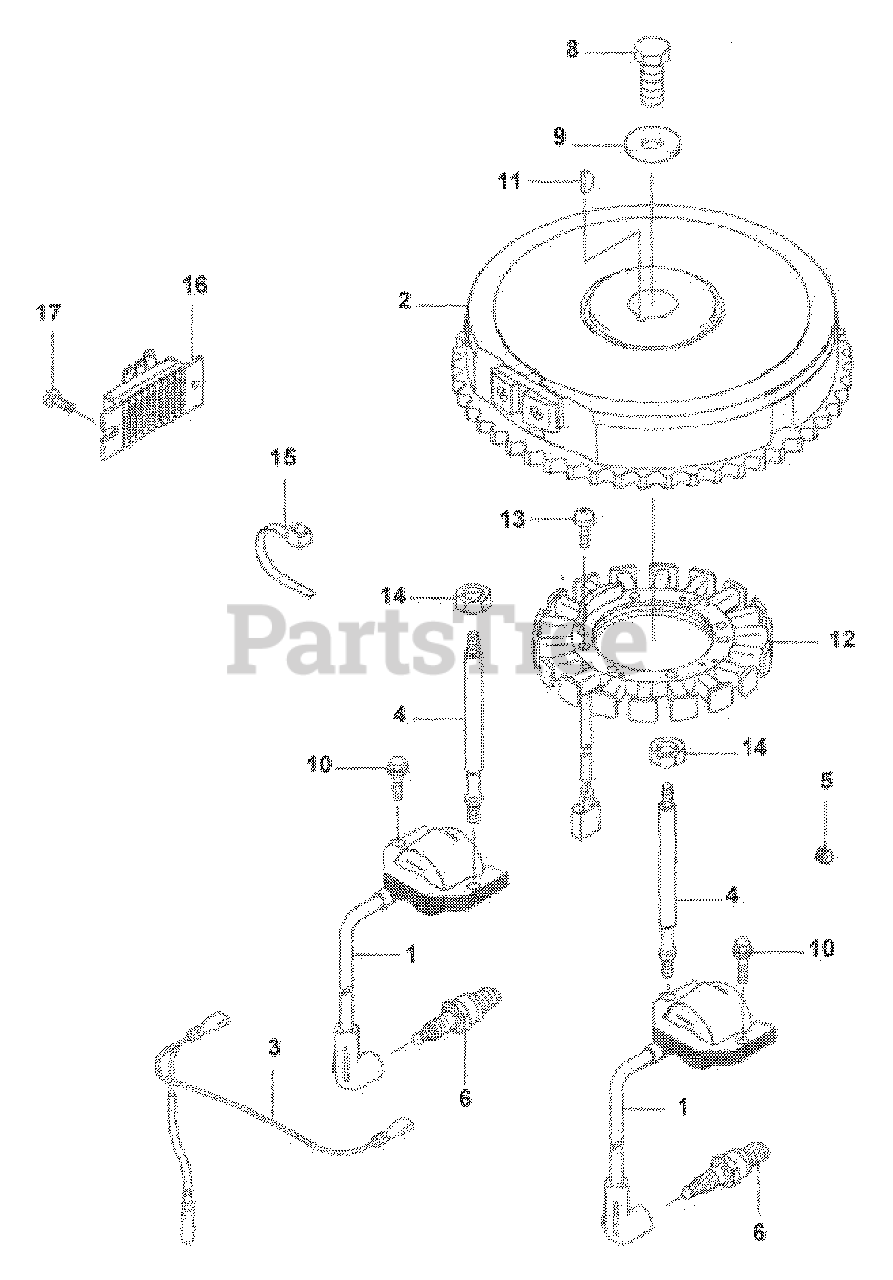

Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-21171-7013

Ignition Coil
(Superseded to KM-21171-7034)

$81.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-21193-7007

Flywheel

$

$

Not available

3

Cub Cadet KM-26030-7001

Harness

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-92004-7009

Stud
(Superseded to KM-92004-7026)

$4.99

$

In Stock, Qty 14

0

5

Cub Cadet KM-92066-7002

Plug

$

$

Not available

6

Cub Cadet 759-3331

Spark Plug

$3.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-92151-2097

Bolt 12 x 30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 9

0

9

Cub Cadet KM-92200-7002

Washer

$3.49

$

In Stock, only 4 left!

0

10

Cub Cadet KM-130B0620

Flange Bolt

$1.49

$

In Stock, Qty 6

0

11

Cub Cadet KM-510A5100

Woodruff Key

$3.49

$

In Stock, Qty 9

0

12

Cub Cadet KM-59031-7001

Stator
(Superseded to KM-59031-7009)

$128.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-224B0520

Pan Screw
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 16

0

14

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

15

Tie Strap

Note: Obtain Locally

$

$

Not available

16

Cub Cadet KM-21066-7011

Voltage Regulator

$77.99

$

In Stock, Qty 17

0

17

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0
