Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Front Caster & Tire Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

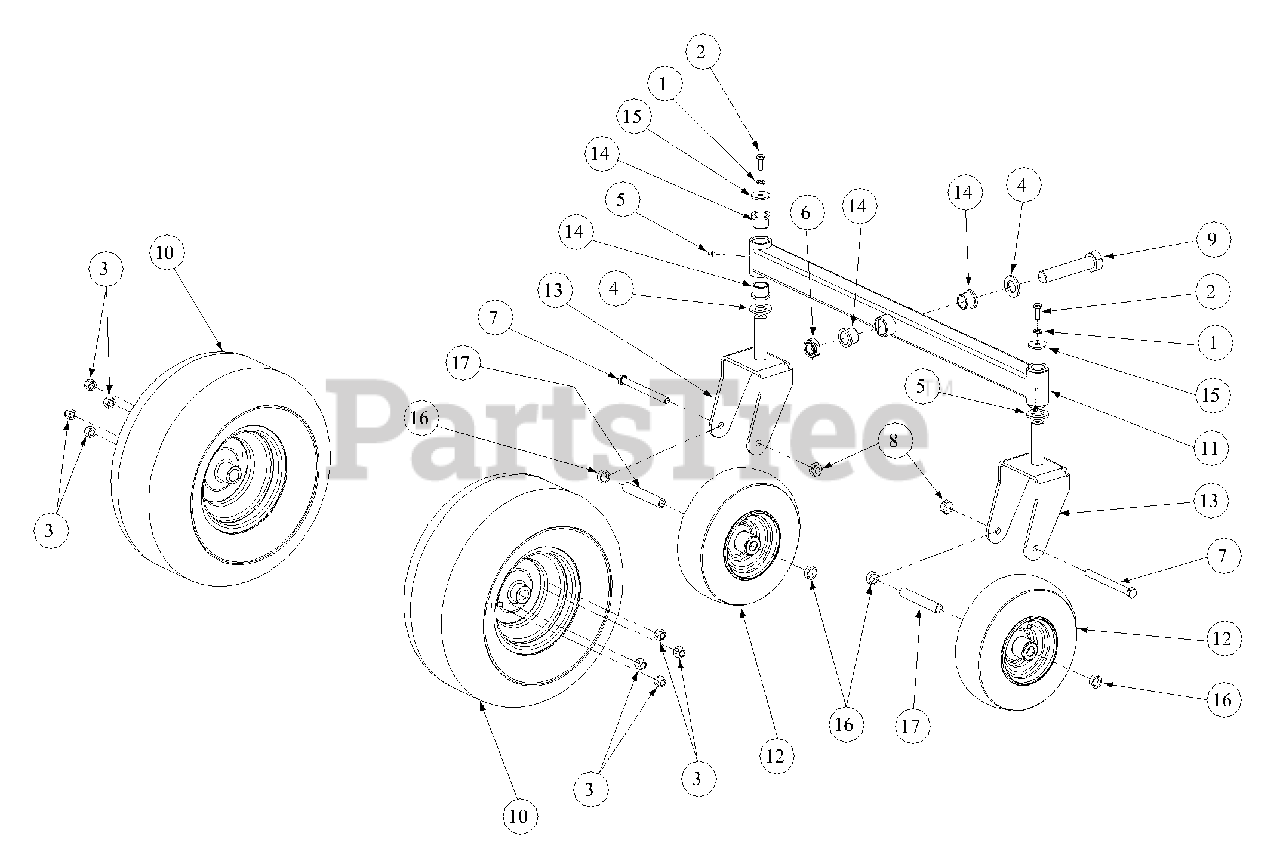

Front Caster & Tire Assembly Parts Diagram

  • Title

1

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 8

0

2

Cub Cadet 00012171

Hex Cap Screw, 3/8-16 x 1

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$9.49

$

In Stock, Qty 13

0

5

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01000678

Nut Jam, 1.0-14, Nylon Insert
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01000745

Hex Cap Screw, 1/2-20 x 5.50
(Superseded to 710-0506)

$11.99

$

In Stock, Qty 5

0

8

Cub Cadet 01008804

Nut, 1/2-20,Flange Lock

$

$

Not available

9

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$32.99

$

In Stock, Qty 6

0

10

Cub Cadet 01008320

Wheel Assembly, 20 x 7
(Superseded to 01008320P)

$

$

Not available

11

Cub Cadet 01008405

Front Axle Assembly

$

$

Not available

12

Cub Cadet 01008570

Front Wheel Assembly
(Superseded to 634-3163)

$240.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01008550

Castor Wheel Mounting Bracket

$

$

Not available

14

Cub Cadet 731-0374

Flange Bearing, 1.0 ID
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0227

Flat Washer, .390 x 1.5 x .134

$6.99

$

In Stock, Qty 5

0

16

Cub Cadet 750-0456

Spacer, .790 ID x .347 Lg

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 750-3197

Wheel Spacer
(Superseded to 750-3197A)

$22.99

$

In Stock, only 2 left!

0
