Z-Force 18 (53AA5A5L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Briggs & Stratton Engine Assembly - 18HP Briggs Parts Diagram

44" Z-Force Zero-Turn Mower, Briggs & Stratton

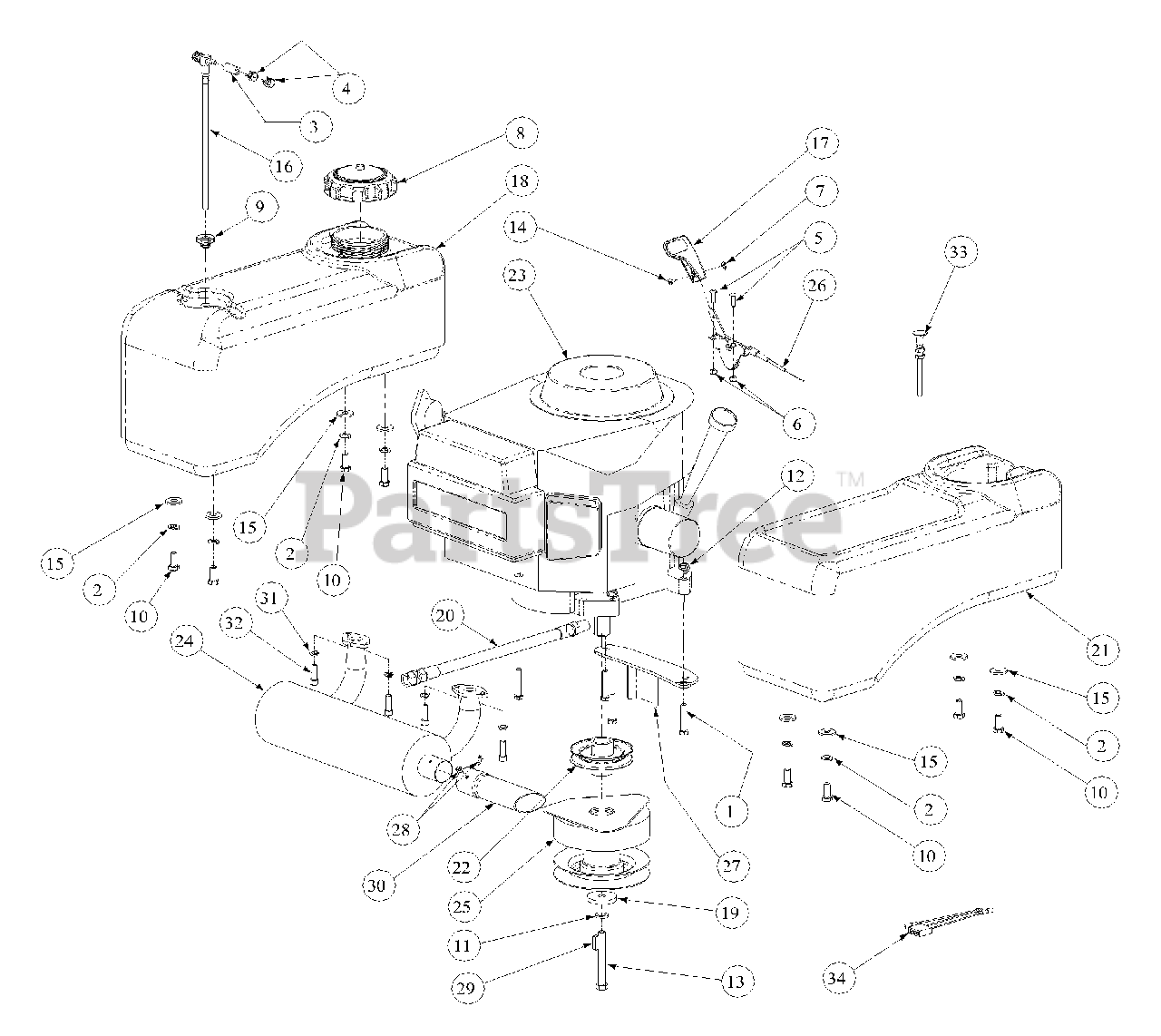

Engine Assembly - 18HP Briggs Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Head Cap Screw, 5/16-18 x 1-3/4

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

3

Hose, 1/4" Fuel Line

Note: purchase locally

$

$

Not available

4

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 00014602

Round Head Machine Screw, 10-32 x 3/4

$

$

Not available

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

7

Cub Cadet 00060056

Nut, w/ Star Washer

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 01000069

Fuel Cap
(Superseded to 951-3124E)

$33.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01000281

Fuel Tank Groment
(Superseded to 02002253)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$6.99

$

In Stock, Qty 11

0

11

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01008637

Hex Cap Screw, 7/16-20 x 4.0
(Superseded to 710-04248)

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01000721

Machine Screw, 8-32 x .375
(Superseded to 710-3217)

$6.49

$

In Stock, Qty 10

0

15

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 01003116

Fuel Pickup Fitting

$54.99

$

In Stock, Qty 7

0

17

Cub Cadet 01004004

Throttle Control Knob
(Superseded to 731-04914)

$12.99

$

In Stock, only 3 left!

0

18

Cub Cadet 01004350

Fuel Tank

$

$

Not available

19

Cub Cadet 01005314

Flat Washer, 7/16 ID x 1.75 OD x .250
(Superseded to 736-04131)

$14.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01003283

Oil Drain Extension Hose

$78.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 737-0103

Oil Drain Extension Plug
(Superseded to 737-04202)

Note: not shown

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$185.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008381

Electric PTO Engine Pulley
(Superseded to 02003417)

Note: use with 00025344

$57.99

$

In Stock, Qty 11

0

22

Cub Cadet 01008808

Electric PTO Engine Pulley
(Superseded to 02003417)

Note: use with 01007533

$57.99

$

In Stock, Qty 11

0

23

Cub Cadet 01008883

18HP Twin Briggs Engine

$

$

Not available

24

Cub Cadet 01008902

Briggs Muffler
(Superseded to 01008902P)

$

$

Not available

25

Cub Cadet 01008544

Ogura JD08 Electric Clutch
(Superseded to 917-04127)

$562.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01003272

Throttle Control Cable
(Superseded to 01003272P)

$40.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01008640

Clutch Retainer Assembly

$

$

Not available

28

Cub Cadet 01000811

Screw, 8-32 x .375, Hex Washer
(Superseded to 710-0148)

$3.99

$

In Stock, Qty 16

0

29

Cub Cadet 00025344

Key, 1/4 x 1/4 x 7/8

Note: use with 01008381

$

$

Not available

29

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

Note: use with 01008808

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

31

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

32

Cub Cadet 01009142

Socket Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

33

Cub Cadet 01004020

Choke Cable
(Superseded to 02003479P)

$39.99

$

In Stock, only 1 left!

0

34

Cub Cadet 01008881

Harness Adaptor

$

$

Not available
