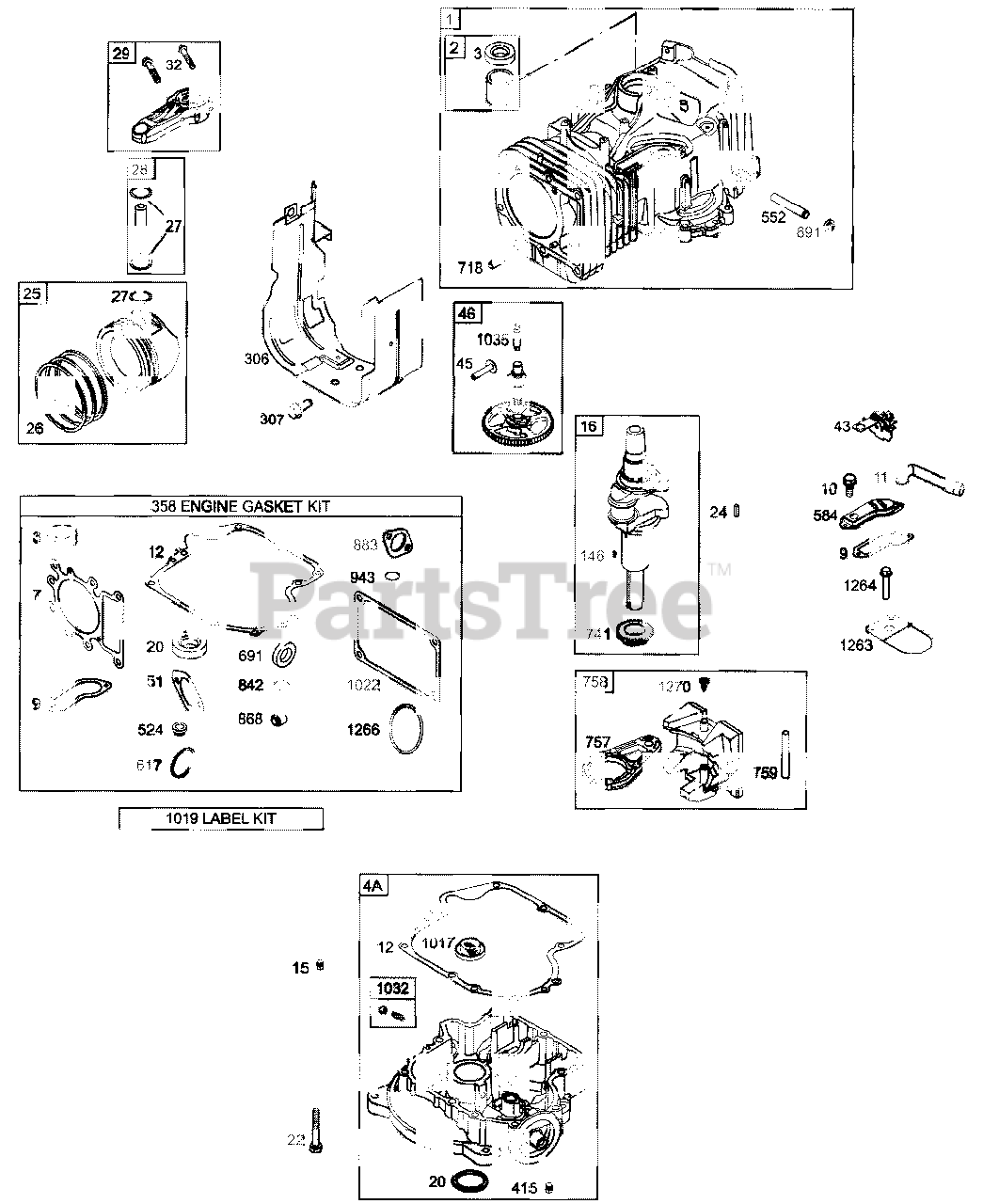

Z-Force 42 (53AA5A5G710) - Cub Cadet 42" Z-Force Zero-Turn Mower, Briggs & Stratton Engine Cylinder Assembly Parts Diagram

42" Z-Force Zero-Turn Mower, Briggs & Stratton

Engine Cylinder Assembly Parts Diagram

  • Title

1

Cub Cadet BS-697174

Cylinder Assembly
(Superseded to BS-796010)

$524.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-399265

Kit-Bushing/Seal (Magneto Side)
(Superseded to BS-797673)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4A

Cub Cadet BS-697188

Sump-Engine
(Superseded to BS-592849)

$250.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-699168

Gasket-Cylinder Head
(Superseded to BS-794114)

$20.99

$

In Stock, Qty 16

0

9

Cub Cadet BS-697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-697157

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-697113

Tube-Breather
(Superseded to BS-794683)

$7.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-697110

Gasket-Crankcase (Standard)

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691680

Plug-Oil Drain (Flush)

$5.99

$

In Stock, only 4 left!

0

16

Cub Cadet BS-697127

Crankshaft

$

$

Not available

20

Cub Cadet BS-690947

Seal-Oil (PTO Side)
(Superseded to BS-795387)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692125

Screw (Crankcase Cover/Sump)

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-699052

Piston Assembly (Standard)
(Superseded to BS-796172)

$90.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-699053

Piston Assembly (.010")

$72.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-699054

Piston Assembly (.020")
(Superseded to BS-793019)

$

$

Not available

Cub Cadet BS-699055

Piston Assembly (.030")

$82.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-699051

Ring Set (Standard)
(Superseded to BS-594437)

$52.99

$

In Stock, only 4 left!

0

Cub Cadet BS-697558

Ring Set (.010")

$48.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-697559

Ring Set (.020")

$65.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-697560

Ring Set (.030")

$37.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-698469

Lock-Piston Pin

$4.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-697099

Pin-Piston (Standard)

$13.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-697126

Rod-Connecting (Standard)
(Superseded to BS-794122)

$78.99

$

In Stock, only 3 left!

0

Cub Cadet BS-697263

Rod-Connecting (.020")

$57.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-692852

Screw (Connecting Rod)
(Superseded to BS-791118)

$4.99

$

In Stock, Qty 9

0

43

Cub Cadet BS-691968

Slinger-Governor/Oil

$37.99

$

In Stock, Qty 10

0

45

Cub Cadet BS-690564

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-698492

Camshaft
(Superseded to BS-84005207)

$146.99

$

Usually ships in 3-6 days

0

51

Cub Cadet BS-692137

Gasket-Intake

$3.49

$

In Stock, Qty 19

0

146

Cub Cadet BS-691639

Key-Timing

$4.49

$

In Stock, only 3 left!

0

306

Cub Cadet BS-697107

Shield-Cylinder

$55.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-691003

Screw (Cylinder Shield)

$3.49

$

In Stock, only 2 left!

0

358

Cub Cadet BS-697191

Gasket Set-Engine
(Superseded to BS-796187)

$94.99

$

In Stock, only 4 left!

0

415

Cub Cadet BS-690283

Plug (Sump)
(Superseded to BS-794903)

$5.49

$

In Stock, only 1 left!

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, Qty 8

0

552

Cub Cadet BS-697144

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Cub Cadet BS-697112

Cover-Breather Passage
(Superseded to BS-794682)

$9.49

$

In Stock, only 1 left!

0

617

Cub Cadet BS-692138

Seal-O Ring (Intake Manifold)

$5.49

$

In Stock, Qty 14

0

691

Cub Cadet BS-692407

Seal-Governor Shaft

$7.99

$

In Stock, Qty 11

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-697128

Gear-Timing

$20.99

$

In Stock, Qty 5

0

757

Cub Cadet BS-697607

Link-Counterweight
(Superseded to BS-793242)

$20.99

$

In Stock, only 2 left!

0

758

Cub Cadet BS-697134

Counterweight
(Superseded to BS-793763)

$128.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-697392

Pin-Counterweight

$5.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

868

Cub Cadet BS-690968

Seal-Valve

$10.99

$

Usually ships in 2-12 days

0

883

Cub Cadet 721-0208

Gasket-Exhaust
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

943

Cub Cadet BS-690589

Seal-O Ring (Oil Pump Cover)

$8.99

$

Usually ships in 2-12 days

0

1017

Cub Cadet BS-690770

Screen-Oil Pump

$9.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-697143

Kit-Label

$

$

Not available

1022

Cub Cadet BS-272475S

Gasket-Rocker Cover

$6.49

$

In Stock, Qty 14

0

1032

Cub Cadet BS-491710

Ball-Oil Pump

$4.99

$

Usually ships in 2-12 days

0

1035

Cub Cadet BS-693784

Shaft-Pump

$

$

Not available

1263

Cub Cadet BS-697124

Reed-Breather

$7.49

$

Usually ships in 2-12 days

0

1264

Cub Cadet BS-697104

Screw (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Cub Cadet BS-691917

Seal-O Ring (Intake Elbow)

$4.49

$

In Stock, Qty 9

0

1270

Cub Cadet BS-697156

Plug-AVS Counterweight
(Superseded to BS-793243)

$4.99

$

In Stock, Qty 11

0

N/S

Cub Cadet 01009770P

Complete Engine
(Superseded to BS-31Q777-0036)

$

$

Not available

N/S

Cub Cadet BS-697762

Short Block

$597.99

$

Usually ships in 2-12 days

0
