Z-Force 42 (53AA5A5G710) - Cub Cadet 42" Z-Force Zero-Turn Mower, Briggs & Stratton Front Caster & Tire Assembly 42'' Parts Diagram

42" Z-Force Zero-Turn Mower, Briggs & Stratton

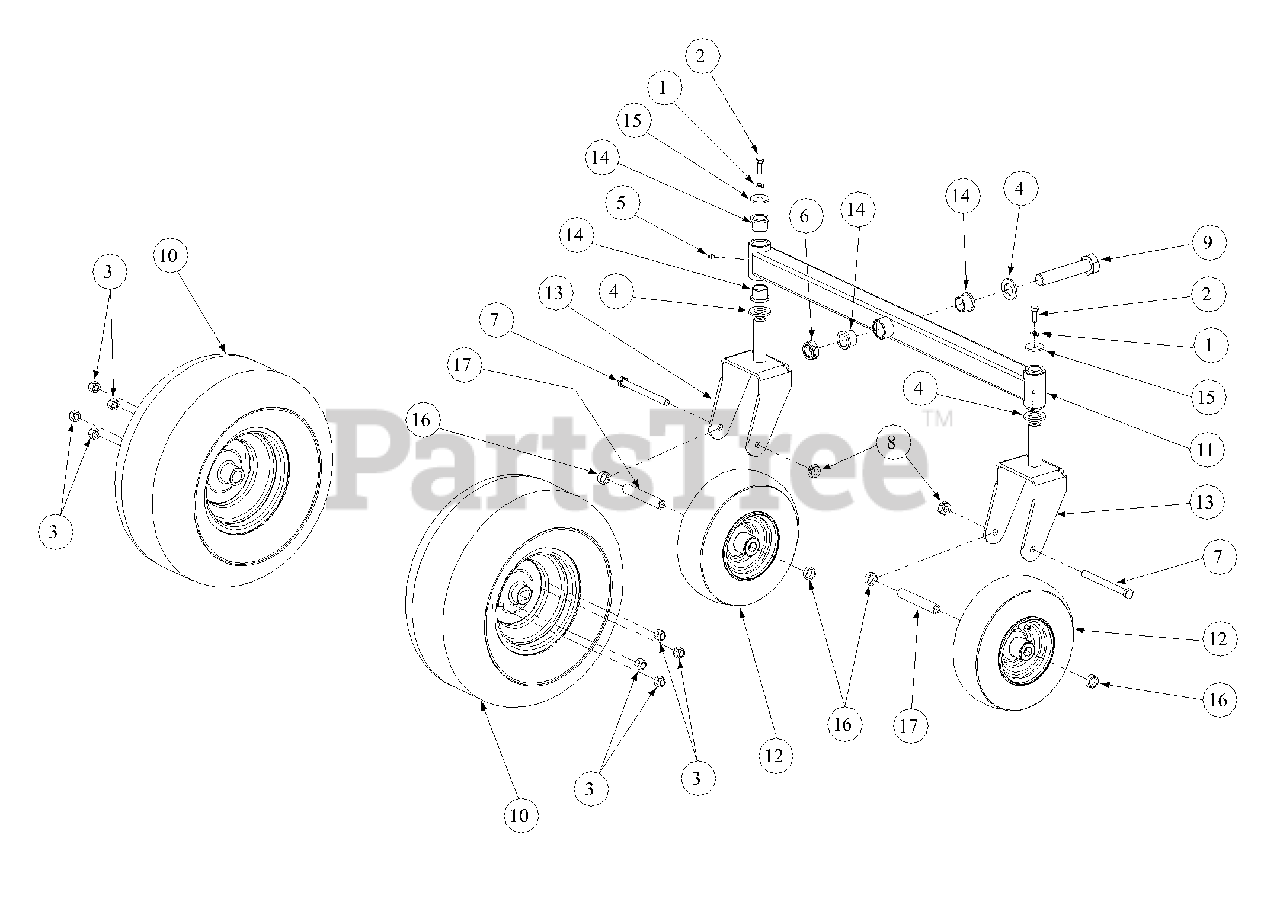

Front Caster & Tire Assembly 42'' Parts Diagram

  • Title

1

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 5

0

3

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$9.49

$

In Stock, Qty 9

0

5

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 01000678

Nut Jam, 1.0-14, Nylon Insert
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01000745

Hex Cap Screw, 1/2-20 x 5.50
(Superseded to 710-0506)

$11.99

$

In Stock, Qty 11

0

8

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

9

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$32.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01009827

Wheel Assembly, 18 x 6.5

$

$

Not available

11

Cub Cadet 01008405

Front Axle Assembly

$

$

Not available

12

Cub Cadet 634-3163

Front Wheel Assembly

$240.99

$

In Stock, only 2 left!

0

12

Cub Cadet 02002093

Tire, Front

Note: Not Shown

$71.99

$

In Stock, Qty 7

0

12

Cub Cadet 02002095

Bushing, Front
(Superseded to 741-3069)

Note: Not Shown

$18.99

$

In Stock, only 1 left!

0

12

Cub Cadet 741-3069

Bearing, Flange

Note: Not Shown

$18.99

$

In Stock, only 1 left!

0

12

Cub Cadet 741-3070

Bearing, Roller
(Superseded to 941-3070)

Note: Not Shown

$57.99

$

In Stock, only 3 left!

0

13

Cub Cadet 01008550

Castor Wheel Mounting Bracket

$

$

Not available

14

Cub Cadet 731-0374

Flange Bearing, 1.0 ID
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

16

Cub Cadet 00023649

Spacer, .790 ID x .347 Lg
(Superseded to 950-0456)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 750-3197A

Wheel Spacer

$22.99

$

In Stock, Qty 8

0
